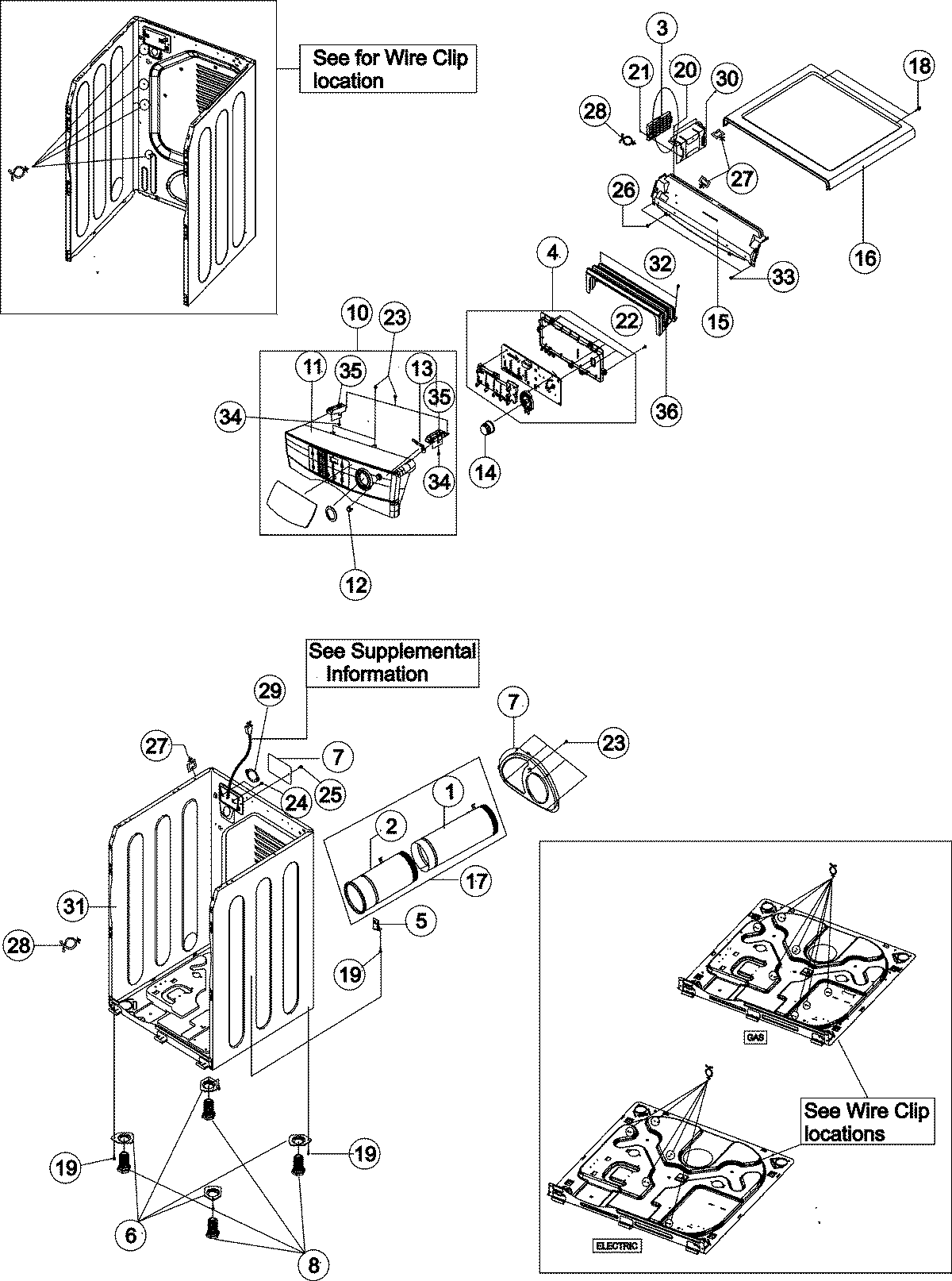

MDG6700AWW 01 – CABINET – CONTROL PANEL

Products

Position	Product
1	Duct, Exhaust (B)
2	Duct, Exhaust (A)
3	MAY 35001153
4	MAY 35001269
5	MAY 35001155
6	MAY 35001156
7	MAY 35001157
8	Foot, Dryer
9	EXHAUST PIPE
10	MAY 35001228
11	MAY 35001229
12	MAY 34001235
13	MAY 34001279
14	MAY 34001233
15	MAY 35001162
16	MAY 35001163
17	MAY 12002640
18	MAY 35001118
19	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
22	MAY 6002-000213
24	MAY 35001108
25	MAY 35001166
26	Screw-Tapping
27	Clip, Harness
28	HOLDER-WIRE (RETAINER/CLIP)
29	Strain-Relief Power Cord
30	MAY 35001168
31	MAY 35001170
32	MAY 35001234
33	MAY 34001211
34	MAY 35001233
35	Bracket, Panel (2)
36	MAY 35001232
