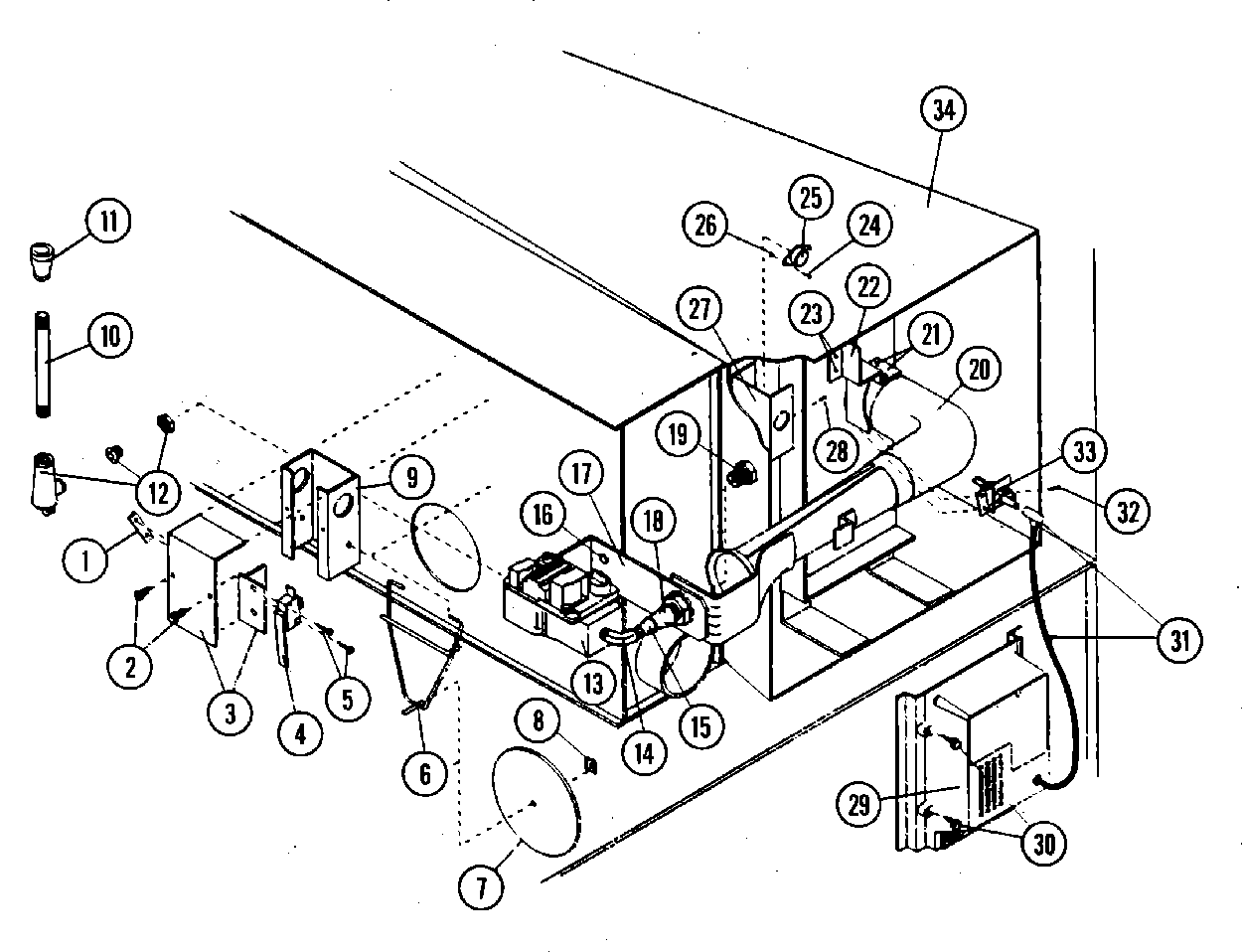

MDG75MNAWW 12 – BURNER ASSEMBLY (PROD. PRIOR 3/1/99)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A154004
003	MAY A802799
004	MAY A122200
005	MAY A150303
006	MAY A105500
007	MAY A319202
008	MAY A154002
009	MAY A802800
009	BOX, SAIL SWITCH ASSY
010	MAY A142812
012	BODY, UNION SHUT-OFF
013	MAY A140411
013	MAY A128927
014	MAY A142506
015	MAY A142707
016	MAY A150415
017	GAS VALVE & TRAIN MTG. BRKT. (1-PIECE)
018	MAY A143000
019	MAY A141152
019	“H“ BURNER ORIFICE (NATURAL GAS) ONLY
020	UPSHOT BURNER W/SHUTTER & SPREADER
021	MAY A150301
022	UPSHOT BURNER ASSY. SUPPORT BRACKET
024	MAY A150001
025	HI-LIMIT (330 DEG.)
026	MAY A151000
027	MAY A318707
028	SCREW, CRIMPTITE
029	MODULE, DSI
030	MAY A150299
031	CONNECTOR ASSEMBLY W/HV WIRE
032	MAY A150413
033	IGNITER/FLAME-PROBE ASSY.
033	DSI IGNITER GAP FEELER GAUGE
034	MAY A804001
034	MAY A809619
034	MAY A809620
034	MAY A874042
