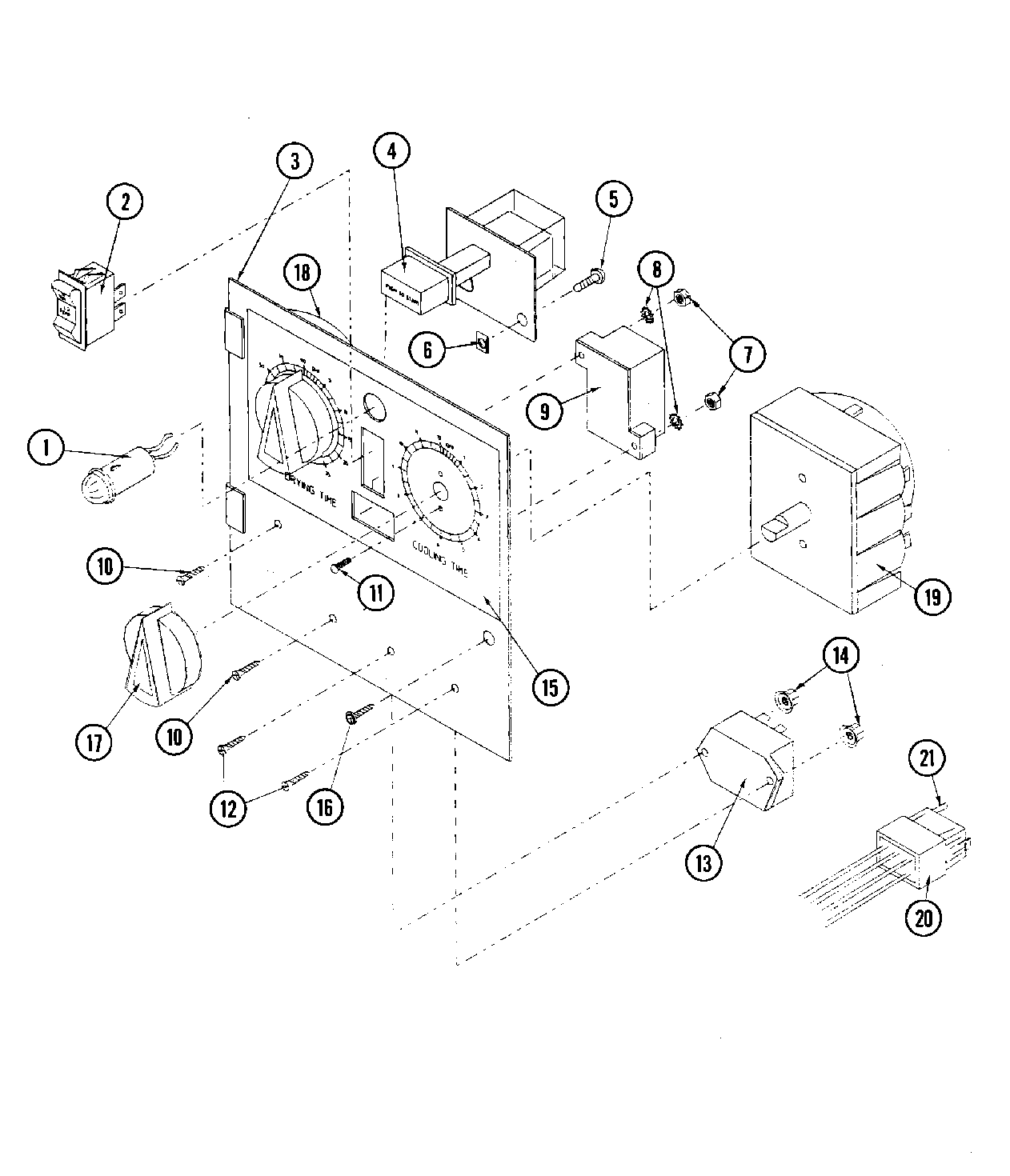

MDG75MNAWW 14 – CONTROL PANEL ASSEMBLY (MNAW)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A123005 |
| 002 | MAY A122400 |
| 003 | CONTROL PANEL ASSEMBLY (INCL. ITEMS No.1 THRU No.21) |
| 003 | MAY A800051 |
| 004 | MAY A131917 |
| 005 | MAY A150207 |
| 006 | MAY A154001 |
| 007 | MAY A152000 |
| 008 | MAY A153010 |
| 009 | MAY A120730 |
| 010 | MAY A150002 |
| 011 | MAY A150110 |
| 012 | MAY A150001 |
| 013 | MAY A131931 |
| 014 | MAY A151000 |
| 015 | MAY A112050 |
| 016 | SCREW, CRIMPTITE |
| 017 | MAY A124103 |
| 018 | MAY A124025 |
| 018 | MAY A824288 |
| 019 | MAY A124030 |
| 020 | MAY A122602 |
| 021 | MAY A122700 |
| 022 | MAY A122801 |
