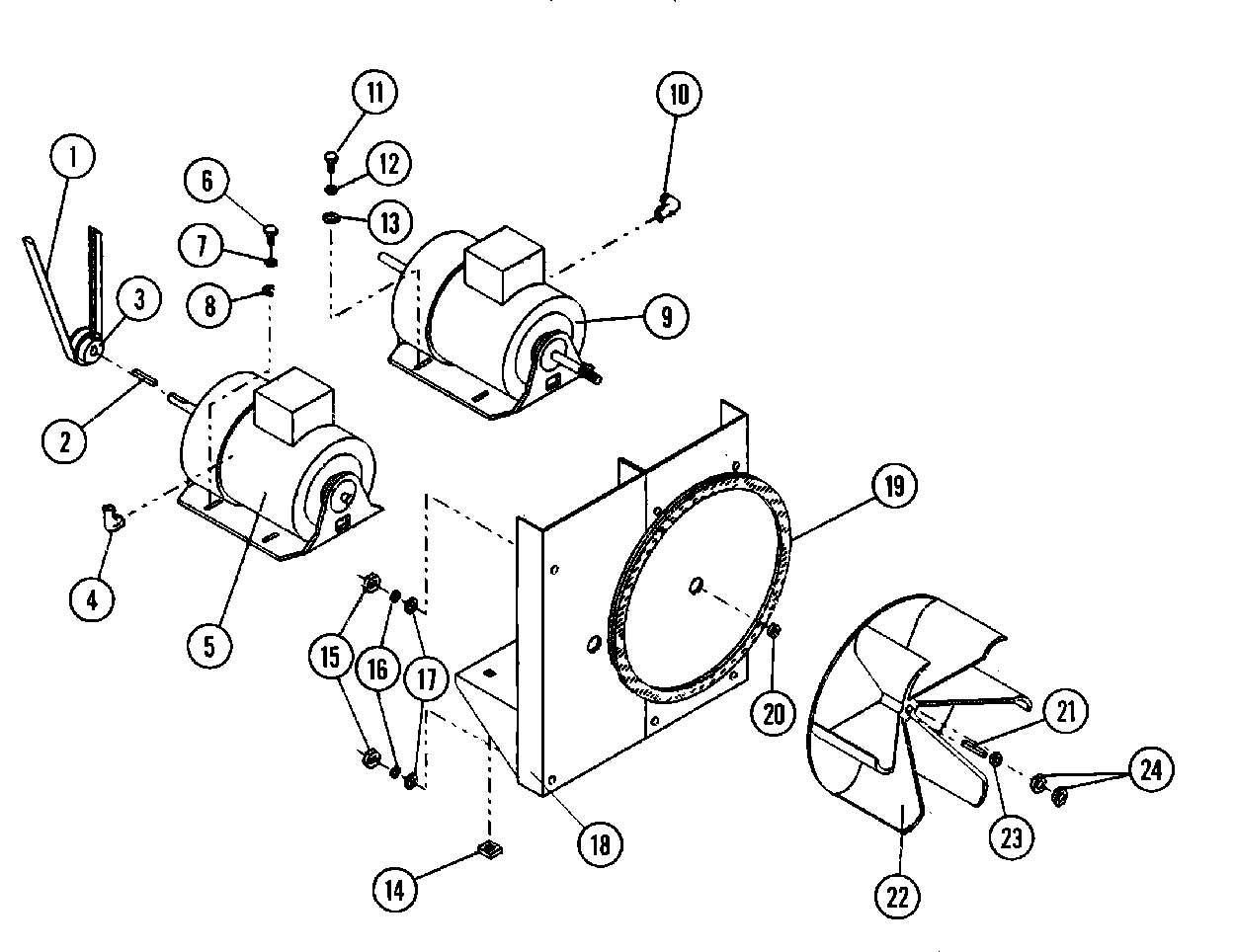

MDG75MNAWW 16 – MOTOR & MOUNT ASSEMBLY (PN2V)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A100114
002	MAY A100701
003	MAY A101130
005	MAY A181003
009	MOTOR (1HP 208-460V/3 50/60HZ)
010	MAY A120200
011	MAY A150501
014	MAY A154000
015	MAY A152004
016	MAY A153002
017	MAY A153001
018	MAY A803952
018	MAY A800920
019	MAY A117604
020	MAY A153051
021	MAY A100714
022	IMPELLER (16“ WITH 3/4“ BORE)
022	MAY A100603
023	WASHER, FLAT (1/2“) QUANTITY AS REQUIRED
024	MAY A152006
