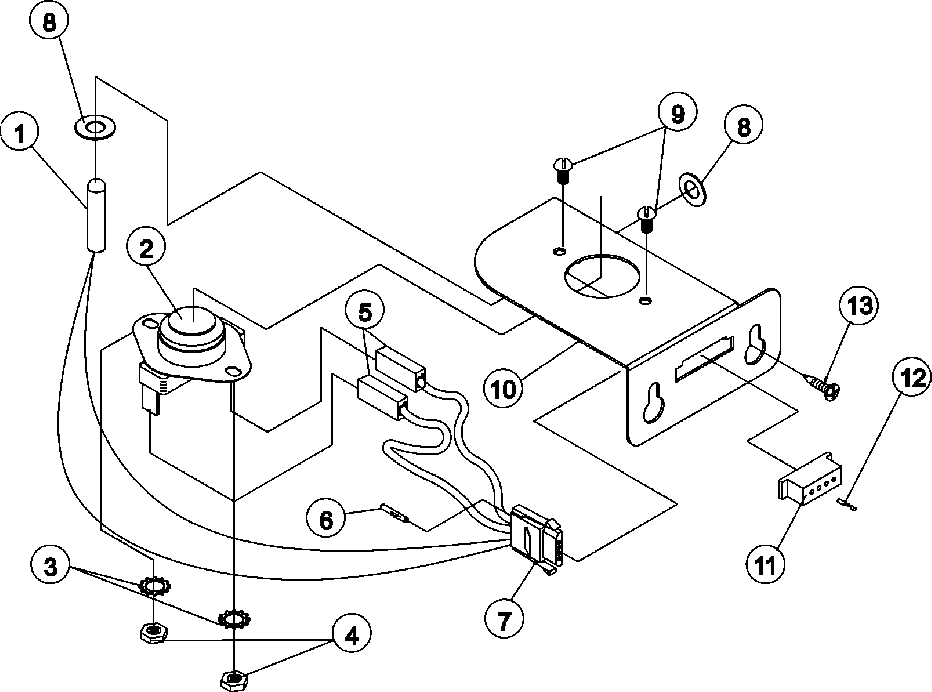

MDG75MNVWQ 09 – SENSOR BRACKET
Products
| Position | Product |
|---|---|
| 000 | ORDER PART FROM AMERICAN DRYER No.508-678-9000 |
| 001 | PROBE ASSY., TEMP. (1/4``) |
| 002 | MAY A130103 |
| 003 | MAY A153010 |
| 004 | MAY A152000 |
| 005 | MAY A121028 |
| 006 | MAY A122701 |
| 007 | MAY A122605 |
| 008 | MAY A154007 |
| 009 | SCREW, PHILL (6-32 X 1/4``)RND |
| 010 | MAY A322062 |
| 010 | MAY A824051 |
| 011 | MAY A122604 |
| 012 | MAY A122700 |
| 013 | MAY A150301 |
