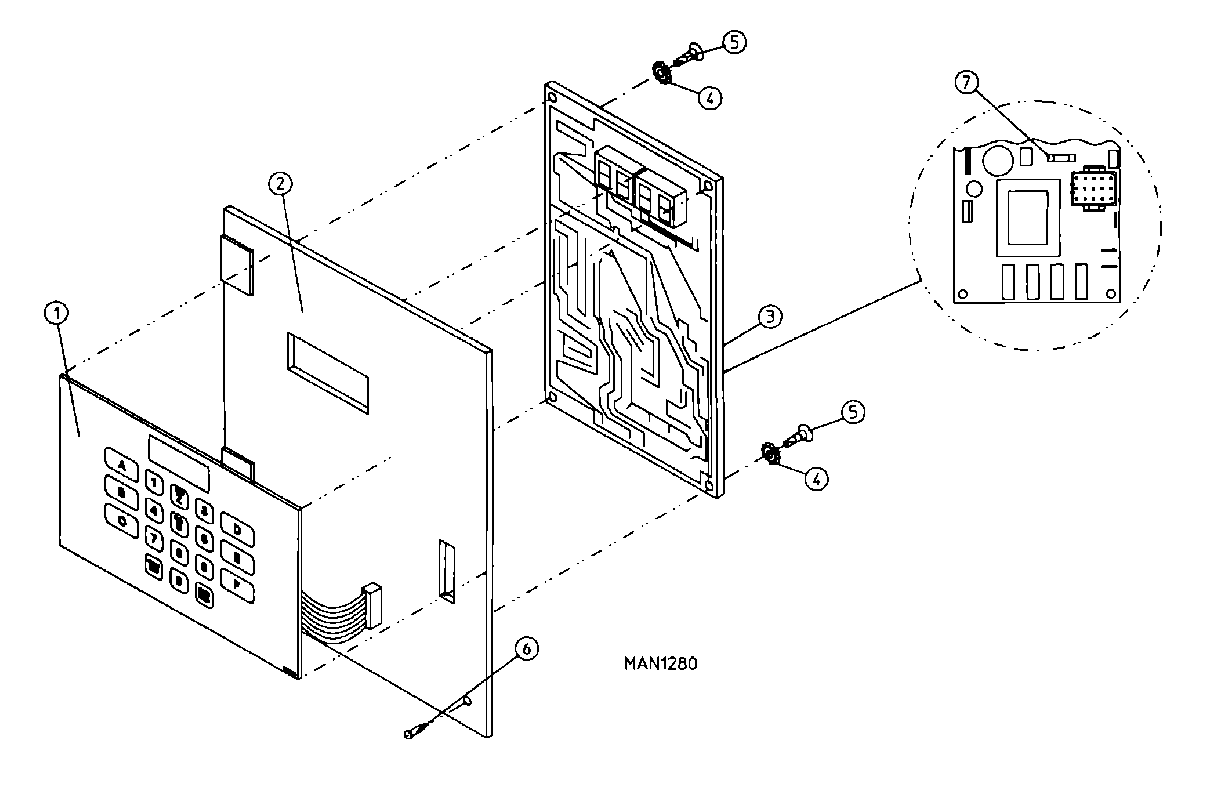

MDG75PN1AW 01 – CONTROL PANEL ASSEMBLY (PN)admin2025-04-26T09:21:33+00:00MDG75PN1AW 01 – CONTROL PANEL ASSEMBLY (PN)
Products
| Position | Product |
|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A112535 |
| 001 | LABELS, OPL (STICK-ON) (ENGLISH ONLY) |
| 001 | LABELS, OPL (STICK-ON) (ENGLISH, SPANISH & HEBREW) |
| 002 | PANEL, CONTROL (PHASE 5, MICRO. W/BATTERY |
| 002 | PANEL, CONTROL (PHASE 5, MICROPROCESSOR) |
| 003 | CONTROLLER (PHASE 5 OPL NON-REVERSING) |
| 003 | CONTROLLER, REVERSING |
| 003 | HARNESS, CLIP (9V BATTERY) |
| 004 | MAY A153010 |
| 005 | SCREW, PHILL (6-32 X 1/4``)RND |
| 006 | SCREW, CRIMPTITE |
| 007 | FUSE, 1/8 AMP (SLO BLO) |
| 008 | MAY A801207 |
| 008 | MICROPROCESSOR, PHASE 5 (OPL) (NON-REVERSING) |
