MDG75PN1AW 07 – CONTROL DOOR ASY. (PROD. PRIOR 7/13/98)

Products

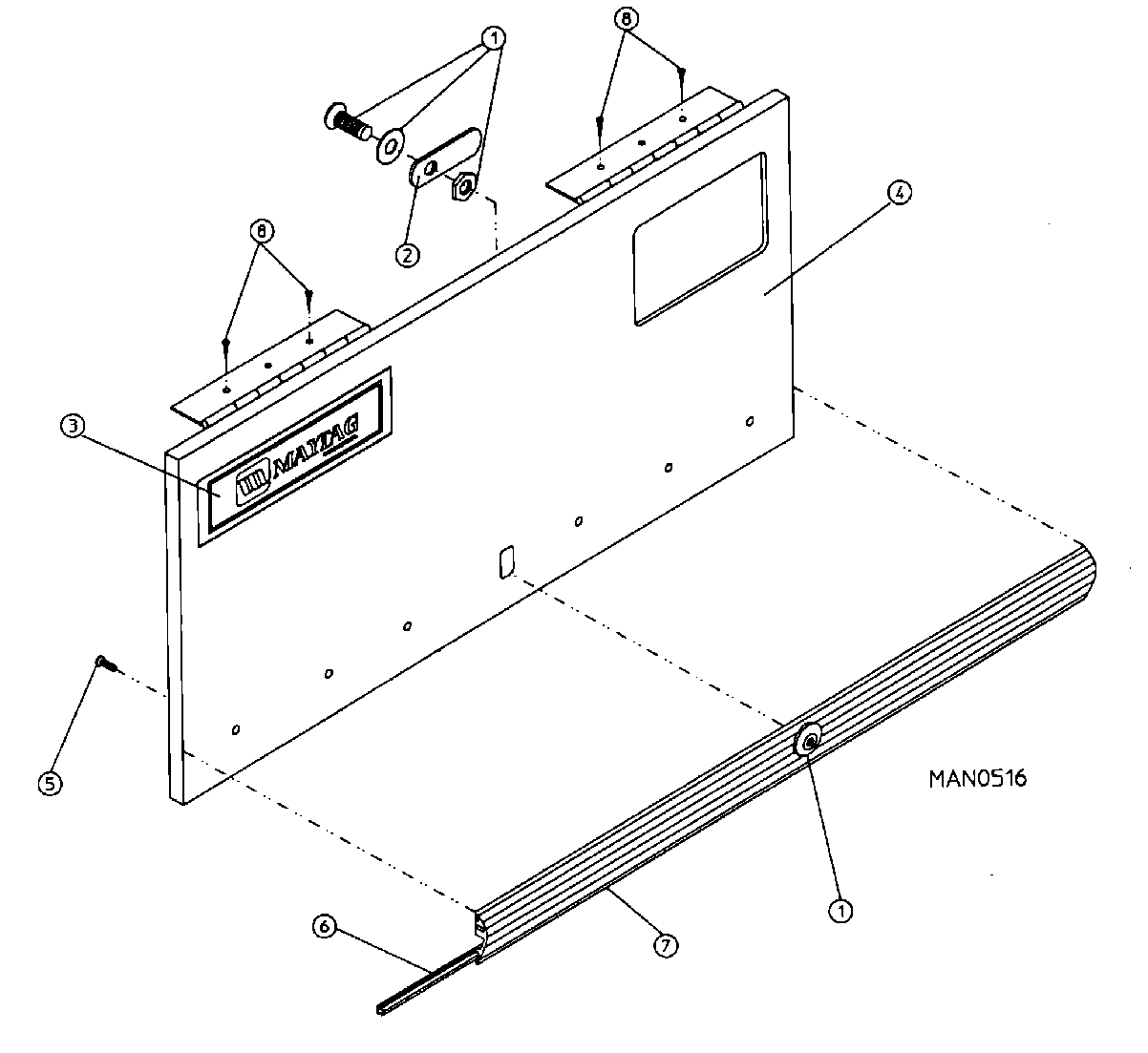

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A160017
002MAY A160016
003MAY A112343
003MAY A870011
004CONTROL DOOR ASSY. (INCL. ILLUS. No.4-7)(SPECIFY
005TOP TRIM STRIP W/LOCK HOLE (38-1/4“ LENGTH)
006GASKET, TRIM BUMPER (SOLD IN FEET)
007MAY A150201
008SCREW, CRIMPTITE
009CATCH, CONTROL DOOR ROD
010MAY A102601
011MAY A102502
