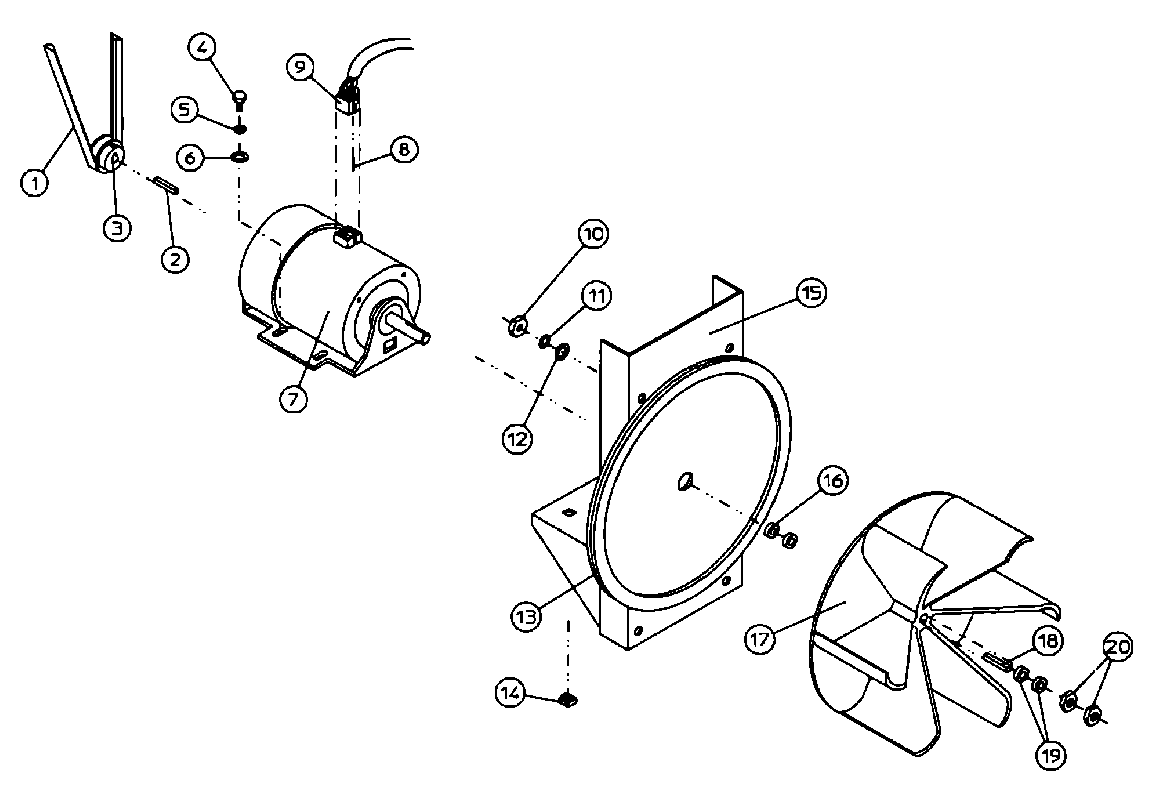

MDG75PN1AW 13 – MOTOR & MOUNT ASSEMBLY (MNAW/PN1A)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	V-BELT (4L-620)
002	MAY A100701
003	MAY A101133
004	MAY A150501
007	MOTOR (1HP 208-460V/3 50/60HZ)
007	MOTOR (120/230V 60HZ) (MODELS MFD PRIOR 09/14/92)
007	MOTOR W/PLUG (1HP, 60HZ, 10 T.E.F.C.)
007	MAY A120200
008	MAY A122801
008	MAY A122701
009	MAY A137030
010	MAY A152004
011	MAY A153002
012	MAY A153001
013	MAY A117604
014	MAY A154000
015	MAY A800919
015	MAY A803955
015	MAY A803992
016	MAY A153051
017	IMPELLER (16“ WITH 3/4“ BORE)
017	MAY A100603
018	MAY A100714
019	WASHER, FLAT (1/2“) QUANTITY AS REQUIRED
020	MAY A152006
