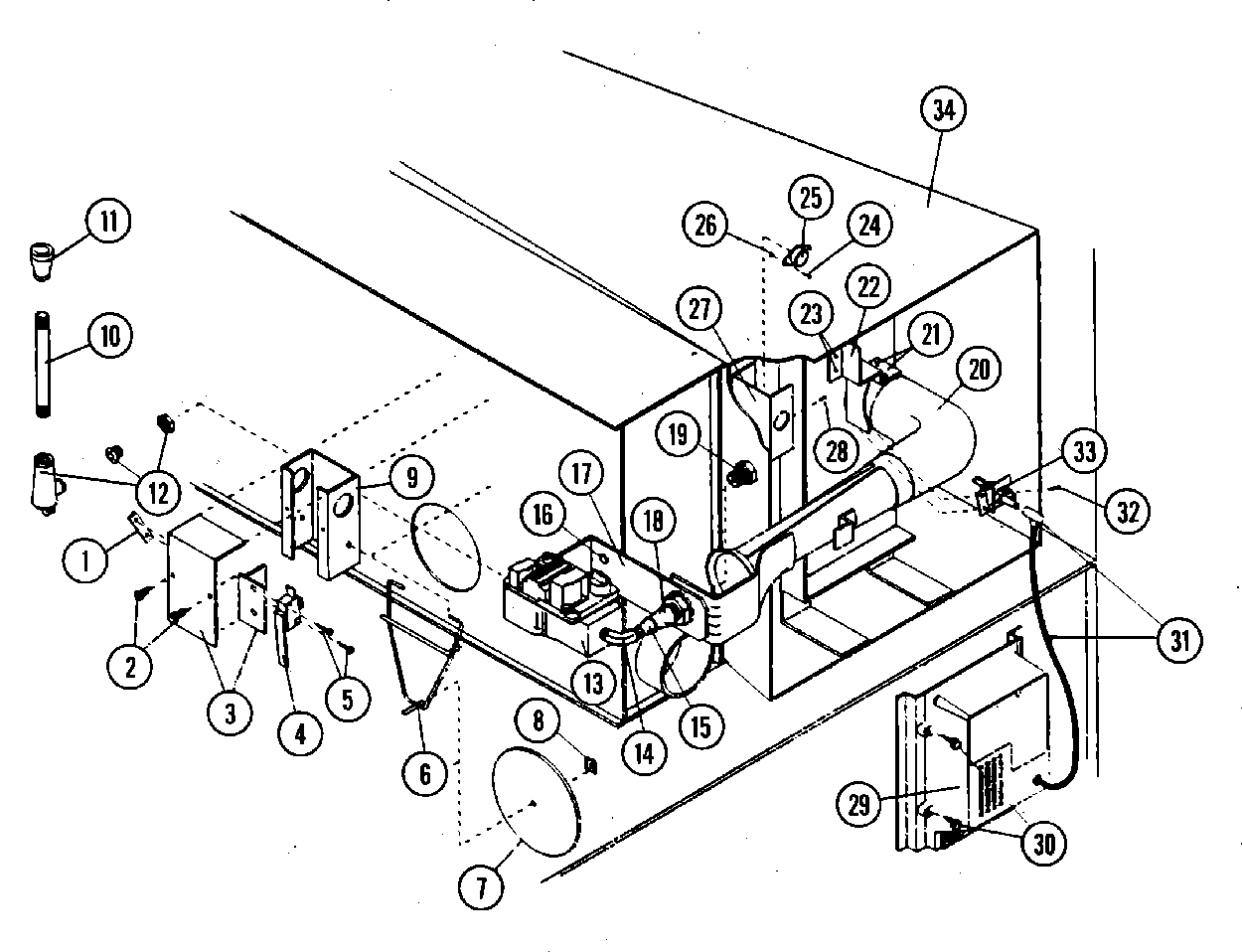

MDG75PN1AW 15 – BURNER ASSEMBLY (PROD. PRIOR 3/1/99)

MDG75PN1AW 15 – BURNER ASSEMBLY (PROD. PRIOR 3/1/99)

Written by

in

MDG75PN1AW 15 – BURNER ASSEMBLY (PROD. PRIOR 3/1/99)

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A154004
003MAY A802799
004MAY A122200
005MAY A150303
006MAY A105500
007MAY A319202
008MAY A154002
009MAY A802800
009BOX, SAIL SWITCH ASSY
010MAY A142812
012BODY, UNION SHUT-OFF
013MAY A140411
013MAY A128927
014MAY A142506
015MAY A142707
016MAY A150415
017GAS VALVE & TRAIN MTG. BRKT. (1-PIECE)
018MAY A143000
019MAY A141152
019“H“ BURNER ORIFICE (NATURAL GAS) ONLY
020UPSHOT BURNER W/SHUTTER & SPREADER
021MAY A150301
022UPSHOT BURNER ASSY. SUPPORT BRACKET
024MAY A150001
025HI-LIMIT (330 DEG.)
026MAY A151000
027MAY A318707
028SCREW, CRIMPTITE
029MODULE, DSI
030MAY A150299
031CONNECTOR ASSEMBLY W/HV WIRE
032MAY A150413
033IGNITER/FLAME-PROBE ASSY.
033DSI IGNITER GAP FEELER GAUGE
034MAY A804001
034MAY A809619
034MAY A809620
034MAY A874042
