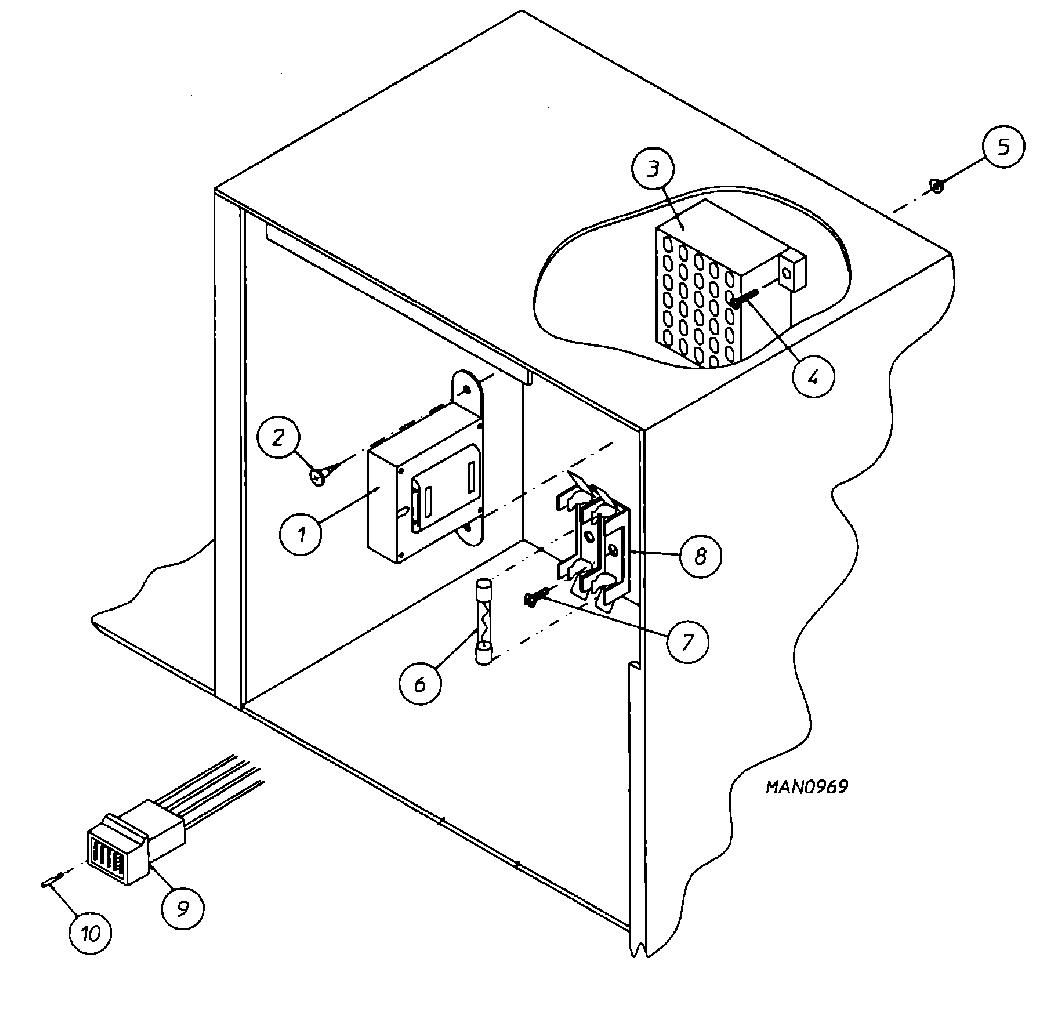

MDG75PN2VW 02 – CONTROL BOX ASSEMBLY (PN)
Written by
in
MDG75PN2VW 02 – CONTROL BOX ASSEMBLY (PN)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A141403 |
| 002 | MAY A150300 |
| 003 | MAY A120715 |
| 004 | MAY A150002 |
| 005 | MAY A151000 |
| 006 | MAY A136057 |
| 007 | MAY A150301 |
| 008 | MAY A136008 |
| 009 | CONNECTOR, MICROPROCESSOR (15 PIN) |
| 010 | SOCKETS (AS REQUIRED) |
| 011 | MAY A122800 |
