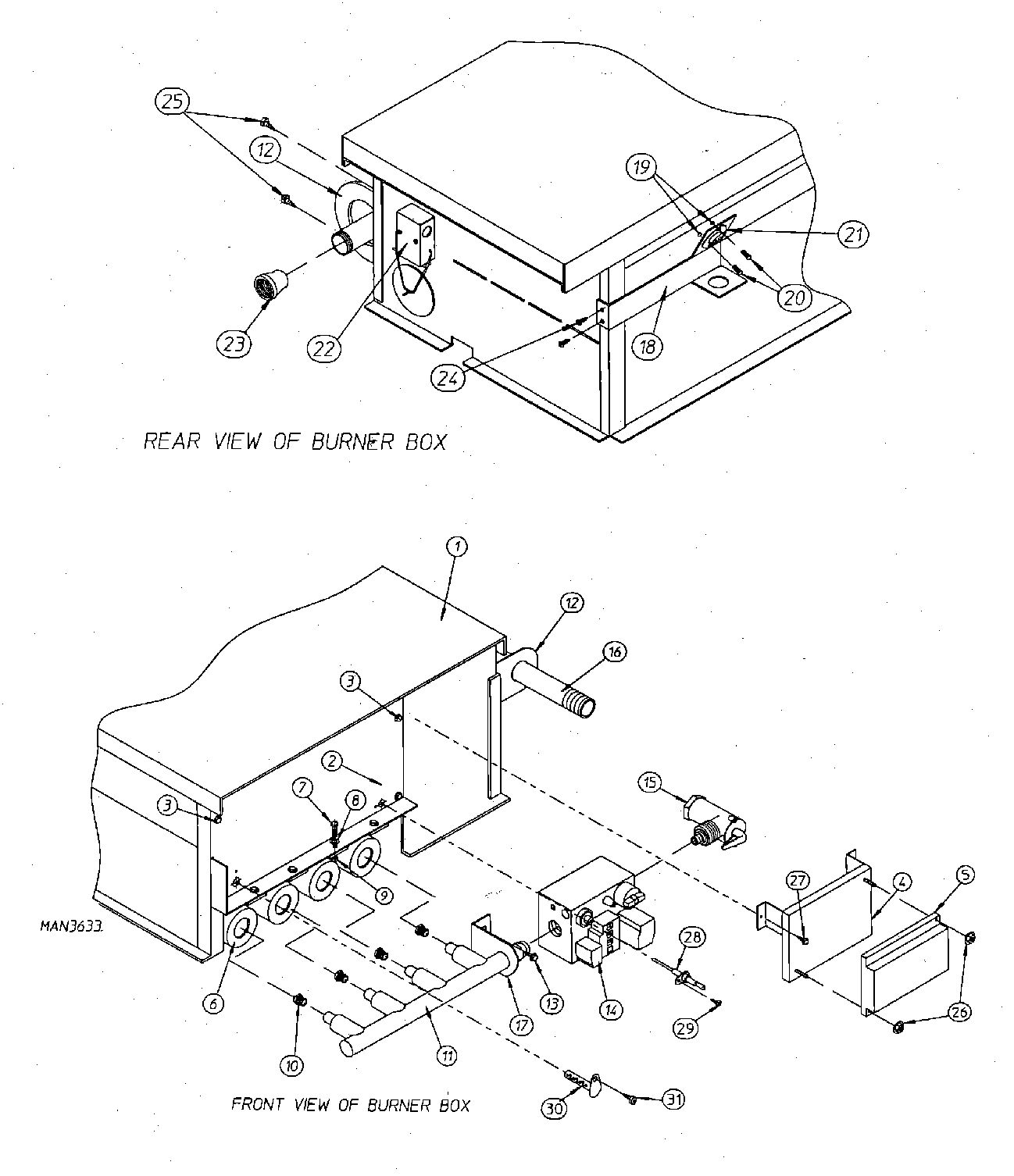

MDG75PN2VW 17 – BURNER ASSEMBLY (PROD. 3/2/99-2/28/00)
Written by
in
MDG75PN2VW 17 – BURNER ASSEMBLY (PROD. 3/2/99-2/28/00)
Products
| Position | Product |
|---|---|
| 001 | MAY A881231 |
| 001 | MAY A881781 |
| 001 | MAY A881784 |
| 002 | MAY A318041 |
| 004 | MAY A810029 |
| 005 | MAY A881797 |
| 006 | MAY A141105 |
| 007 | MAY A150103 |
| 008 | MAY A153000 |
| 010 | ORIFICE, BURNER (NAT) |
| 010 | MAY A140804 |
| 011 | MAY A141210 |
| 012 | MAY A318700 |
| 013 | MAY A150300 |
| 014 | MAY A140411 |
| 014 | MAY A128927 |
| 014 | VALVE,GAS 1/2“ 24 VAC,(LP) |
| 015 | BODY, UNION SHUT-OFF |
| 016 | MAY A142809 |
| 017 | MAY A323737 |
| 018 | MAY A319704 |
| 019 | MAY A151000 |
| 020 | MAY A150001 |
| 021 | HI-LIMIT (330 DEG.) |
| 022 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 023 | MAY A143000 |
| 026 | MAY A151001 |
| 028 | MAY A128921 |
| 029 | MAY A150301 |
| 030 | MAY A881597 |
| 031 | SCREW, CRIMPTITE |
