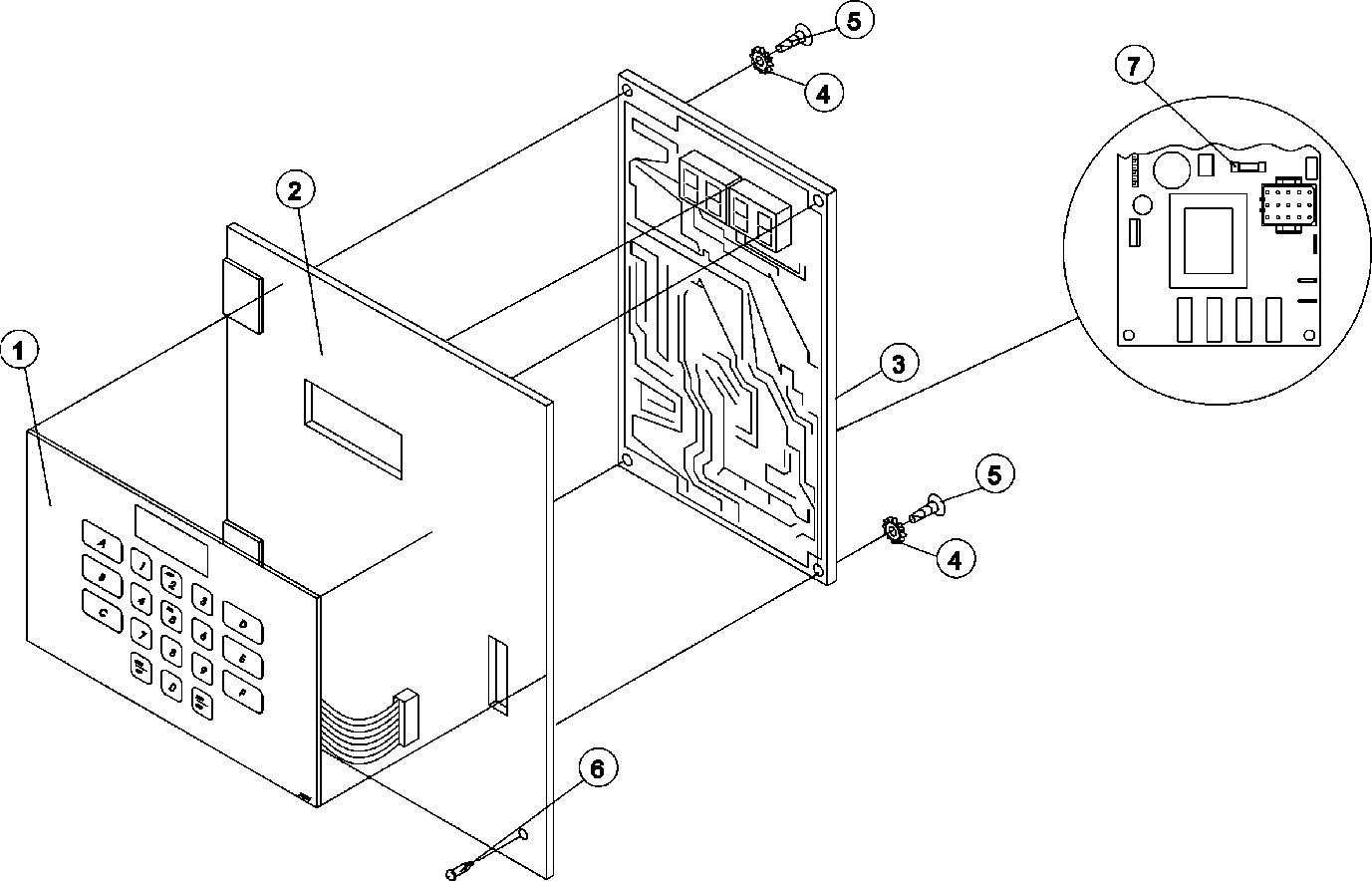

MDG75PNVVQ 02 – CONTROL PANEL (MICROPROCESSOR)

Written by

Products

Position	Product
000	ORDER PART FROM AMERICAN DRYER No.508-678-9000
001	MAY A112535
002	MICROPROCESSOR, PHASE 5 (OPL) (NON-REVERSING)
002	PANEL, CONTROL (PHASE 5, MICROPROCESSOR)
003	CONTROLLER (PHASE 5 OPL NON-REVERSING)
004	MAY A153010
005	SCREW, PHILL (6-32 X 1/4“)RND
006	SCREW, CRIMPTITE
007	FUSE, 1/8 AMP (SLO BLO)
