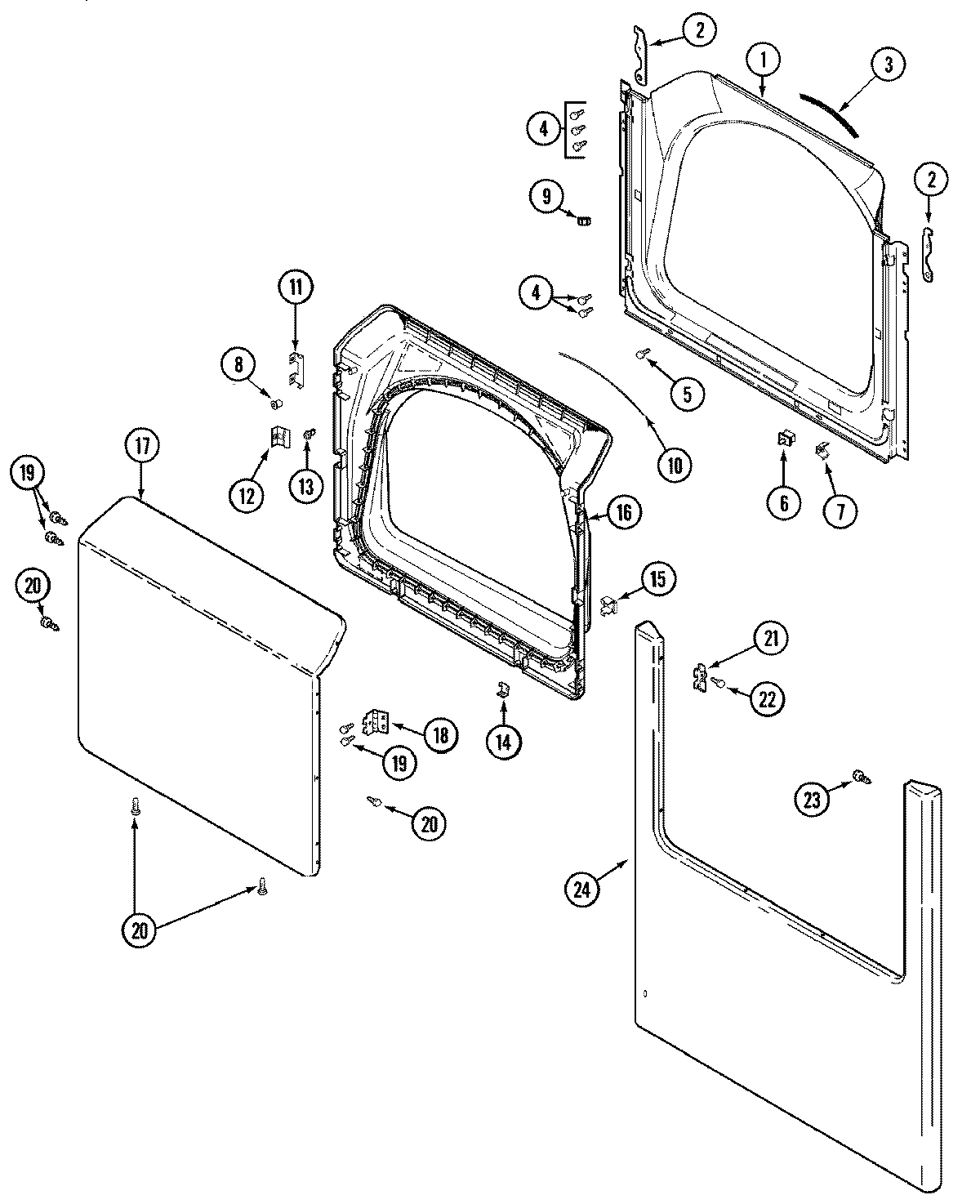

| 1 | MAY 33001778 |
| 2 | MAY 33002597 |
| 4 | W11573574 Whirlpool Screw |
| 5 | MAY 33001768 |
| 6 | W10169313 Whirlpool Door Switch Kit |
| 7 | MAY 33001760 |
| 8 | MAY 33001771 |
| 9 | MAY Y304578 |
| 9 | 306436 Whirlpool Washer Dryer Door Catch and Plastic Strike |
| 10 | WP33002094 Whirlpool Door Seal |
| 11 | MAY 22002038 |
| 12 | WP33001793 Whirlpool Bracket Spring |
| 13 | MAY 33001761 |
| 15 | MAY 33001763 |
| 16 | MAY 33001750 |
| 16 | SCREW |
| 16 | MAY 22002039 |
| 17 | WP22001817 Whirlpool Sheet |
| 17 | MAY 33002786 |
| 18 | WP33001759 Whirlpool Door Hinge |
| 19 | WP98006631 Whirlpool Screw |
| 20 | MAY 22002063 |
| 21 | WP33001764 Whirlpool Cover |
| 22 | WP33001787 Whirlpool Screw |
| 23 | WP22002012 Whirlpool Screw Assembly |
| 24 | PANEL, FRONT (BISQ) |
