MDG8416AWA 03 – CONTROL PANEL – Aparts

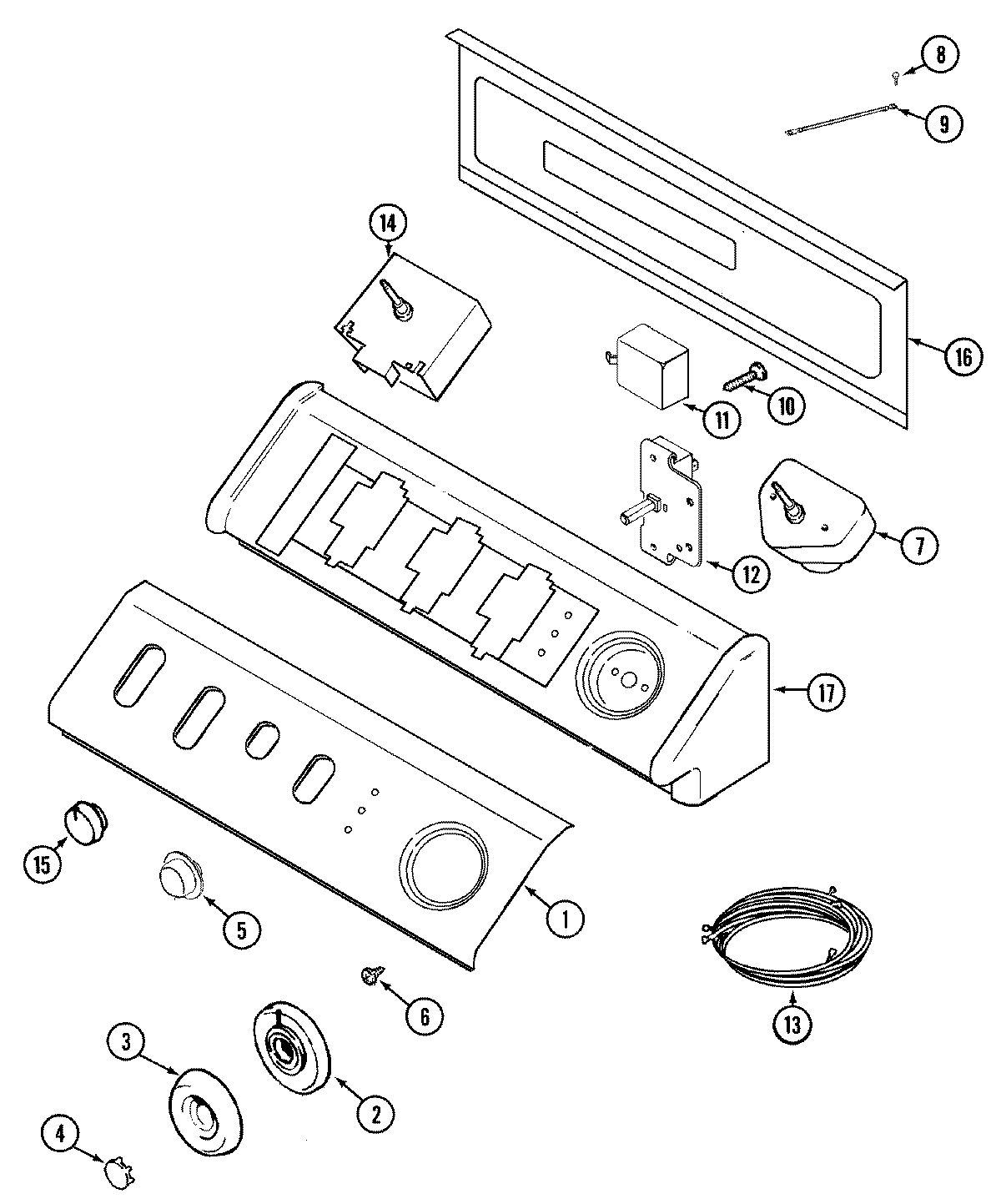

MDG8416AWA 03 – CONTROL PANEL

Products

Position	Product
1	MAY 33001914
1	MAY Y22002339
2	WP33002346 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	MAY 22001665
5	MAY 33001620
6	WP90767 Whirlpool Screw
7	WP33001632 Whirlpool Timer Assembly
8	MAY 210186
9	MAY 33001859
11	MAY 33001623
12	MAY 33001862
13	MAY 33001912
14	MAY 33001643
15	MAY 22001667
16	MAY 216423
16	MAY 33001806
17	MAY 22002286
18	MAY 33001902
