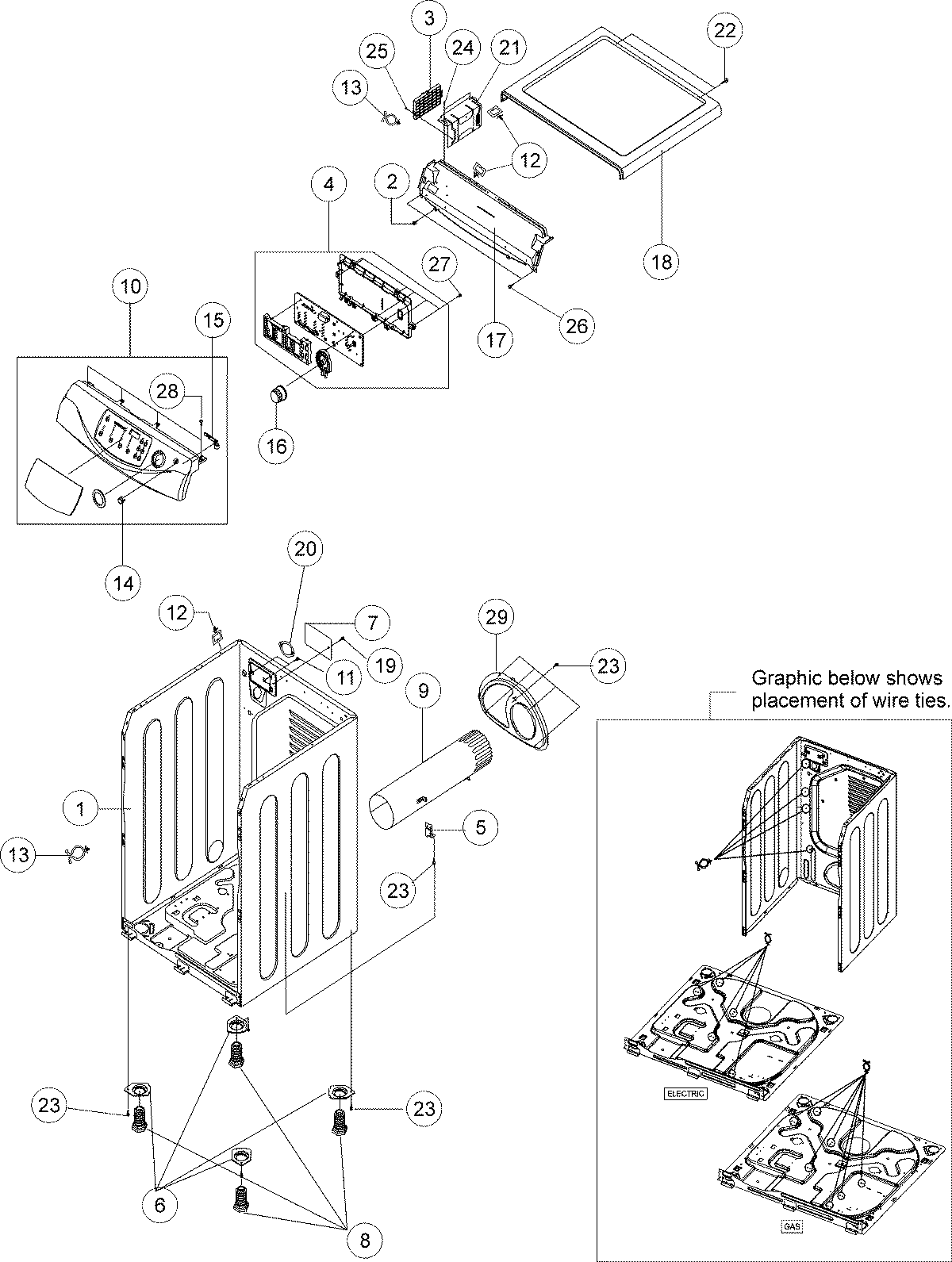

MDG9700AWM 02 – CONTROL PANEL – CABINET

Products

Position	Product
1	MAY 35001196
2	Screw-Tapping
3	MAY 35001153
4	MAY 35001154
5	MAY 35001155
6	MAY 35001156
7	MAY 34001069
8	Foot, Dryer
9	EXHAUST PIPE
10	MAY 35001198
12	Clip, Harness
13	HOLDER-WIRE (RETAINER/CLIP)
14	MAY 34001385
15	MAY 34001279
16	MAY 34001387
17	MAY 35001162
18	MAY 34001390
20	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Strain-Relief Power Cord
21	MAY 35001168
22	MAY 35001118
23	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
26	MAY 35001166
27	MAY 6002-000213
28	Screw-Tapping (5)
29	MAY 35001201
