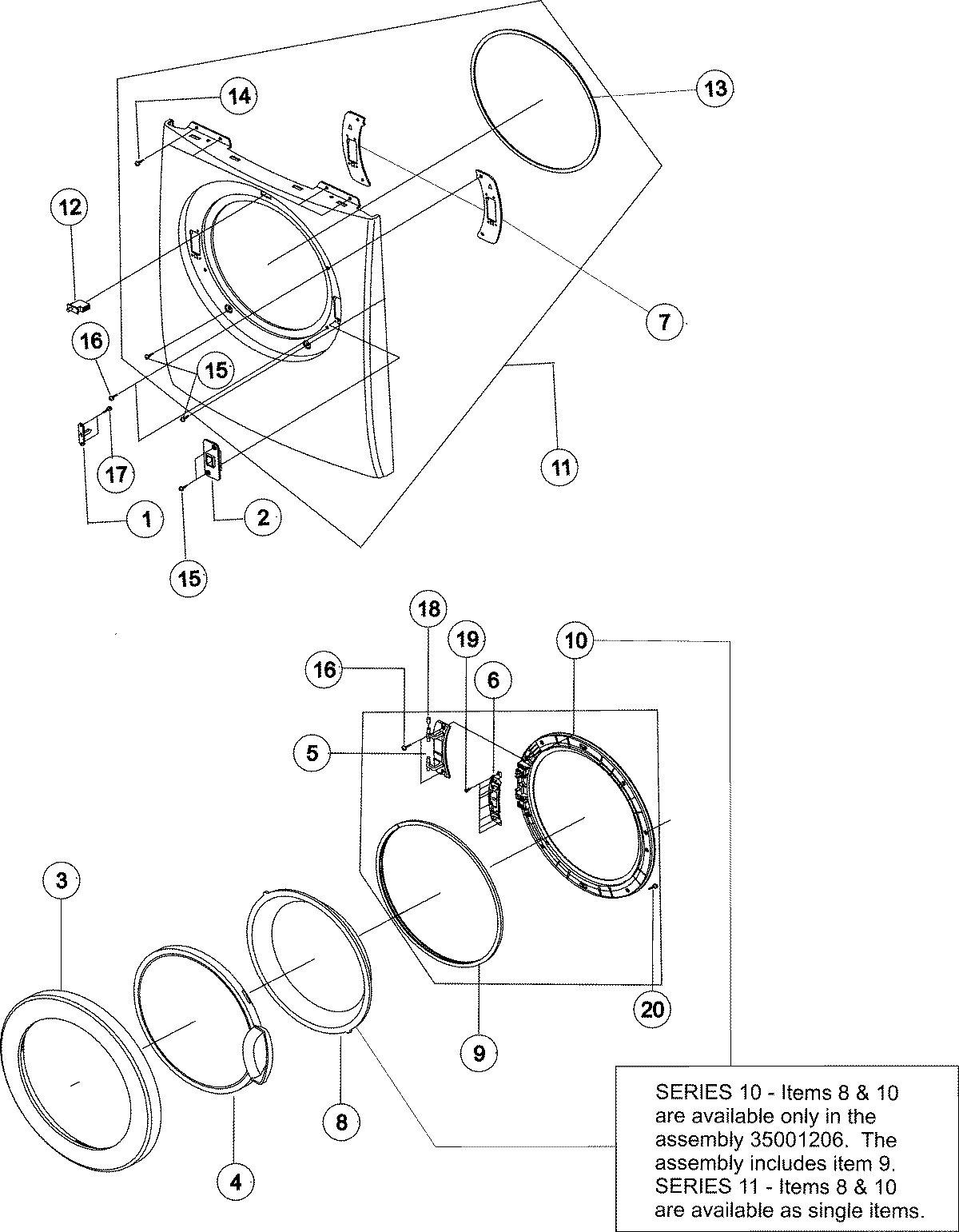

MDG9700AWW 04 – FRONT – DOOR – Aparts

MDG9700AWW 04 – FRONT – DOOR

Products

Position	Product
1	Catch-Door
2	MAY 35001112
3	MAY 35001113
4	MAY 35001114
5	MAY 35001115
6	MAY 35001120
7	BRACKET-HINGE
8	Window
9	MAY 35001122
10	MAY 35001206
10	MAY 35001183
11	MAY 35001124
12	MAY 35001125
13	MAY 35001128
14	MAY 34001211
15	Screw-Tapping (4)
16	MAY 35001126
17	MAY 6002-001204
18	MAY 35001127
19	MAY 6002-000213
20	MAY 6002-000525
