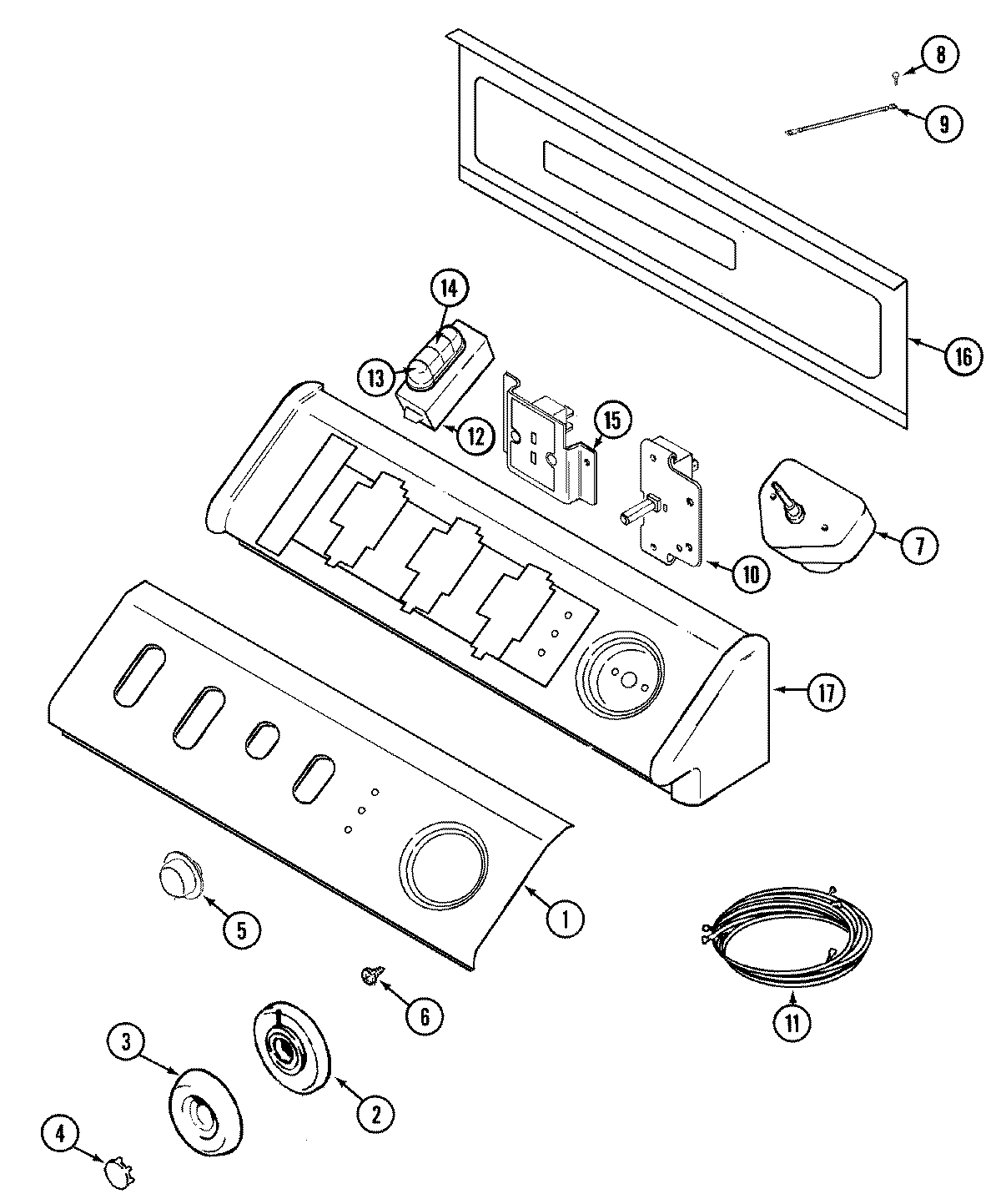

MDG9706AWW 03 – CONTROL PANEL

MDG9706AWW 03 – CONTROL PANEL

Written by

in

MDG9706AWW 03 – CONTROL PANEL

Products

PositionProduct
1MAY 33001930
1MAY Y22002339
2WP33001621 Whirlpool Dial Knob
3WP22001659 Whirlpool Timer Knob
4WP22001664 Whirlpool Timer Knob
5MAY 33001619
6WP90767 Whirlpool Screw
7WP33001932 Whirlpool Timer Assembly
8MAY 210186
9MAY 33001859
10MAY 33001861
11MAY 33001936
12MAY 33001653
13MAY 22001788
14MAY 22001789
15MAY 33001661
16MAY 216423
16MAY 33001806
17MAY 22002285
18MAY 33001934
