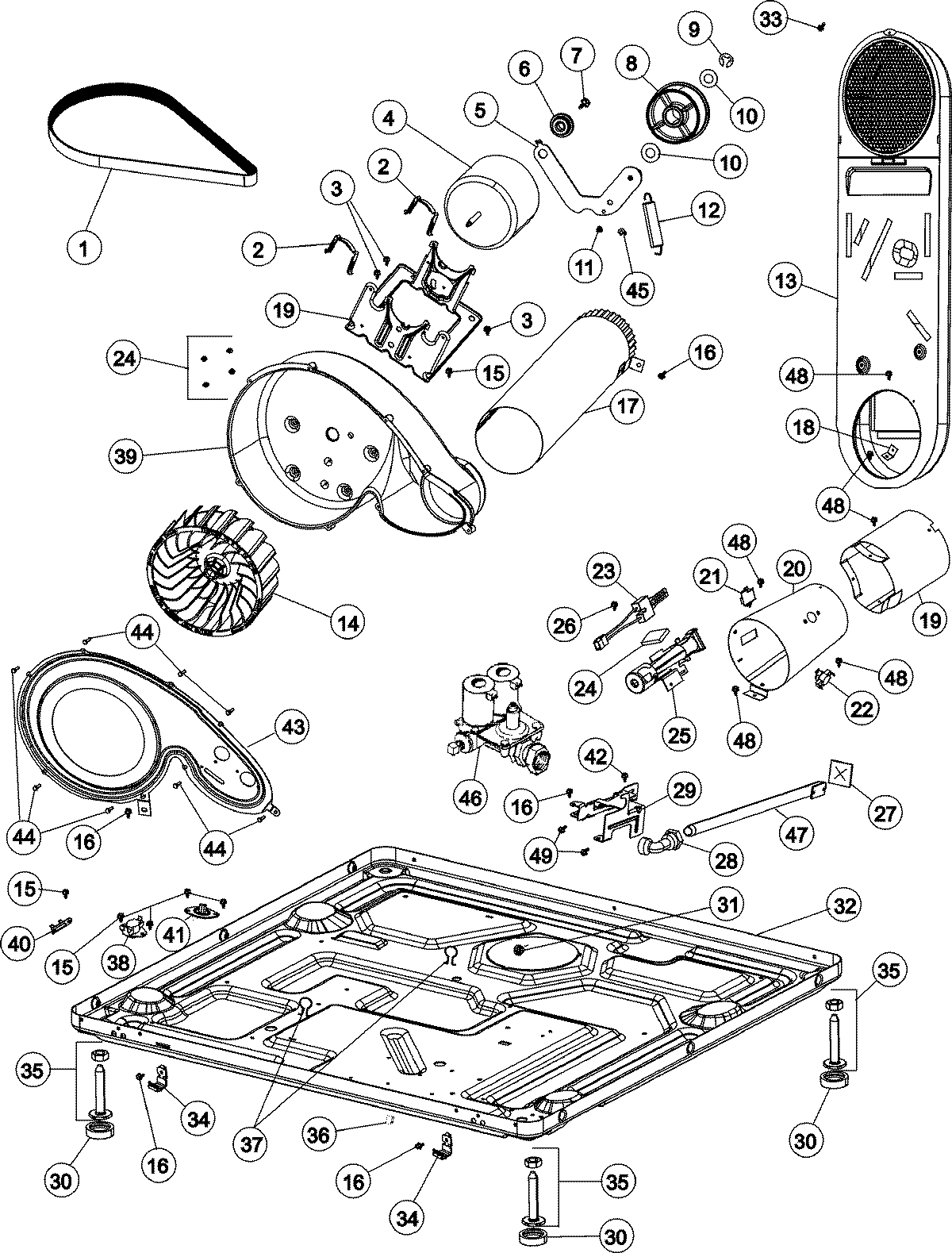

MDG9800AWW 01 – BASE (GAS)

Products

Position	Product
1	WP33002535 Whirlpool Dryer Drive Belt
2	WPY015825 Whirlpool Motor Clip
3	MAY Y313561
4	WP33002795 Whirlpool Drive Motor
5	WP6-3705180 Whirlpool Idler Pulley Lever
6	WP315772 Whirlpool Sleeve
7	WPY014874 Whirlpool Screw
8	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
9	WP354987 Whirlpool C-Clip
10	MAY Y312527
11	MAY 33002218
12	33002459 Whirlpool Idler Spring
13	MAY 33002765
14	WP33002797 Whirlpool Wheel
15	WP489128 Whirlpool Refrigerator Screw
16	SCREW, WATER VALVE BRACKET
17	MAY 33001800
18	MAY Y312890
19	MAY Y303841
20	MAY 33001835
21	WP338906 Whirlpool Dryer Gas Sensor
22	WP303395 Whirlpool Thermostat
23	IGNITER ASSY
24	MAY 33002932
25	WP33002793 Whirlpool Burner Assembly
26	MAY 304971
27	MAY 33001702
28	3406051 Whirlpool Elbow
29	MAY 33001834
30	WPY314137 Whirlpool Rubber Foot
31	MAY 33002157
32	MAY 33002465
33	MAY 210932
34	MAY 22002239
35	W10176519 Whirlpool Leveling Feet
36	MAY 22002244
37	MAY 410490
38	WP694674 Whirlpool Cycling Thermostat
39	WP33001789 Whirlpool Blower Housing Assembly
40	WP33001762 Whirlpool Dryer Thermal Fuse
41	MAY 307208
42	MAY Y310632
43	MAY 33002711
44	WP3400065 Whirlpool Refrigerator Screw
45	MAY 33002461
46	WP306176 Whirlpool Gas Valve
47	MAY 33001735
48	WP90767 Whirlpool Screw
49	MAY 314082
