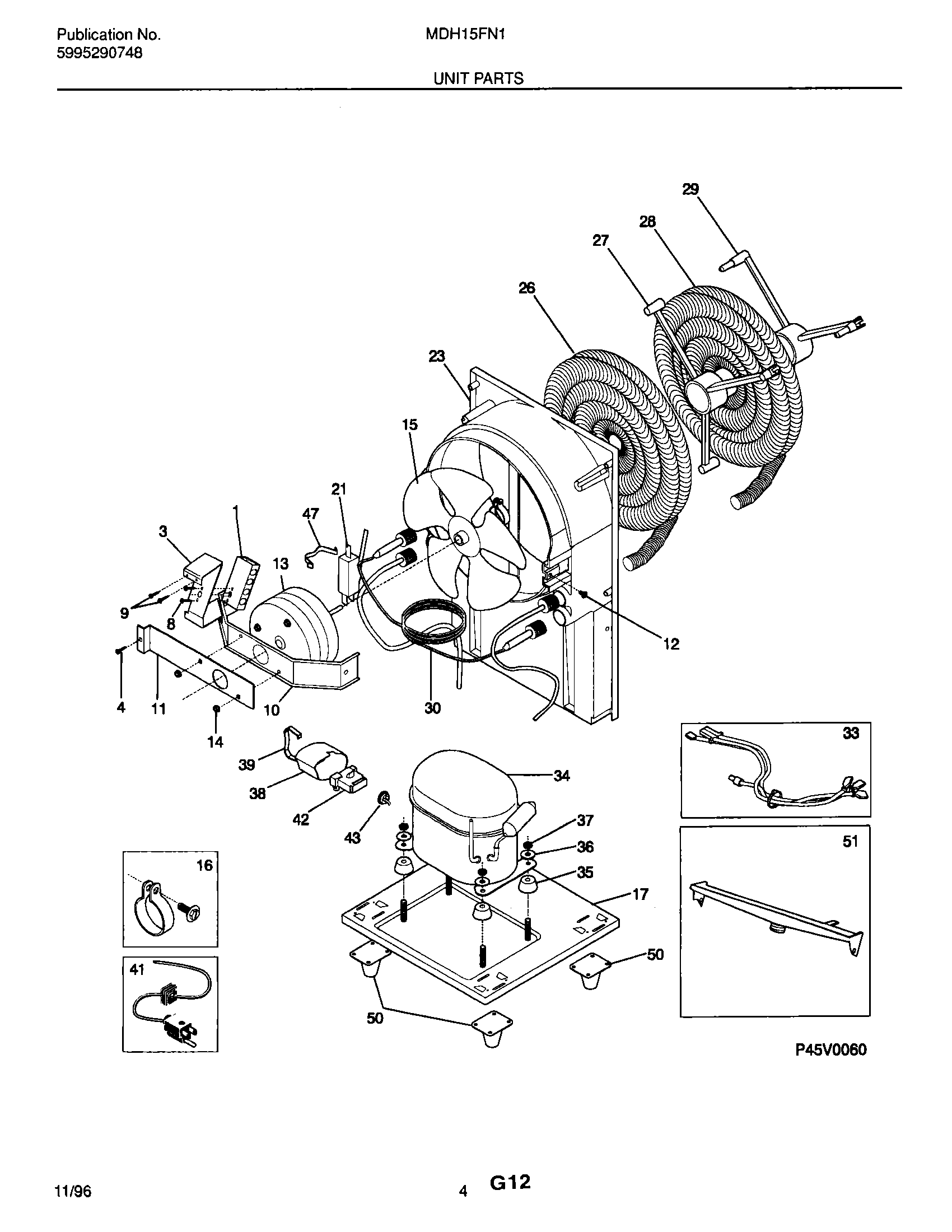

MDH15FN1 05 – UNIT PARTS

Products

Position	Product
1	WCI 327301101
3	BRACKET-CONTROL
4	134178901 Frigidaire Screw
8	3201861 Frigidaire Screw
9	WCI 5303304774
10	WCI 5303296828
11	WCI 5303296829
12	WCI 3002801
13	WCI 5303289838
14	WCI 08007481
15	FAN BLADE
16	WCI 5303303699
17	WCI 5303304132
21	WCI 5308016437
23	WCI 5303303501
26	WCI 5303307379
27	CLAMP-EVAPORATOR INNER
28	WCI 3017954
29	CLAMP-EVAPORATOR OUTER
30	CAPILLARY TUBE-CUT TO 25“
33	WCI 5303289837
34	WCI 5303307538
35	WCI 5303001777
36	WASHER-COMPRESSOR
37	NUT-COMPRESSOR
38	WCI 5303273999
39	5303006412 Frigidaire Refrigerator Cover Mounting Strap
41	CORD-POWER
42	216594300 Frigidaire Refrigerator Starter
43	WCI 5303307530
47	WCI 327100001
50	WCI 08016447
51	WCI 5303017497
