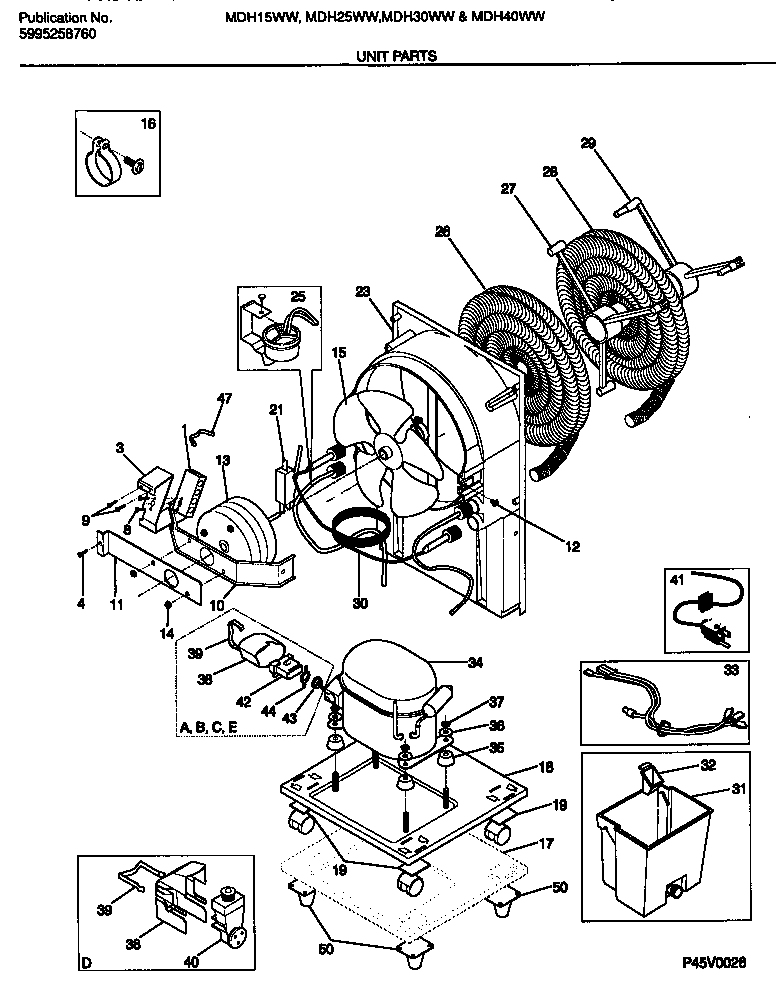

MDH30WW1 03 – UNIT

MDH30WW1 03 – UNIT

Written by

in

MDH30WW1 03 – UNIT

Products

Position	Product
1	WCI 5303296823
3	BRACKET-CONTROL
4	134178901 Frigidaire Screw
8	WCI 5303007620
9	3201861 Frigidaire Screw
10	WCI 5303296828
11	WCI 5303296829
12	WCI 3002801
13	WCI 5303289838
14	WCI 08007481
15	FAN BLADE
16	WCI 5303303699
18	WCI 5303303502
19	WCI 5303275278
21	WCI 5308016437
23	WCI 5303303501
25	WCI 5303300840
26	WCI 3017458
27	CLAMP-EVAPORATOR INNER
28	WCI 3017954
29	CLAMP-EVAPORATOR OUTER
30	CAPILLARY TUBE, CUT TO 25“
31	WCI 5303303883
32	WCI 5303306080
33	HARNESS
34	WCI 5303015383
35	WCI 5303001777
36	WASHER-COMPRESSOR
37	NUT-COMPRESSOR
38	COVER-TERMINAL
39	STRAP-COVER
40	OVERLOAD/RELAY
41	CORD-POWER
47	WCI 327100001
