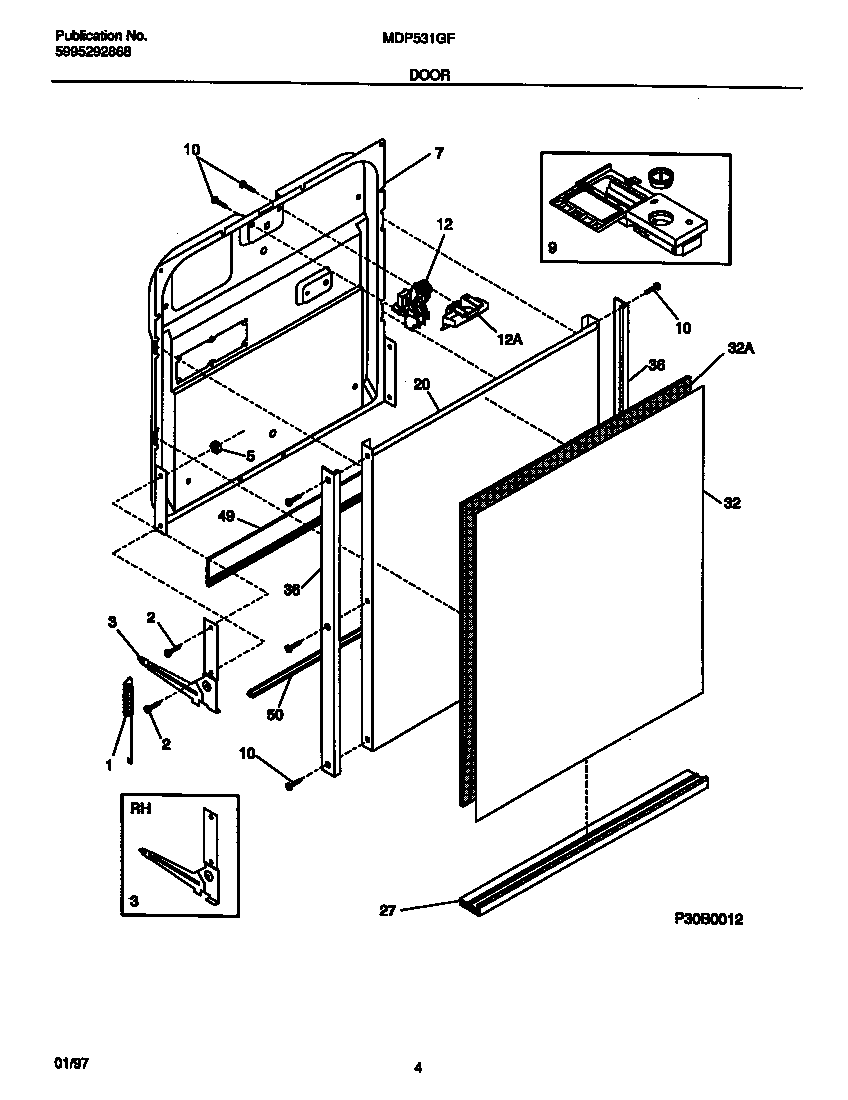

MDP531GFR1 03 – DOOR

MDP531GFR1 03 – DOOR

Written by

in

MDP531GFR1 03 – DOOR

Products

PositionProduct
*11565WCI 154200601
*11564218781101 Frigidaire Handle Screw
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3WCI 154298101
3CPIN-ARM (NOT ILLUSTRATED)
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
12A5304442175 Frigidaire Black Door Latch Assembly
12B154103702 Frigidaire Dishwasher Screw
20WCI 154210601
27WCI 154257604
32WCI 154229001
32AWCI 154229101
32BWCI 154229102
36WCI 154254204
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
