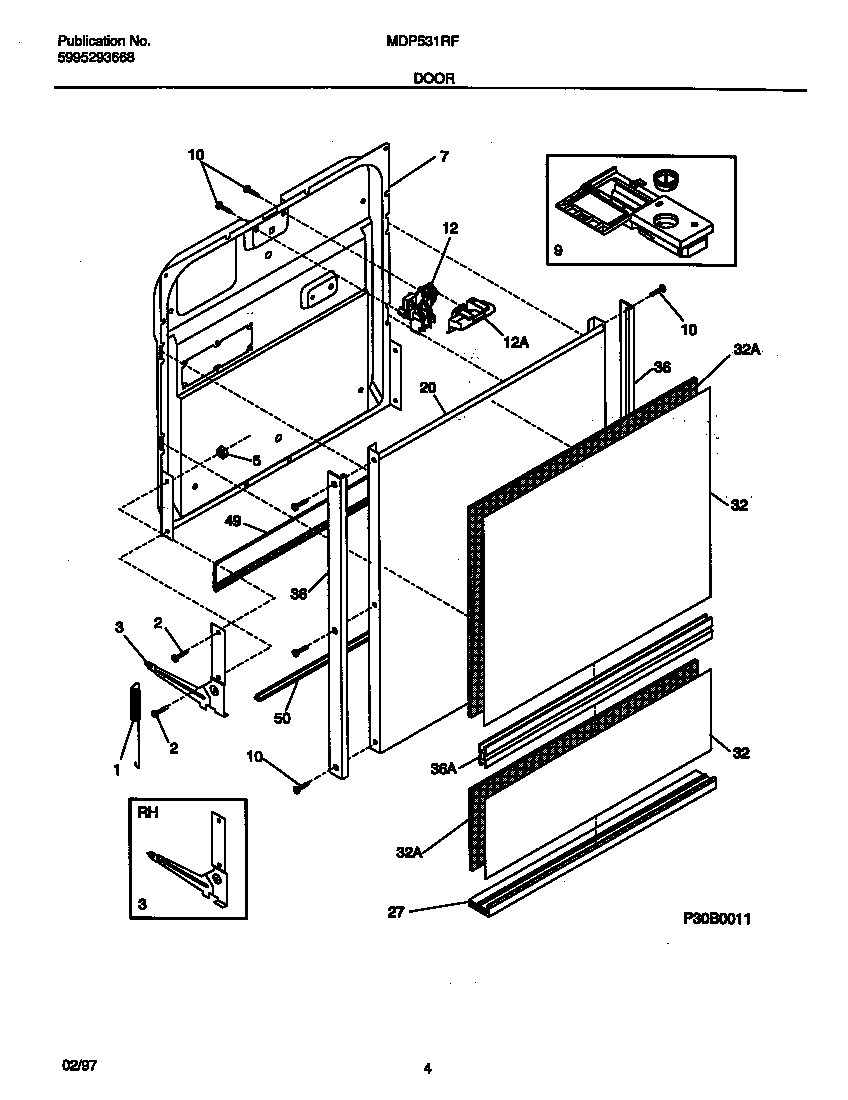

MDP531RFR2 03 – DOOR

MDP531RFR2 03 – DOOR

Written by

in

MDP531RFR2 03 – DOOR

Products

PositionProduct
*55163154103702 Frigidaire Dishwasher Screw
*55165WCI 154200601
*55164218781101 Frigidaire Handle Screw
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3PIN-ARM (NOT ILLUSTRATED)
35304409912 Frigidaire Dishwasher P-1 Right Hinge
3WCI 154298101
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
12SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257604
32WCI 154229113
32WCI 154229003
32WCI 154229002
32WCI 154229114
36WCI 154254504
36WCI 154254204
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
