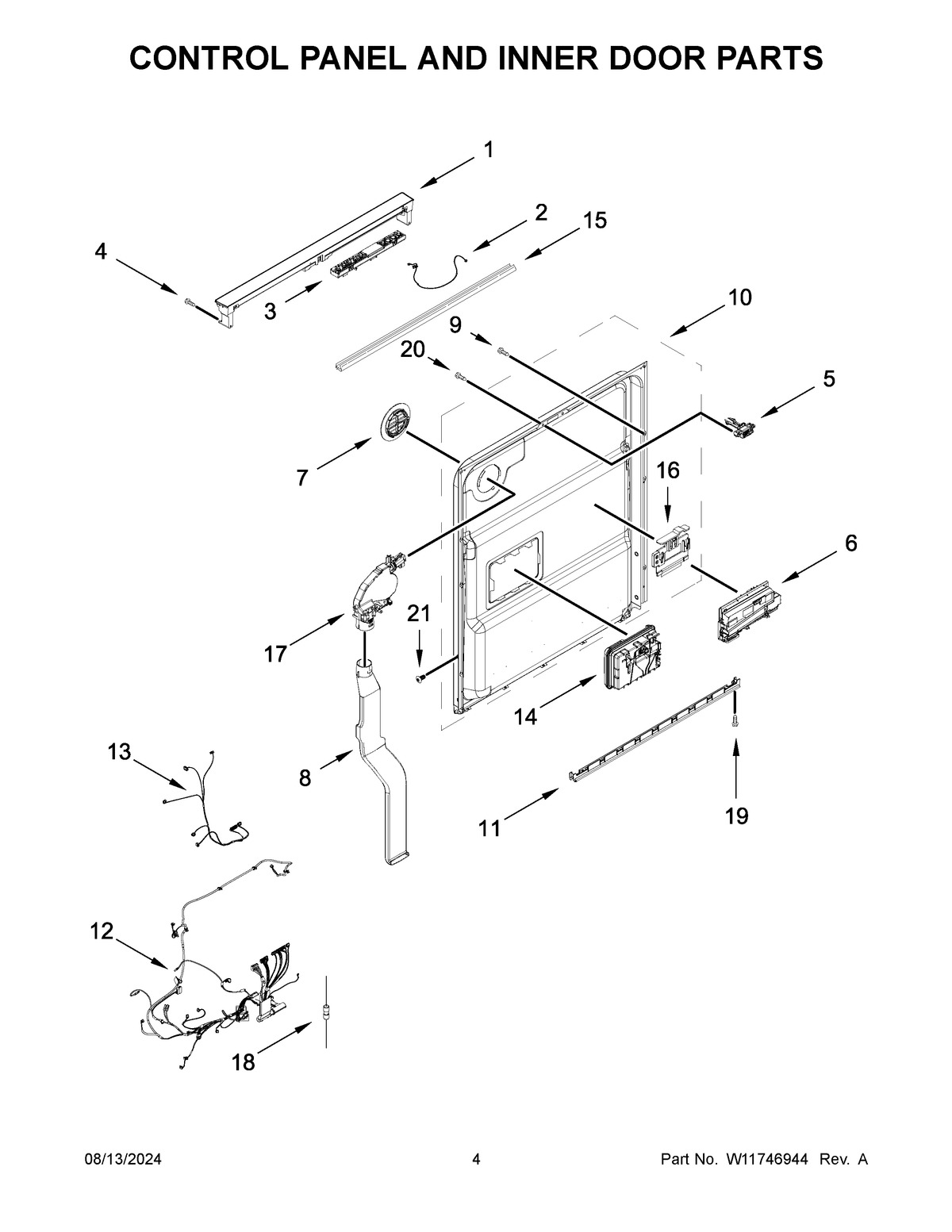

MDPS6124RZ1 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1PANEL-CNTL
2W11627526 Whirlpool Wire Harness
3W11729617-includeCORE Whirlpool Panel-Ui+Core
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11731014-includeCORE Whirlpool W11731014 Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8W11038734 Whirlpool Vent Tube
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12HARNS-WIRE
13W11678803 Whirlpool Wire Harness
14DISPENSER
15W11213719 Whirlpool Dishwasher Seal
16W11088985 Whirlpool Bracket Assembly
17W11414073 Whirlpool Vent Assembly
18W11397505 Whirlpool Wire Harness
19W11627527 Whirlpool Screw
20WPW10348408 Whirlpool Dishwasher Screw
21WP3400071 Whirlpool Screw
