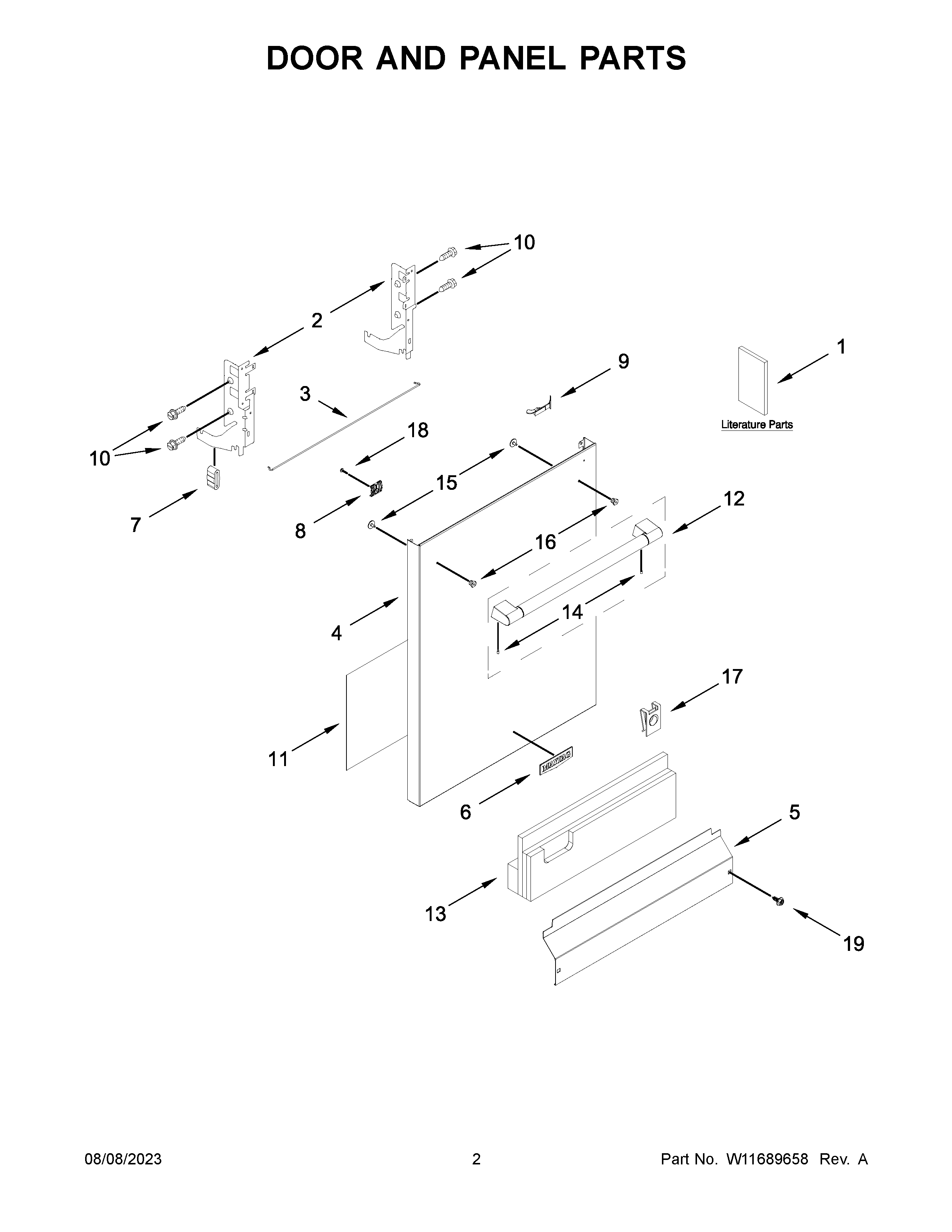

MDTS4224PZ0 02 – DOOR AND PANEL PARTS

MDTS4224PZ0 02 – DOOR AND PANEL PARTS

Written by

in

MDTS4224PZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AOWNERS MANUAL
1ENERGY GUIDE
1BTECH SHEET
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL, FRONT (INCLUDES 6, 8, 9, 15 & 16) (STAINLESS)
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11648754 Whirlpool Nameplate
7WP8268961 Whirlpool Friction Pad
8W10692757 Whirlpool Dishwasher Nut Assembly
9W11504190 Whirlpool Indicator Light
10WP3400071 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12HANDLE ASSEMBLY (STAINLESS)
13SHIELD
14W10917698 Whirlpool Dishwasher Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10910629 Whirlpool Dishwasher Nut
18WPW10213953 Whirlpool Screw
19WP302868 Whirlpool Screw
