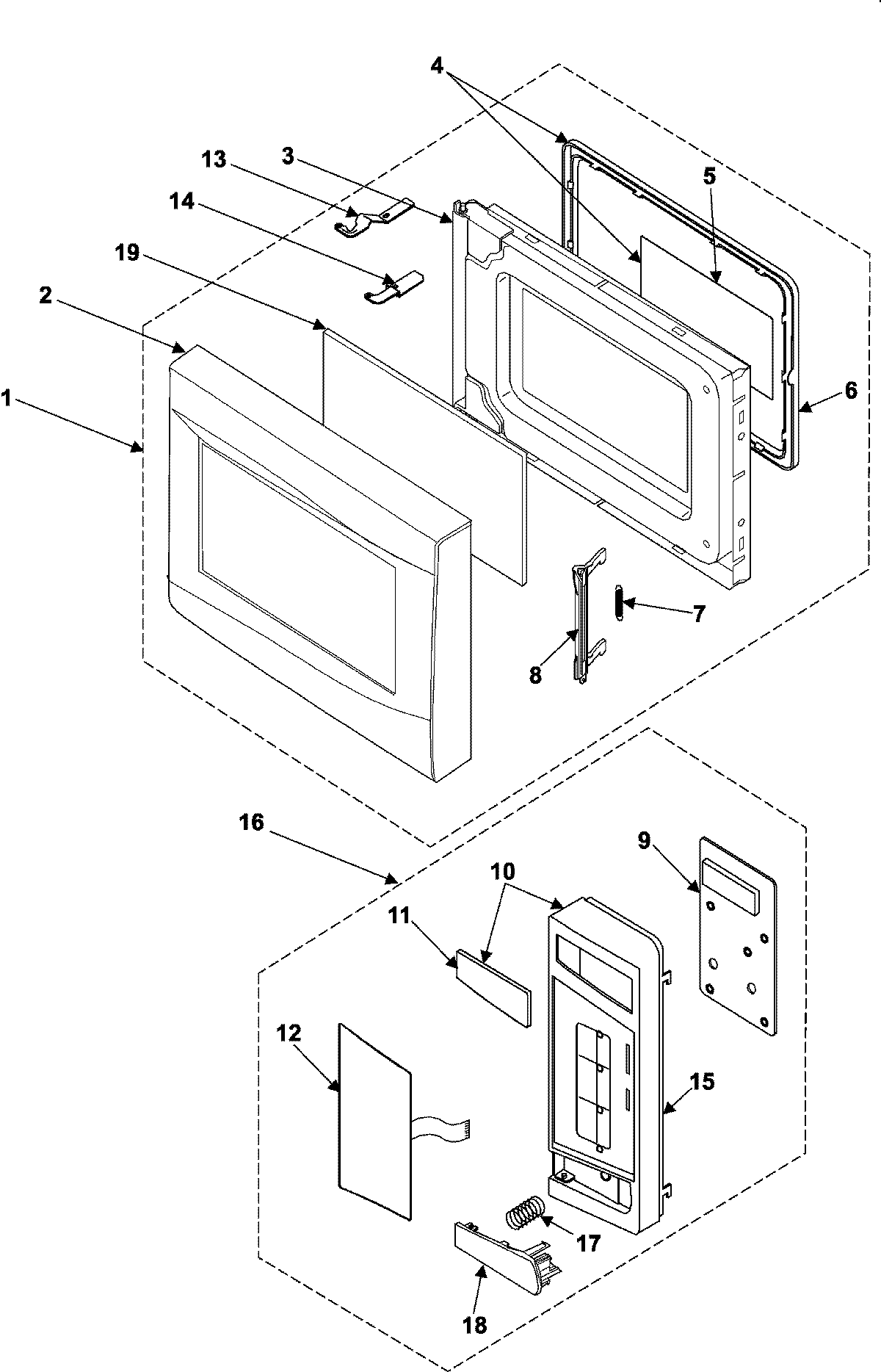

ME1240SC 02 – CONTROL PANEL/DOOR ASSEMBLY

ME1240SC 02 – CONTROL PANEL/DOOR ASSEMBLY

Written by

in

ME1240SC 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

PositionProduct
1MAY DE94-00718E
2MAY DE64-00529E
3MAY DE94-00428A
4MAY DE94-00427A
5MAY DE64-00248A
6MAY DE64-00184A
7DE61-00193A Samsung Key Spring
8MAY DE64-00210A
9MAY W10127123
10MAY DE94-00691D
11MAY DE64-00533A
12MAY DE34-00145F
13MAY DE61-00246A
14MAY DE61-00247A
15MAY DE64-00528D
16MAY DE94-00710F
17DE61-70076A Samsung Spring-Button
18MAY DE64-00532E
19MAY DE63-00042A
