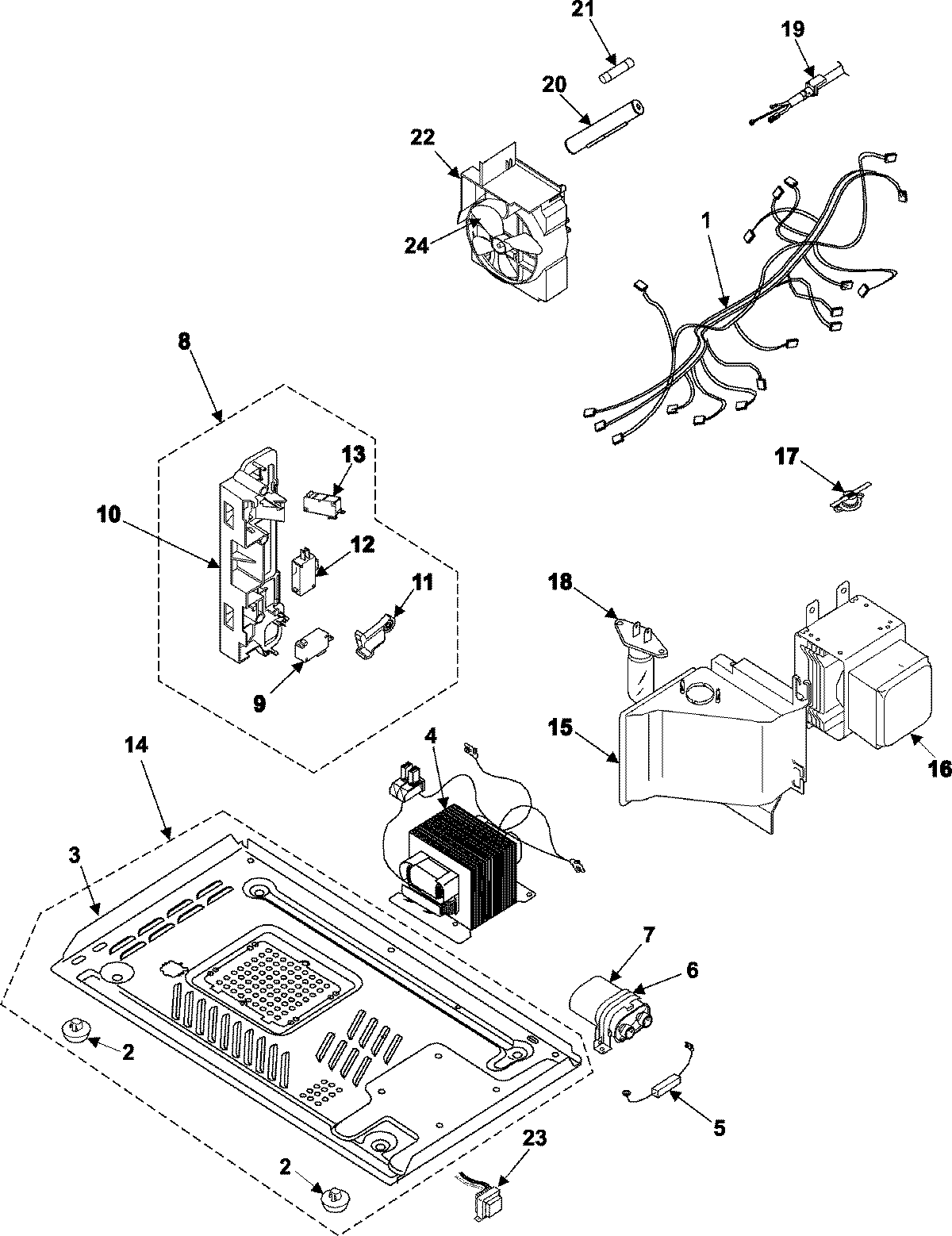

ME1260SB 03 – INTERNAL CONTROL/LATCH ASY/BASE

ME1260SB 03 – INTERNAL CONTROL/LATCH ASY/BASE

Written by

in

ME1260SB 03 – INTERNAL CONTROL/LATCH ASY/BASE

Products

PositionProduct
1MAY DE39-00278A
2FOOT
3MAY DE80-10002D
4DE26-00061B Samsung Transformer H.V
5MAY DE59-40001A
6MAY DE61-50106A
72501-001015 Samsung Capacitor
8MAY DE96-00115D
9MAY 3405-001055
10MAY DE72-00138A
11MAY DE66-00088A
12MAY 3405-001033
13WP3405-001034 Whirlpool Microwave Switch
14MAY DE96-00121D
15MAY DE71-00164A
16MAY YOM75P31ESS
17DE47-20173A Samsung Thermostat
18LAMP-INCANDESCENT
19MAY DE39-20146E
213601-001198 Samsung Fuse Cartridge
22MOTOR-FAN
22MAY DE96-00100A
23MAY DE26-00037A
