ME1280STC 02 – CONTROL PANEL/DOOR ASSEMBLY

ME1280STC 02 – CONTROL PANEL/DOOR ASSEMBLY

Written by

in

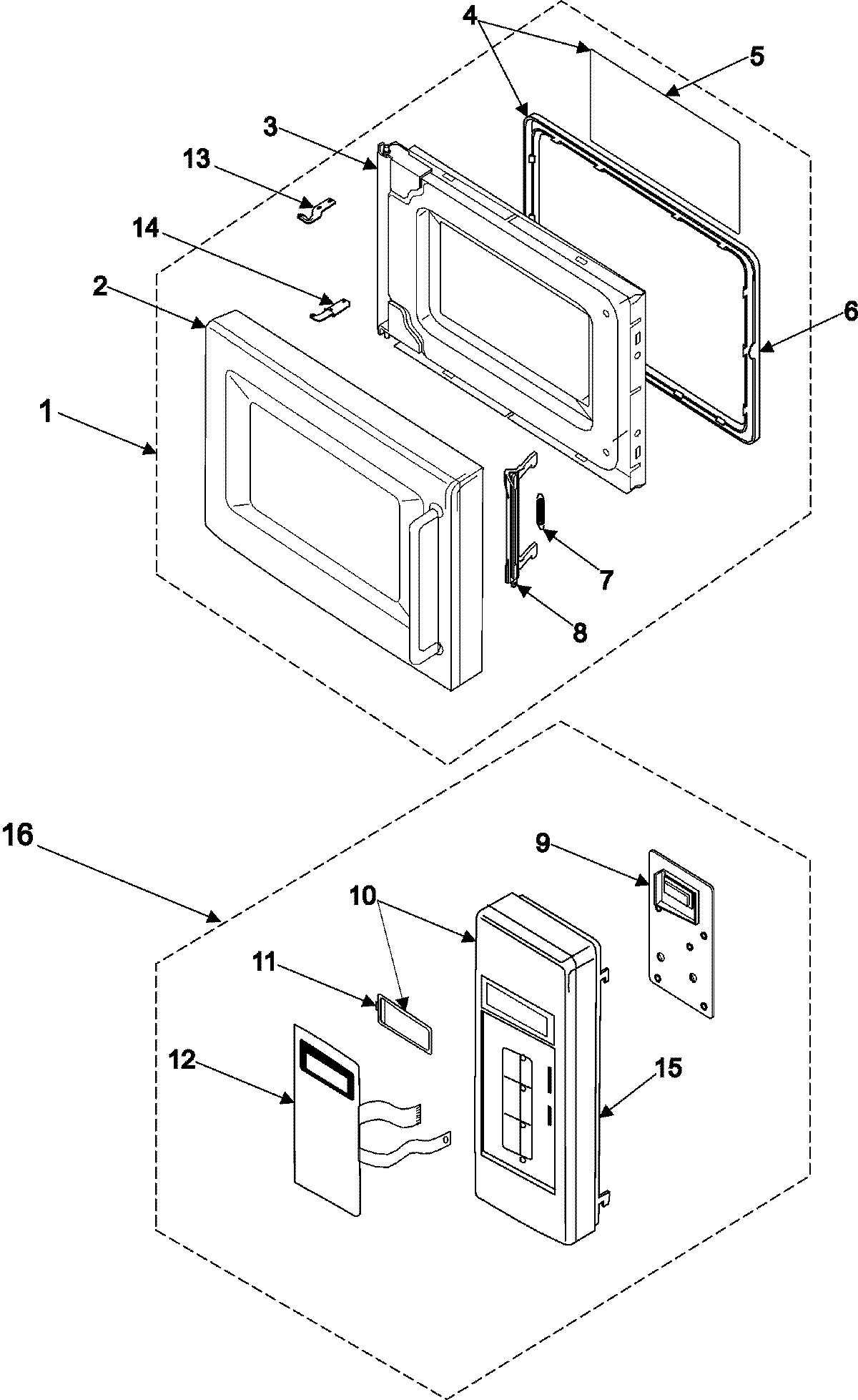

ME1280STC 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

PositionProduct
1MAY DE94-00530B
2MAY DE94-00528B
3MAY DE94-00428A
4MAY DE94-00427A
5MAY DE64-00248A
6MAY DE64-00184A
7DE61-00193A Samsung Key Spring
8DE64-00211A Samsung Key Door
9MAY W10127123
10MAY DE94-00527B
11WINDOW-DISPLAY
12MAY DE34-00126C
13MAY DE61-00246A
14MAY DE61-00247A
15MAY DE72-00168B
16MAY DE94-00529J
