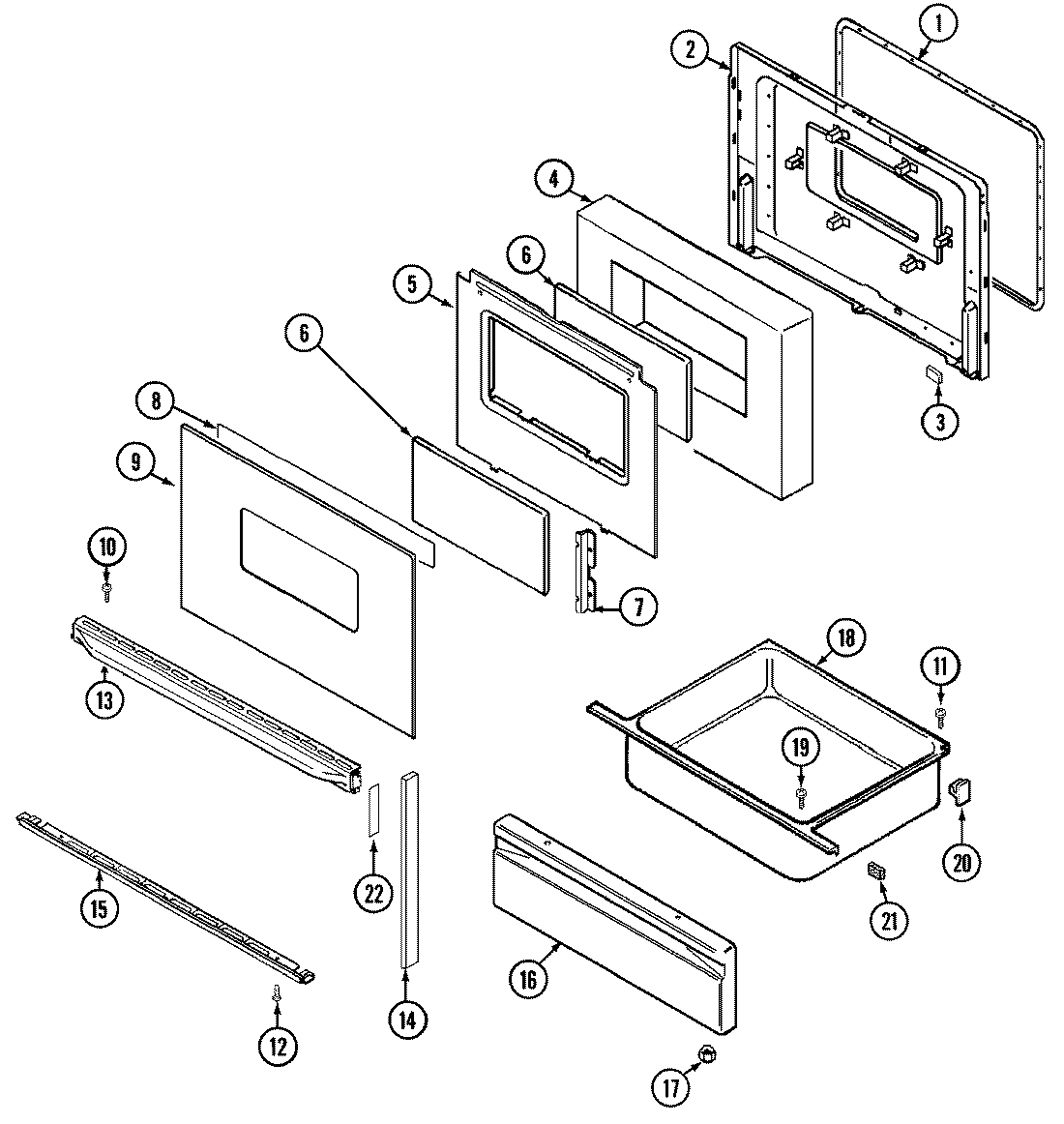

ME3842XRA 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 74003244
2	MAY 74001058
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 74003431
9	MAY 7902P321-60
10	WP98008545 Whirlpool Screw
11	MAY 74003566
11	WP488130 Whirlpool Air Conditioner Nut
12	SCREW
13	MAY 74003429
13	MAY 7701P144-60
14	MAY 74002084
14	MAY 74003430
15	MAY 74003432
15	MAY 7744P105-60
16	MAY 2416F039-64
17	WPW10131078 Whirlpool Nut Assembly
18	MAY 74003618
18	MAY 3405F019-80
19	MAY 7101P037-60
20	WP8004P026-60 Whirlpool Support
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	MAY 8270P093-60
