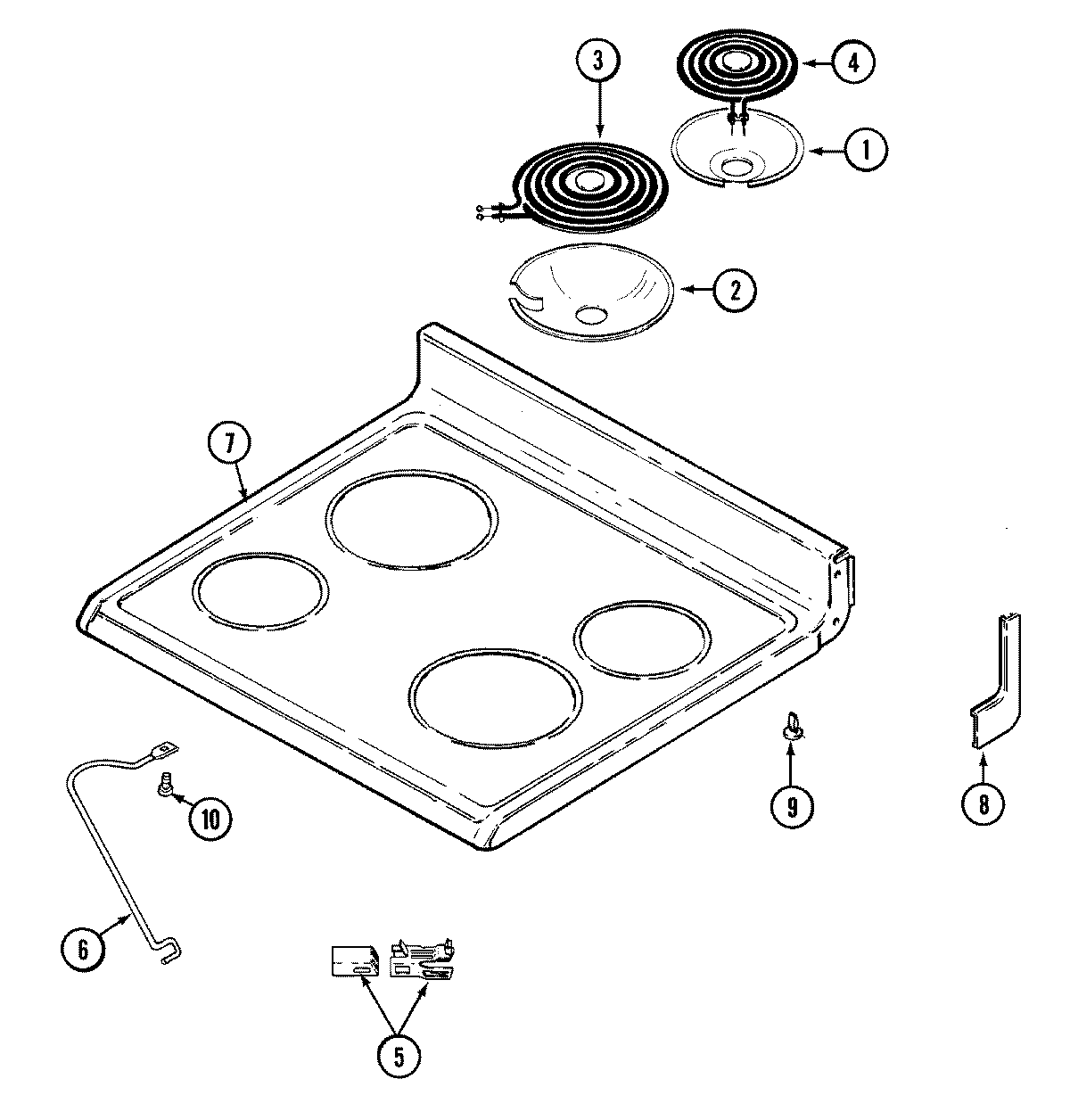

ME3842XRA 05 – TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 7725P040-60
1	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2	MAY Y04100393
3	MAY 12001230
4	WPW10259868 Whirlpool Surface Heating Element
5	MAY 1430306K
5	MAY 7118P013-60
6	MAY 74001170
7	MAY 2002W103-84
7	SCREW
8	MAY 74002563
8	MAY 7746P031-60
8	MAY 7746P030-60
9	MAY 74001663
10	MAY 7101P280-60
