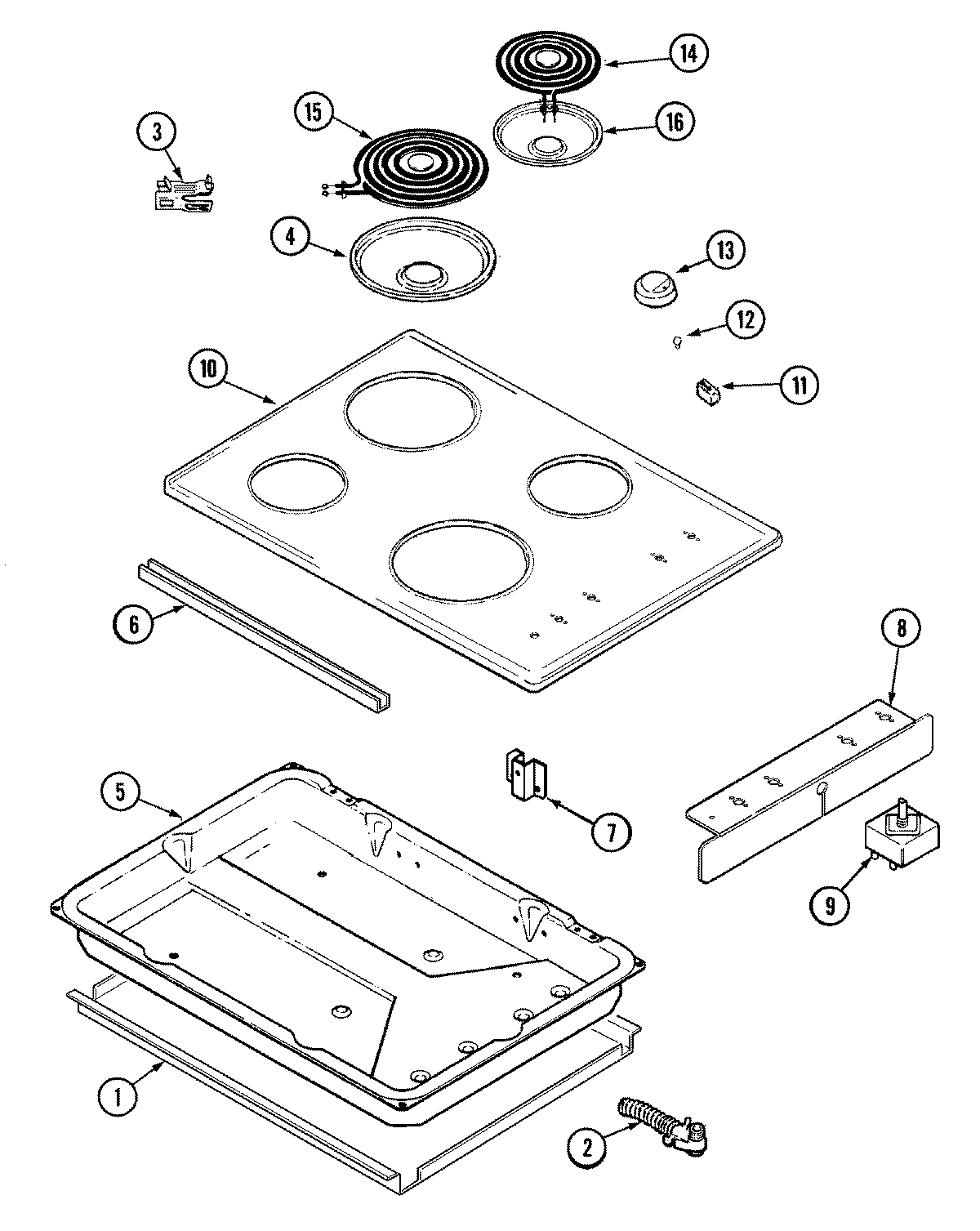

MEC4430AAB 01 – CONTROL PANEL/TOP ASSEMBLY/BODY

Products

Position	Product
1	MAY 74004502
2	MAY 74004486
2	MAY 3801F072-45
3	MAY 1430306K
4	DRIP BOWL 8" W/HOLE CHROME
5	BOTTOM, BURNER BOX
6	BRACE, TOP
7	BRACKET, MAIN TOP SUPPORT
8	GROMMET
9	WP7403P239-60 Whirlpool Oven Switch
9	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	MAY 7103P021-60
9	MAY Y704426
10	MAY 74004496
10	MAY 7101P059-60
11	W10852510 Whirlpool Indicator Light
12	W11690131 Whirlpool Light Lens
13	MAY 74004830
14	WPW10259868 Whirlpool Surface Heating Element
14	MAY 74004090
15	WPW10345410 Whirlpool Surface Element
15	MAY 74007807
15	MAY 74004089
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	MAY 12001323
20	MAY 74004491
20	MAY 8111P473-60
21	MAY 16000327
