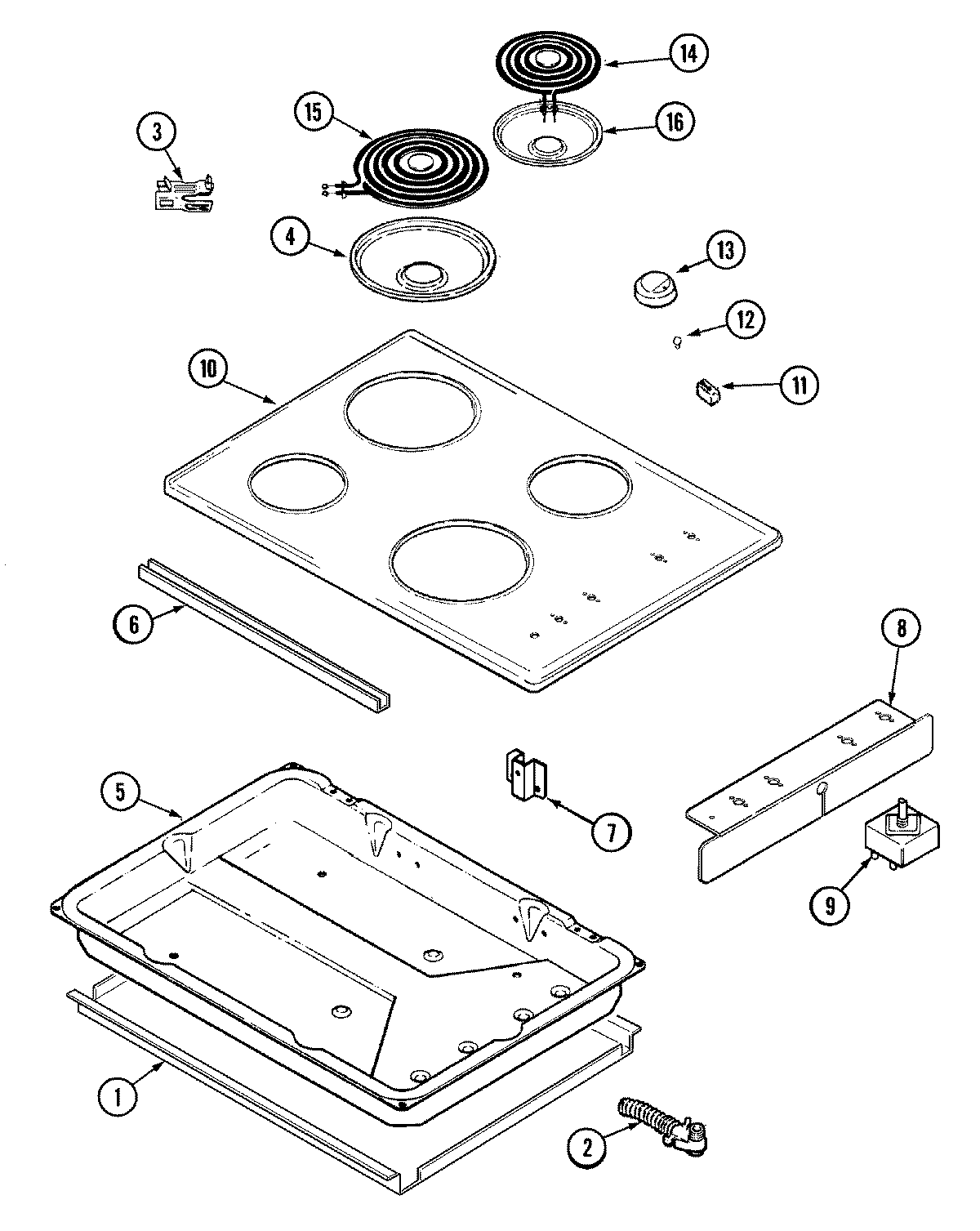

MEC4430AAC 01 – CONTROL PANEL/TOP ASSEMBLY/BODY

MEC4430AAC 01 – CONTROL PANEL/TOP ASSEMBLY/BODY

Written by

in

MEC4430AAC 01 – CONTROL PANEL/TOP ASSEMBLY/BODY

Products

PositionProduct
1MAY 74004502
2MAY 3801F072-45
2MAY 74004486
3MAY 1430306K
4DRIP BOWL 8" W/HOLE CHROME
5BOTTOM, BURNER BOX
6BRACE, TOP
7BRACKET, MAIN TOP SUPPORT
8GROMMET
9MAY 7103P021-60
9MAY Y704426
9WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9WP7403P239-60 Whirlpool Oven Switch
10MAY 7101P059-60
10MAY 74004497
11W10852510 Whirlpool Indicator Light
12W11690131 Whirlpool Light Lens
13MAY 74004830
14MAY 74004090
14WPW10259868 Whirlpool Surface Heating Element
15MAY 74004089
15MAY 74007807
15WPW10345410 Whirlpool Surface Element
16WPW10196406 Whirlpool 6" Chrome Drip Bowl
19MAY 12001323
20MAY 74004491
21MAY 16000327
