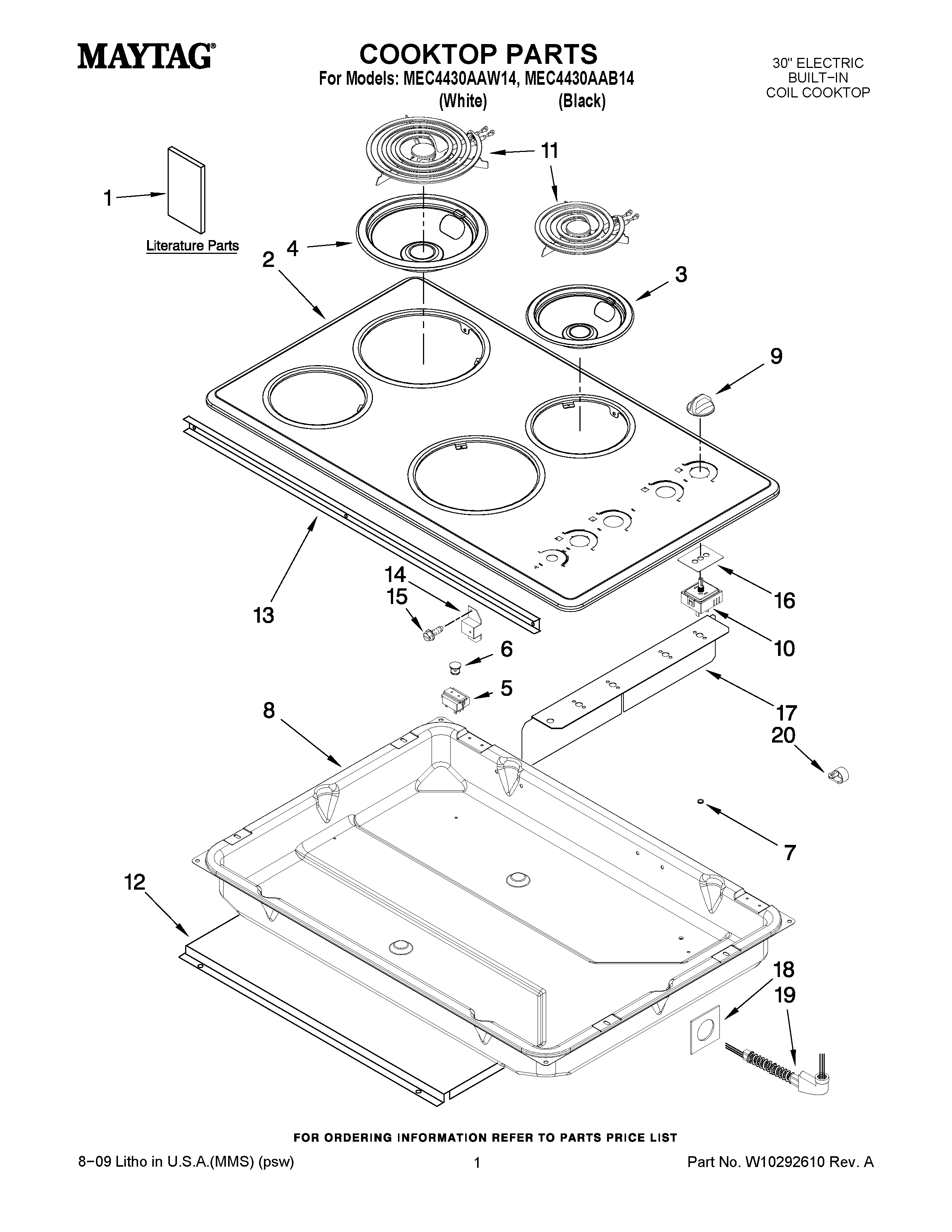

MEC4430AAW14 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY 8101P480-60
1	MAY 8111P521-60
2	MAY 2002W148-81
2	MAY 2002W148-09
3	PAN, REFLECTOR SMALL
4	PAN, REFLECTOR LARGE
5	W10852510 Whirlpool Indicator Light
6	W11690131 Whirlpool Light Lens
7	GROMMET
8	BOTTOM, BURNER BOX
9	MAY 7737P143-60
9	MAY 7737P142-60
10	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
10	Switch, Infinte (6“ (RR/LR)(2))
11	ELEMENT (LF,RR)
11	ELEMENT (LR,RF)
12	MAY 3601F289-51
13	BRACE, TOP
14	BRACKET, MAIN TOP SUPPORT
15	MAY 7101P336-60
16	SEAL, GASKET INF. SW.
17	MAY 3604F304-70
18	MAY 3801F072-45
19	CONDUIT, CABLE
20	MAY 7111P002-60
