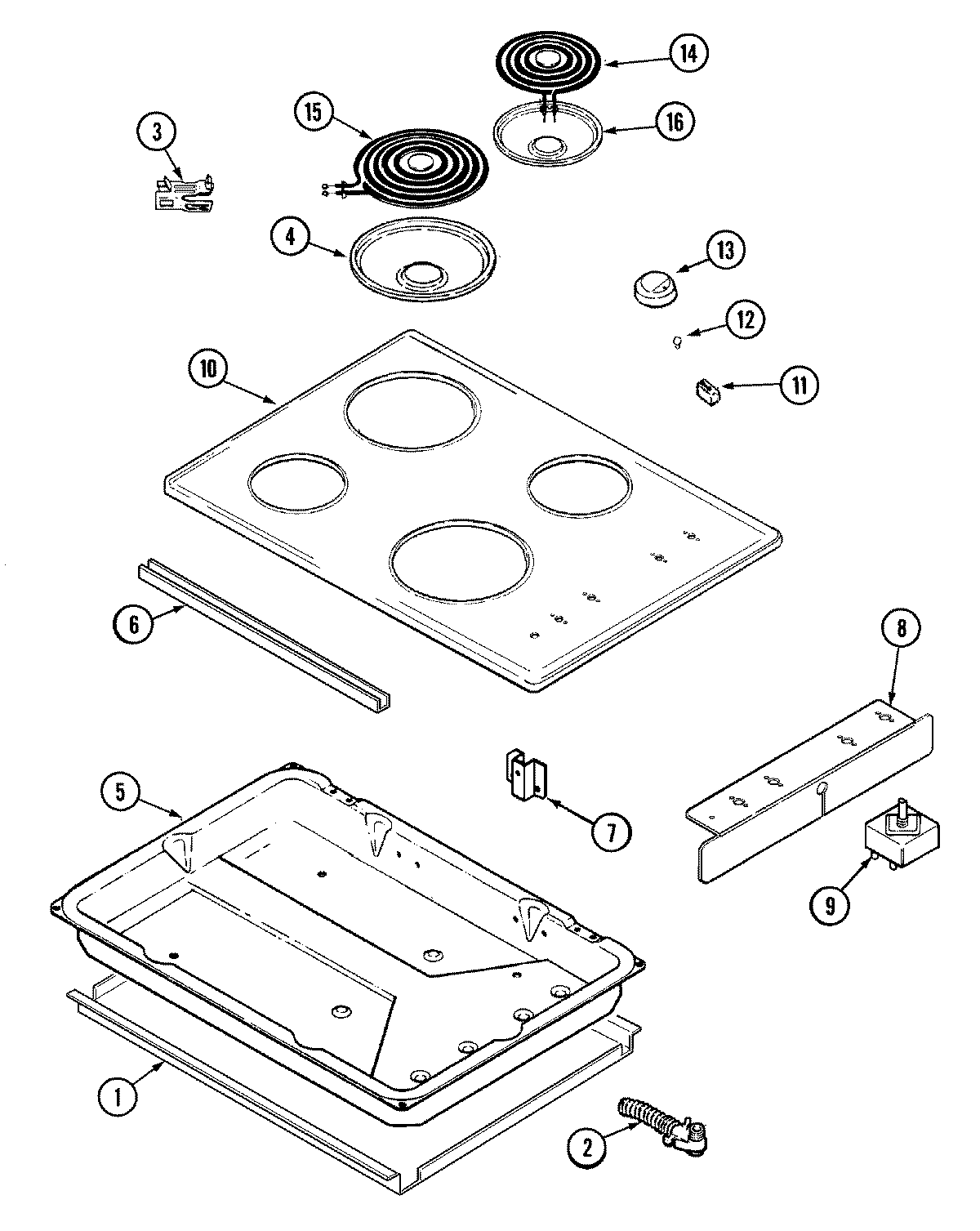

MEC4430ACW 01 – CONTROL PANEL/TOP ASSEMBLY/BODY

Products

Position	Product
1	MAY 74004502
2	MAY 3801F072-45
2	MAY 74004486
3	MAY 1430306K
4	DRIP BOWL 8" W/HOLE CHROME
5	BOTTOM, BURNER BOX
6	BRACE, TOP
7	BRACKET, MAIN TOP SUPPORT
8	GROMMET
8	MAY 74004488
9	MAY 7103P021-60
9	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	WP7403P239-60 Whirlpool Oven Switch
9	MAY Y704426
10	MAY 74004489
10	MAY 7101P059-60
11	W10852510 Whirlpool Indicator Light
12	W11690131 Whirlpool Light Lens
13	MAY 74004829
14	WP660532 Whirlpool Oven Surface Element
14	MAY 74004485
15	00484791 Bosch Oven Heating Element
15	MAY 74007807
15	MAY 74004484
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	MAY 12001323
20	MAY 74004492
20	MAY 8111P473-60
20	MAY 74004491
21	MAY 16000327
