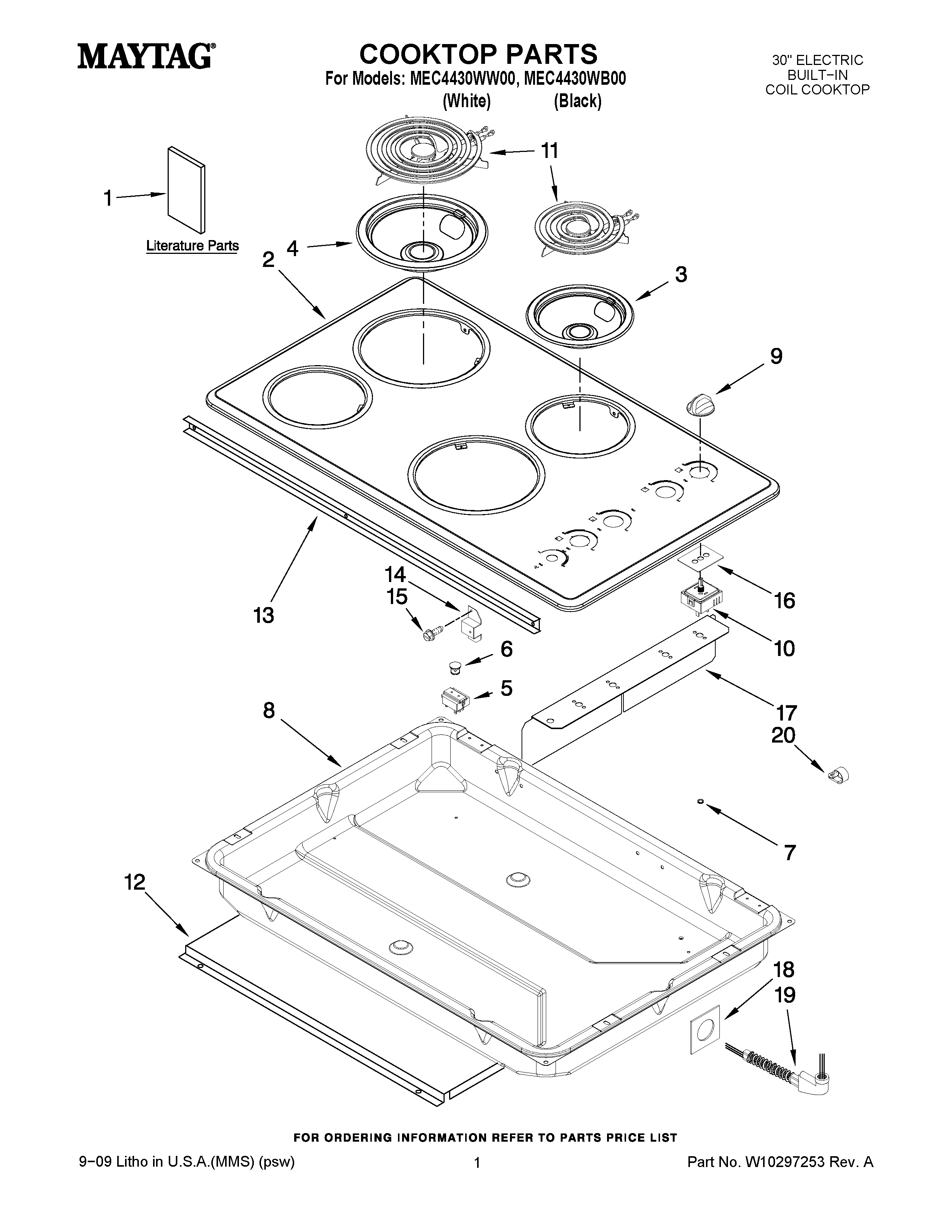

MEC4430WW00 01 – COOKTOP PARTS

MEC4430WW00 01 – COOKTOP PARTS

Written by

in

MEC4430WW00 01 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM
1MAY W10274251
1INSTRUCTIONS, INSTALLATION
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
2MAY W10281385
2MAY W10281382
3PAN, REFLECTOR SMALL
4PAN, REFLECTOR LARGE
5W10852510 Whirlpool Indicator Light
6W11690131 Whirlpool Light Lens
7GROMMET
8BOTTOM, BURNER BOX
9MAY W10244660
9MAY W10244659
10Switch, Infinte (6“ (RR/LR)(2))
10SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
11ELEMENT (LF,RR)
11ELEMENT (LR,RF)
12MAY 3601F289-51
13BRACE, TOP
14BRACKET, MAIN TOP SUPPORT
15MAY 7101P336-60
16SEAL, GASKET INF. SW.
17MAY 3604F304-70
18MAY 3801F072-45
19CONDUIT, CABLE
20MAY 7111P002-60
