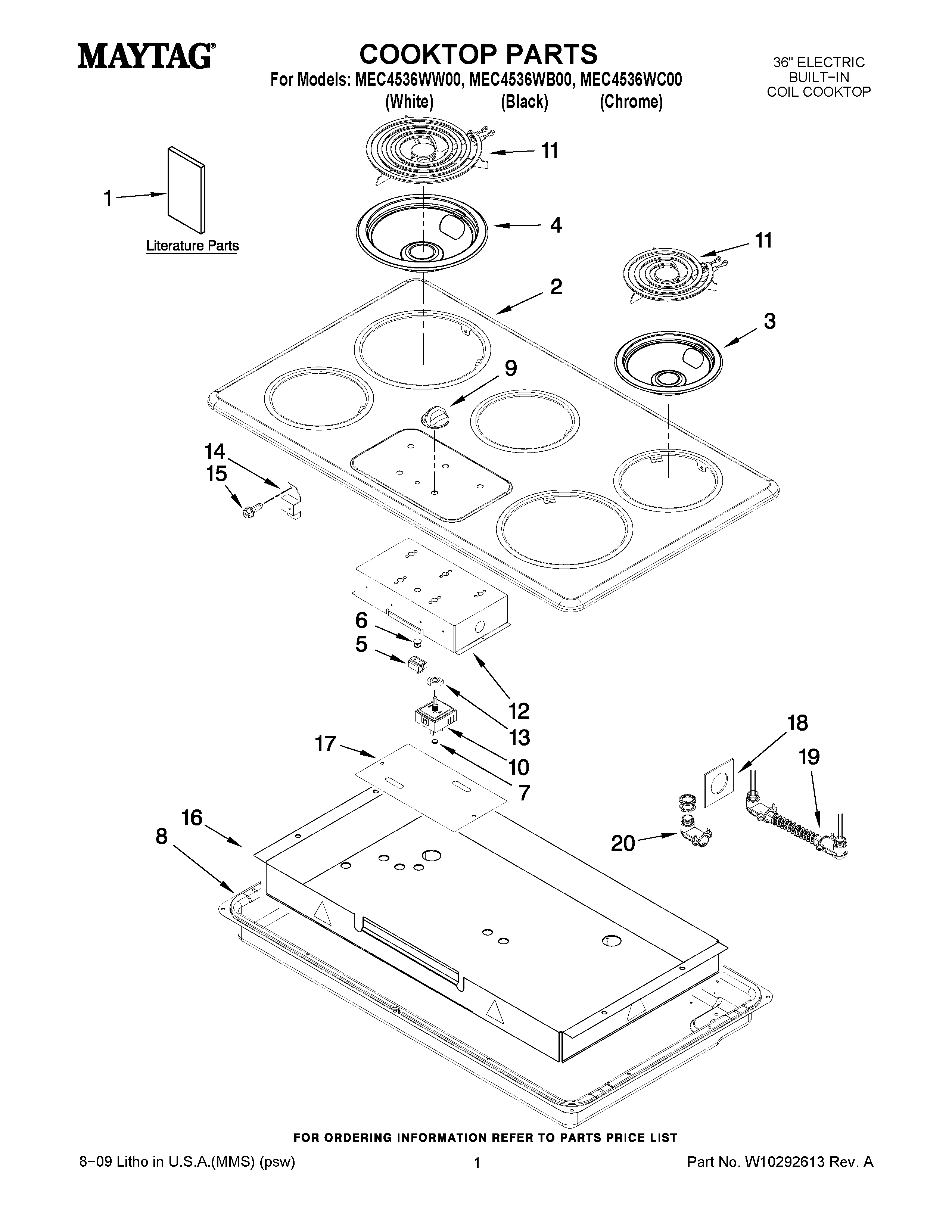

MEC4536WC00 01 – COOKTOP PARTS

MEC4536WC00 01 – COOKTOP PARTS

Written by

in

MEC4536WC00 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10274251
1DIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2MAY W10281391
2MAY W10281388
2MAY W10281394
3PAN, REFLECTOR SMALL
4PAN, REFLECTOR LARGE
5W10852510 Whirlpool Indicator Light
6W11690131 Whirlpool Light Lens
7MAY 8008P014-60
8BOX, BURNER
9MAY W10270282
9MAY W10270283
10MAY 7450P014-60
11MAY 7406P480-60
11MAY 7406P478-60
12MAY 4001F100-51
13MAY 7103P021-60
14BRACKET, MAIN TOP SUPPORT
15MAY 7101P336-60
16UNIT, HOUSING
17MAY 4005F086-51
18MAY 3801F072-45
19ASSEMBLY, CONDUIT FLEX
20MAY 7417P005-60
