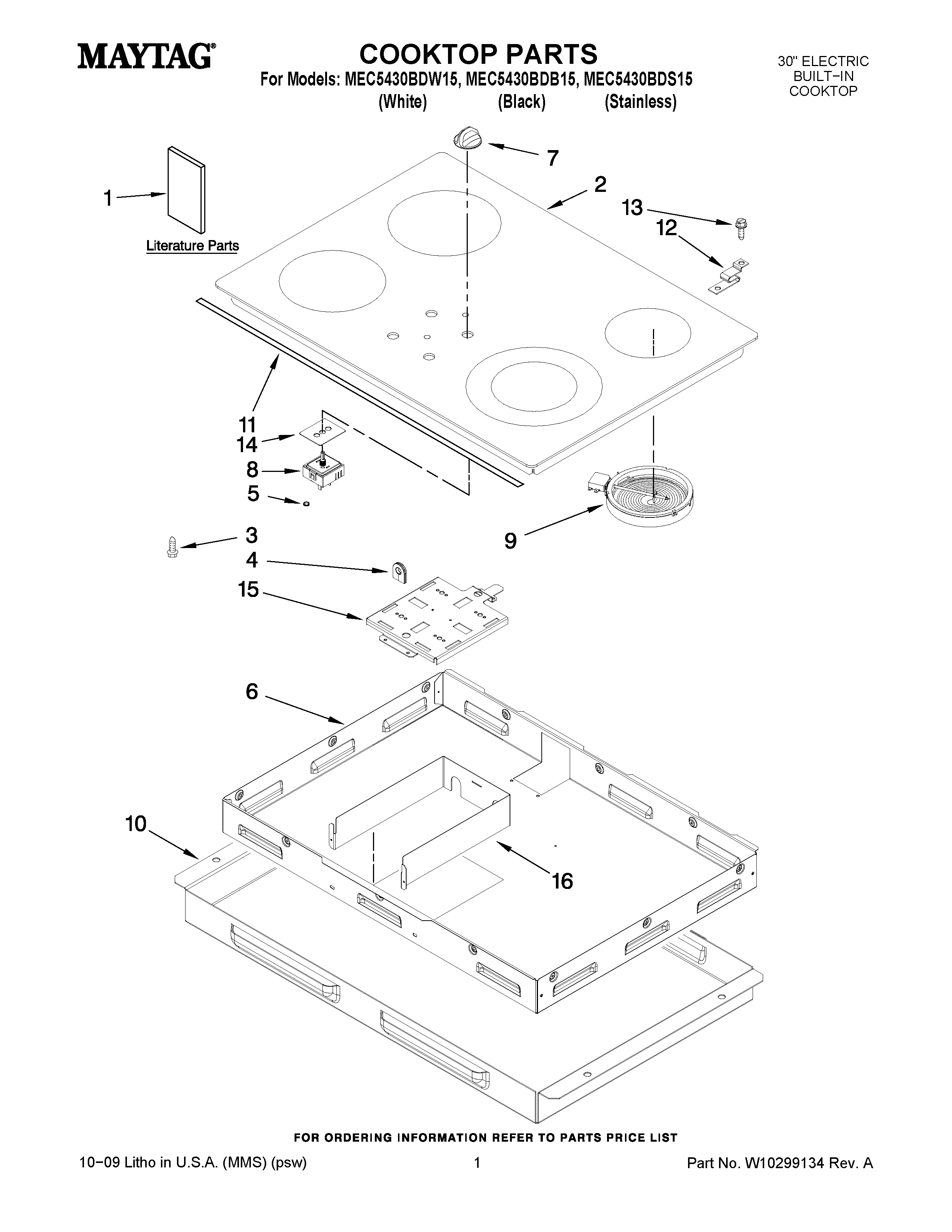

MEC5430BDW15 01 – COOKTOP PARTSadmin2025-04-26T09:24:15+00:00MEC5430BDW15 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY 8119P208-60 |
| 1 | MAY 8119P207-60 |
| 1 | MAY 8111P523-60 |
| 1 | MAY 8101P478-60 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY 7920P212-60 |
| 2 | MAY 7920P211-60 |
| 3 | SCREW |
| 4 | MAY 8008P068-60 |
| 5 | GROMMET |
| 6 | MAY 4011F508-51 |
| 7 | KNOB, CONTROL (BLACK) |
| 7 | KNOB, CONTROL (WHITE) |
| 8 | SWITCH, INFINITE (RIGHT REAR) |
| 8 | SWITCH, INFINITE (DUAL (RF)) |
| 8 | SWITCH, INFINITE (LR & RR) |
| 9 | ELEMENT, SURFACE (LF) |
| 9 | Element LR/RR (2) |
| 9 | ELEMENT (LF) |
| 9 | MAY 7406P420-60 |
| 10 | COVER, SWITCH |
| 11 | TRIM,COOKTOP SS MODEL ONLY (REAR) |
| 12 | SUPPORT, ELEMENT |
| 13 | MAY 7101P426- 60 |
| 14 | GASKET, INFINITE SWITCH |
| 15 | MAY 3605F315-51 |
| 16 | MAY 4005F708-51 |
