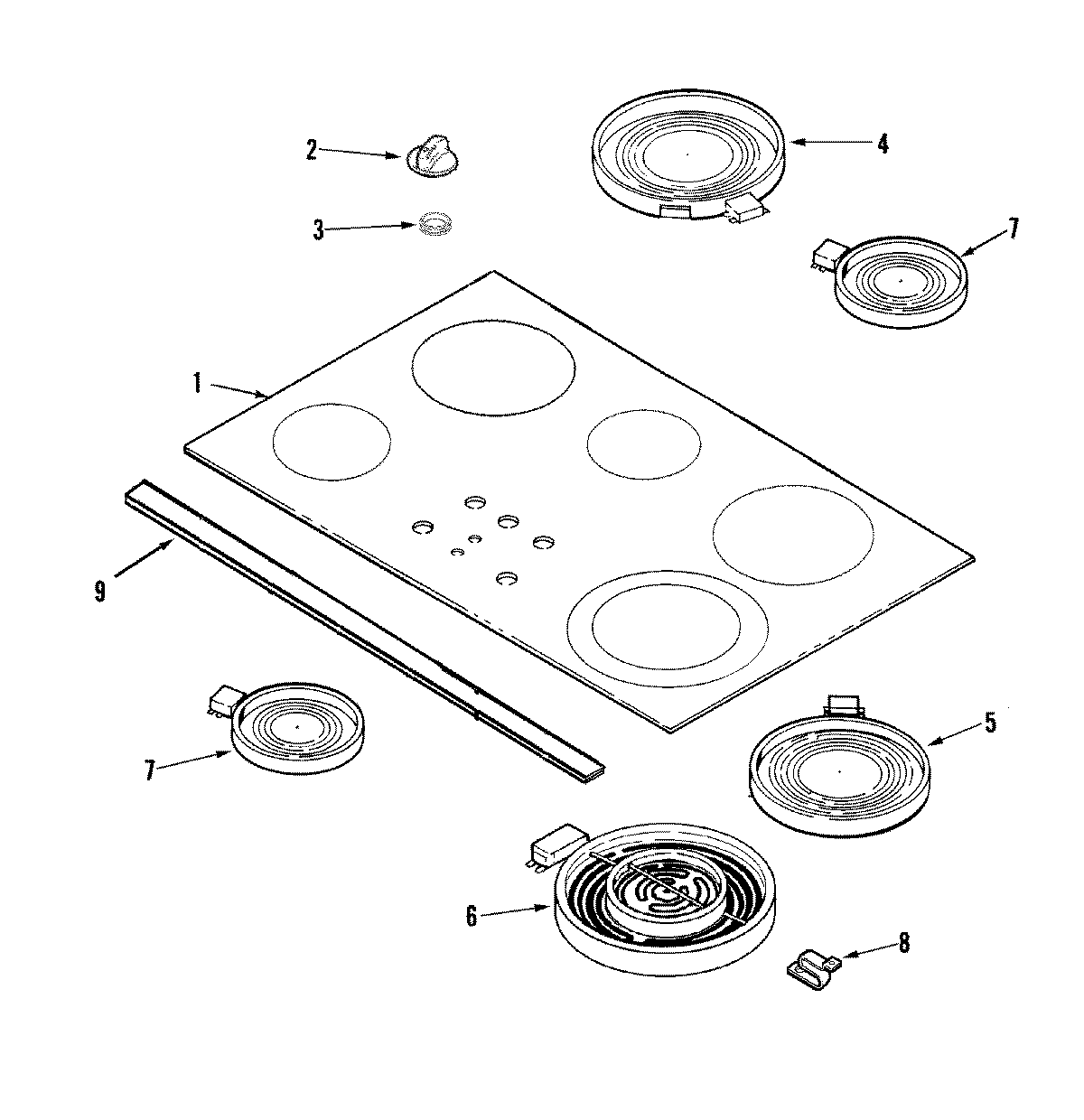

MEC5536BAS 02 – TOP ASSEMBLY

MEC5536BAS 02 – TOP ASSEMBLY

Written by

in

MEC5536BAS 02 – TOP ASSEMBLY

Products

PositionProduct
112002793 Whirlpool Foam Tape
1MAY 74007860
2WP74011260 Whirlpool Black Knob
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4MAY 74008569
4W10823697 Whirlpool Surface Element
5WP74011005 Whirlpool Heating Element
5W10823708 Whirlpool Surface Element
6W10823694 Whirlpool Surface Element
6W10823692 Whirlpool Dual Radiant Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8MAY 74007845
9W10168884 Whirlpool Cooktop Trim
10MAY 74007564
10MAY 8111P474-60
11MAY 74007888
12MAY 20001080
12WA906B Whirlpool Cooktop Glass Scraper
