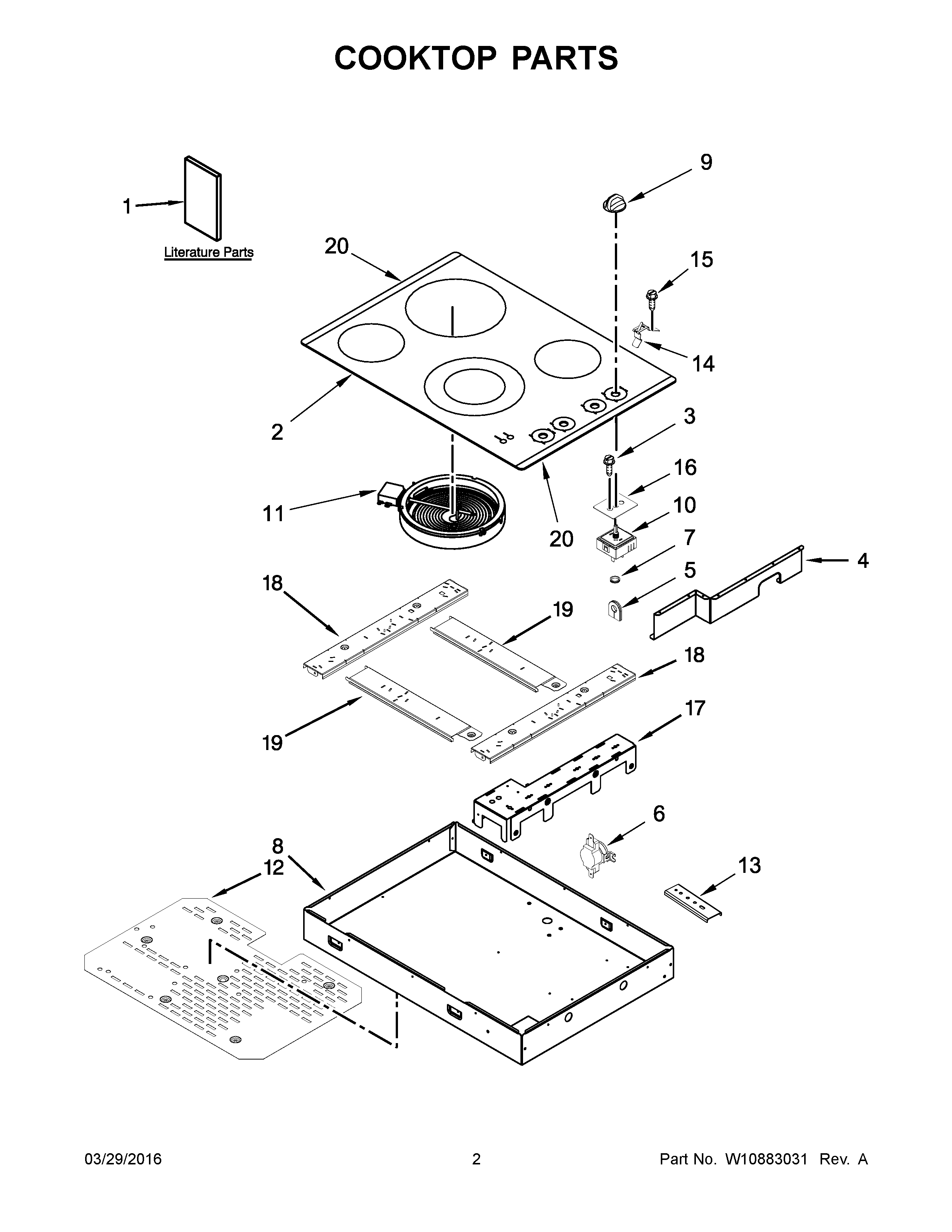

MEC7430BB02 02 – COOKTOP PARTSadmin2025-04-26T09:25:40+00:00MEC7430BB02 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W10742420 |
| NI | MAY W10324729 |
| NI | WIRING HARNESS PARTS, CONDUIT |
| NI | INSULATION, CONTROL KNOB |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10316661 |
| NI | MAY 7111P020-60 |
| NI | SEAL, LIMITER |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 1D | TIPS, SAFE COOKING (FRENCH) |
| 1B | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1A | MAY W10622708 |
| 1 | MAY W10574205 |
| 2 | MAY W10570699 |
| 2A | MAY W10570701 |
| 3 | SCREW |
| 4 | MAY W10311796 |
| 5 | MAY 8008P068-60 |
| 6 | MAY W10464566 |
| 7 | GROMMET (BLACK) |
| 7A | GROMMET, SWITCH (GREY) |
| 8 | BOX-BURNER |
| 9 | MAY W10859808 |
| 10C | SWITCH, INFINITE (RIGHT REAR) |
| 10A | SWITCH, INFINITE (LEFT REAR) |
| 10B | SWITCH, INFINITE (RIGHT FRONT) |
| 10 | SWITCH, INFINITE (LEFT FRONT) |
| 11B | ELEMENT (3000/1400W) (LEFT FRONT) |
| 11A | ELEMENT, HYPER (3200W) (RIGHT FRONT) |
| 11 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 12 | MAY W10422067 |
| 13 | MAY 4455917 |
| 14 | SPRING, ELEMENT |
| 15 | MAY 7101P426- 60 |
| 16 | MAY 3183956 |
| 17 | MAY W10484349 |
| 18 | MAY W10457917 |
| 19 | MAY W10311790 |
| 20 | MAY W10480460 |
