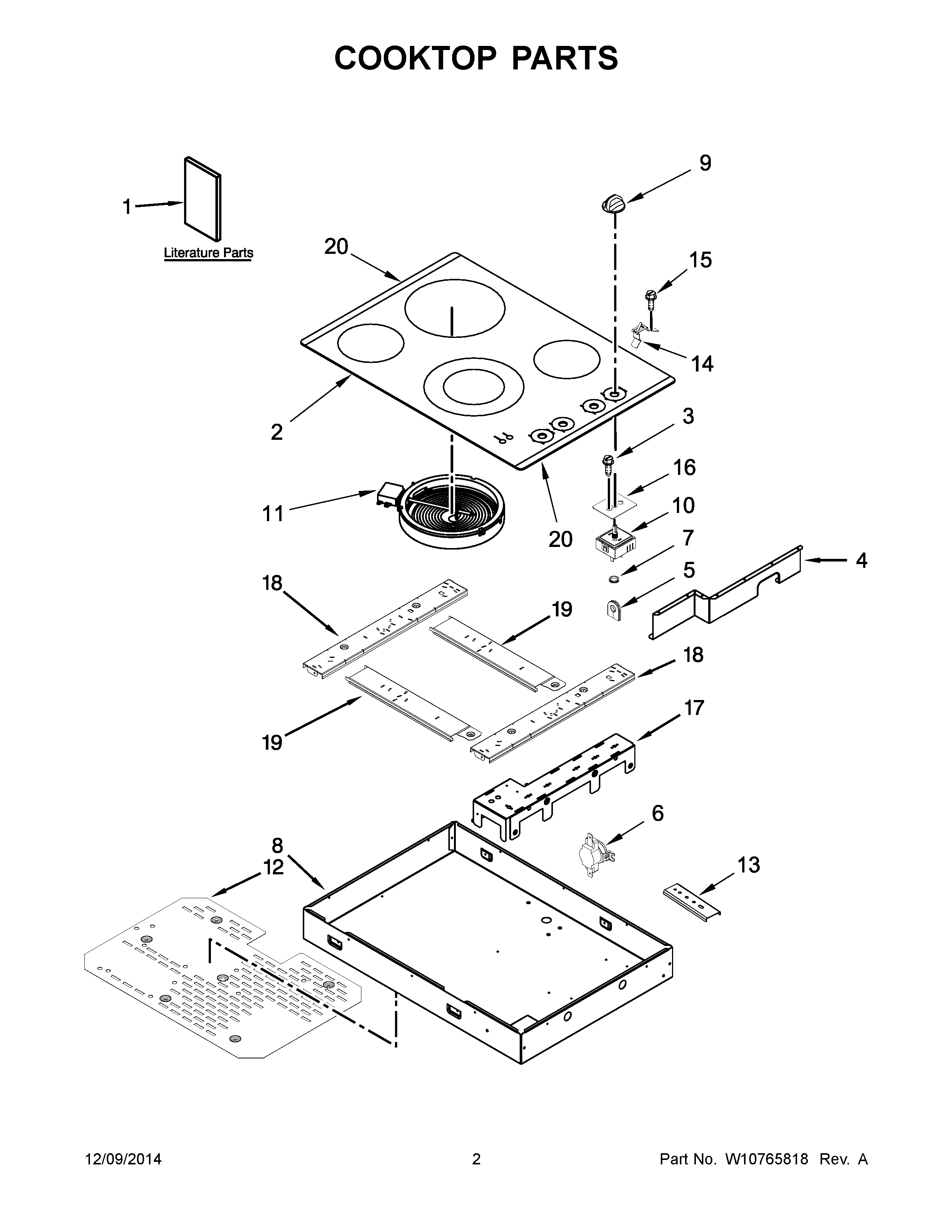

MEC7430BS01 02 – COOKTOP PARTS

MEC7430BS01 02 – COOKTOP PARTS

Written by

in

MEC7430BS01 02 – COOKTOP PARTS

Products

PositionProduct
NIINSULATION, CONTROL KNOB
NILINER (NOT A SERVICEABLE PART)
NISEAL, LIMITER
NIMAY 7111P020-60
NIMAY W10316661
NIWIRING HARNESS PARTS, CONDUIT
NIMAY W10324729
NIMAY W10631479
1MAY W10574205
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
1CTIPS, SAFE COOKING (ENGLISH)
1AMAY W10622708
1DTIPS, SAFE COOKING (FRENCH)
2AMAY W10570701
2MAY W10570699
3SCREW
4MAY W10311796
5MAY 8008P068-60
6MAY W10464566
7GROMMET (BLACK)
7AGROMMET, SWITCH (GREY)
8BOX-BURNER
9BMAY W10480476
9AMAY W10480477
9KNOB, CONTROL (BLACK)
10SWITCH, INFINITE (LEFT FRONT)
10CSWITCH, INFINITE (RIGHT REAR)
10ASWITCH, INFINITE (LEFT REAR)
10BSWITCH, INFINITE (RIGHT FRONT)
11ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11AELEMENT (3200W) (LEFT REAR)
11BELEMENT (3000/1400W) (LEFT FRONT)
12MAY W10422067
13MAY 4455917
14SPRING, ELEMENT
15MAY 7101P426- 60
16MAY 3183956
17MAY W10484349
18MAY W10457917
19MAY W10311790
20MAY W10480460
