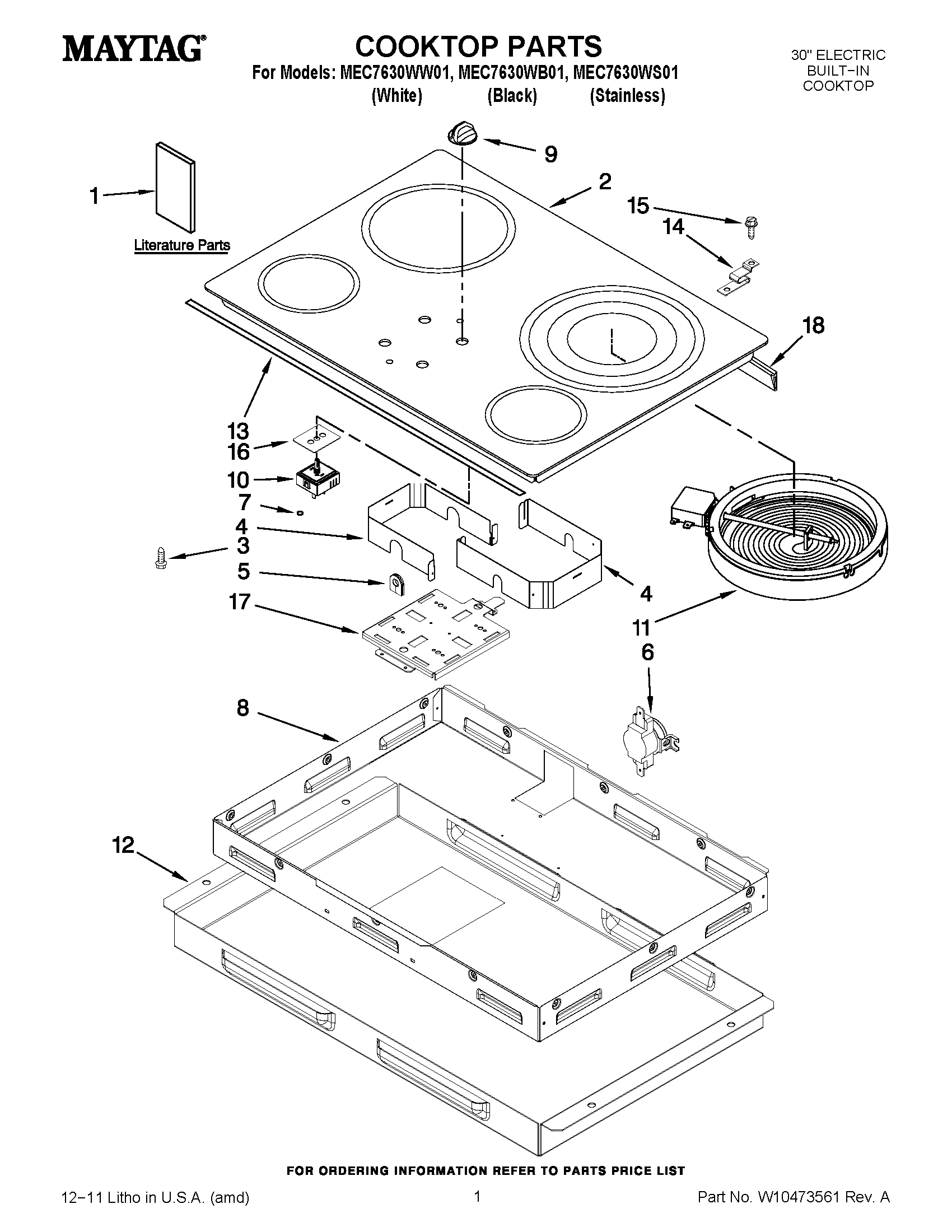

MEC7630WW01 01 – COOKTOP PARTS

MEC7630WW01 01 – COOKTOP PARTS

Written by

in

MEC7630WW01 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10435220
1MAY W10274255
1MAY W10274254
2MAY W10376595
2MAY W10376596
3SCREW
4MAY W10271708
4MAY W10257523
5MAY 8008P068-60
6SWITCH, HI-LIMIT
7GROMMET (BLACK)
8MAY 4011F508-51
9KNOB, CONTROL (WHITE)
9KNOB, CONTROL (STAINLESS)
9KNOB, CONTROL (BLACK)
10SWITCH, INFINITE (LR,RR (2))
10MAY W10244640
10SWITCH, INFINITE (RIGHT FRONT)
10SWITCH, INFINITE (RIGHT REAR)
11ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11MAY W10268663
11ELEMENT, HYPER (3200W) (RIGHT FRONT)
12COVER, SWITCH
13MAY W10249855
14SUPPORT, ELEMENT
15MAY 7101P426- 60
16GASKET, INFINITE SWITCH
17MAY W10261233
18MAY W10271709
