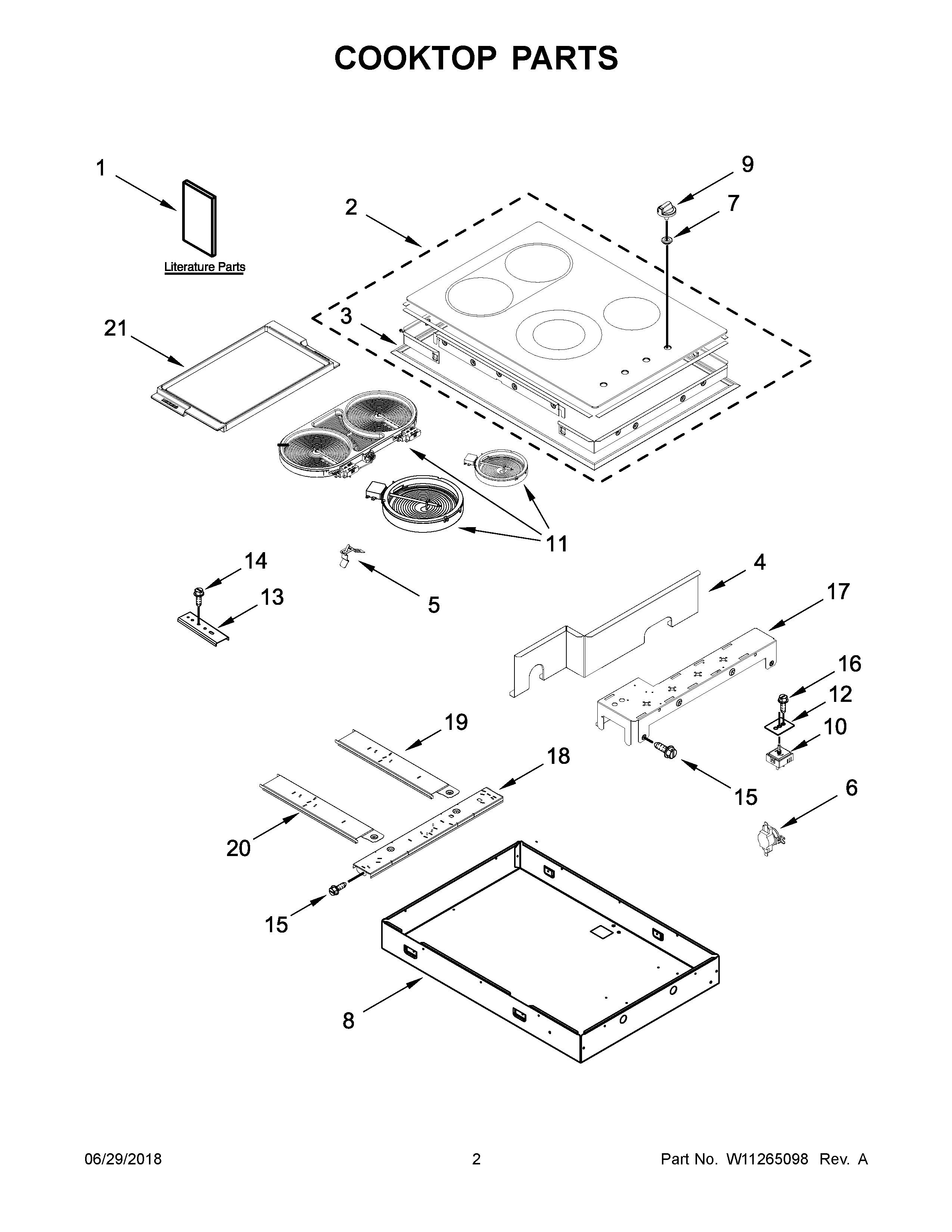

MEC8830HS00 02 – COOKTOP PARTSadmin2025-04-26T09:28:20+00:00MEC8830HS00 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, COOKTOP (KNOB) |
| NI | MAY 8286642 |
| NI | SEAL, LIMITER |
| NI | SCREW (FOR MAIN HARNESS) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | SCREW, GROUNDING |
| NI | WP7103P027-60 Whirlpool Nut |
| NI | MAY W11110551 |
| 1C | MAY W11238363 |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1B | GUIDE, USE & CARE |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALLATION |
| 2 | MAY W11120984 |
| 2A | MAY W11120985 |
| 4 | SHIELD, SWITCH |
| 5 | SPRING, ELEMENT |
| 6 | MAY W10464566 |
| 7 | GROMMET (BLACK) |
| 9A | MAY W10859808 |
| 9 | MAY W10895122 |
| 10B | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 10A | MAY W10843843 |
| 10 | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 11 | ELEMENT, BRIDGE (RIGHT FRONT & RIGHT REAR) |
| 11B | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 11A | ELEMENT (3000/1400W) (LEFT FRONT) |
| 12 | MAY 3183956 |
| 13 | MAY 4455917 |
| 14 | MAY 3400093 |
| 15 | MAY 7101P426- 60 |
| 16 | SCREW |
| 17 | PLATE, SWITCH |
| 18 | MAY W11175477 |
| 19 | MAY W11175474 |
| 20 | MAY W11175476 |
| 21 | GRILL/GRIDDLE |
