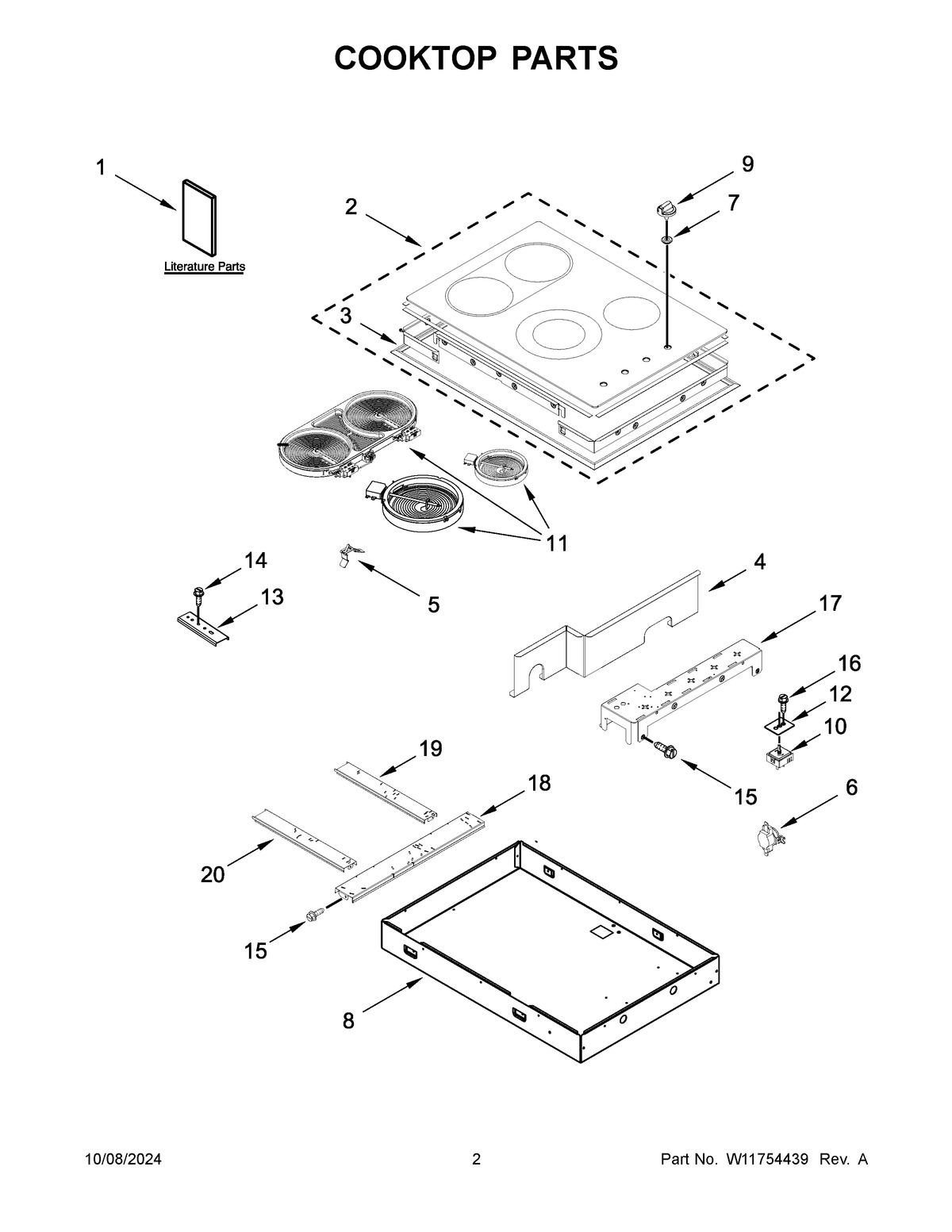

MEC8830HS01 02 – COOKTOP PARTS

Products

Position	Product
NI	INSULATION, COOKTOP (KNOB)
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10491984 Whirlpool Switch Seal
NI	SCREW
NI	Nut
NI	WP3400015 Whirlpool Screw
NI	HARNESS, MAIN
NI	WP8286642 Whirlpool Tape
1B	USE & CARE GUIDE
1C	DIAGRAM, WIRING
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTALLATION INSTRUCTIONS
2A	W11266551 Whirlpool Cooktop
2	W11266546 Whirlpool Cooktop Assembly
3	TRIM, STAINLESS (NOT SERVICED)
4	SHIELD, SWITCH
5	WPW10225448 Whirlpool Spring Assembly
6	W10464566 Whirlpool Thermostat
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8	BOX, BURNER (NOT SERVICED)
9A	W10859808 Whirlpool Knob
9	W10895122 Whirlpool Knob
10A	W11661906 Whirlpool Range Infinite Switch
10B	W10911303 Whirlpool Infinite Switch
10	SWITCH-INF
11A	W11517959 Whirlpool Electric Range Radiant Surface Element
11B	ELMNT-SURF
11	WPW10248259 Whirlpool Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	WPL 7101P30960
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	RAIL, HORIZONTAL REAR
20	RAIL, HORIZONTAL FRONT
