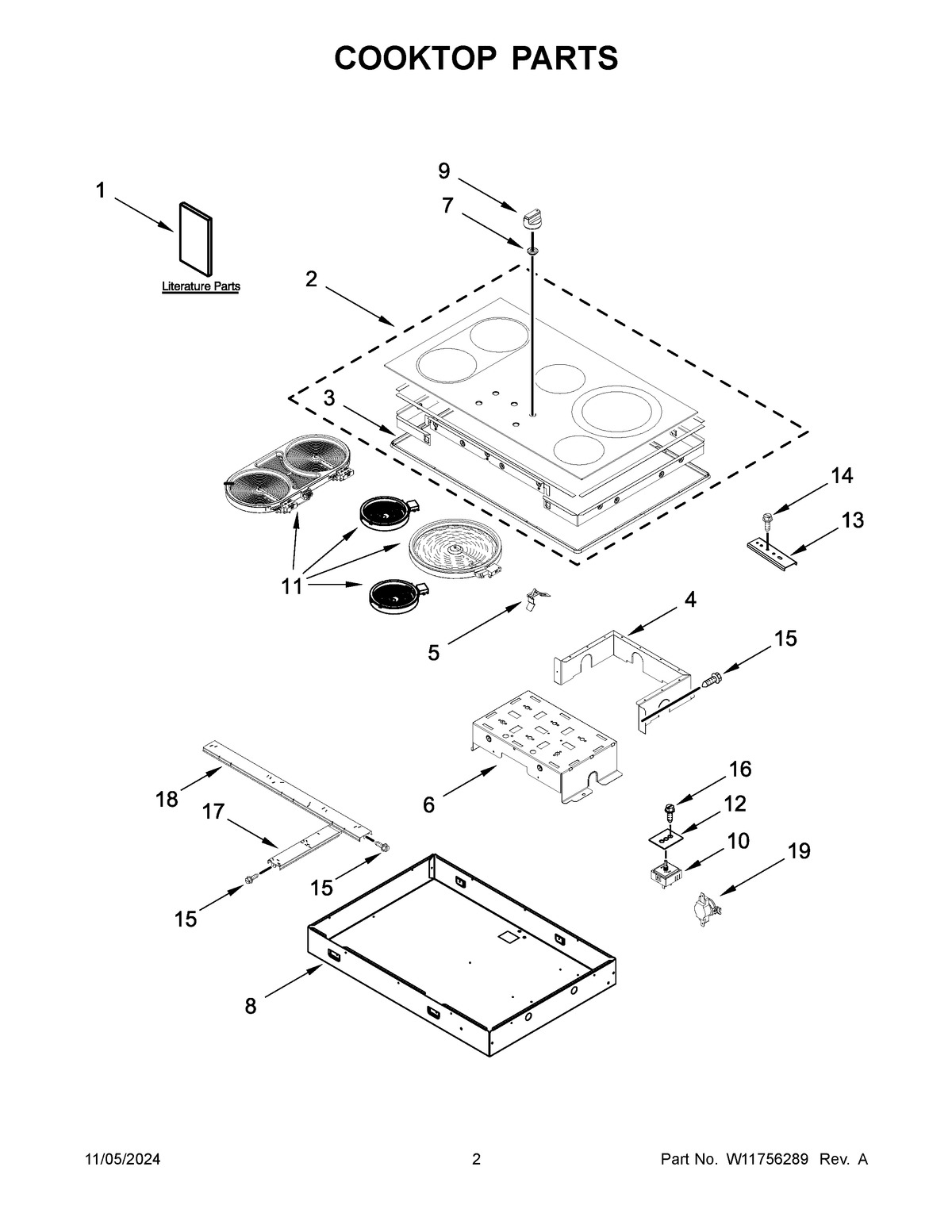

MEC8836HS01 02 – COOKTOP PARTS

Products

Position	Product
NI	INSULATION, COOKTOP (KNOB)
NI	SCREW
NI	HARNESS, MAIN
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	FOLLOWING PARTS NOT ILLUSTRATED
1B	USE & CARE GUIDE
1C	DIAGRAM, WIRING
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTALLATION INSTRUCTIONS
2	W11339340 Whirlpool Cooktop
3	TRIM, STAINLESS (NOT SERVICED)
4	W10311897 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	W11215839 Whirlpool Cover Switch
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8	BOX, BURNER (NOT SERVICED)
9	W10859808 Whirlpool Knob
10C	W10917724 Whirlpool Infinite Switch
10	SWITCH-INF
10B	W10911303 Whirlpool Infinite Switch
10A	W11661906 Whirlpool Range Infinite Switch
11B	WPW10342780 Whirlpool Surface Element
11C	W10823727 Whirlpool Stove Right Front Surface Element
11A	ELMNT-SURF
11	WPW10248259 Whirlpool Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
16	WPL 7101P30960
17	RAIL, SHORT
18	RAIL, HORIZONTAL
19	W10471482 Whirlpool Thermostat
