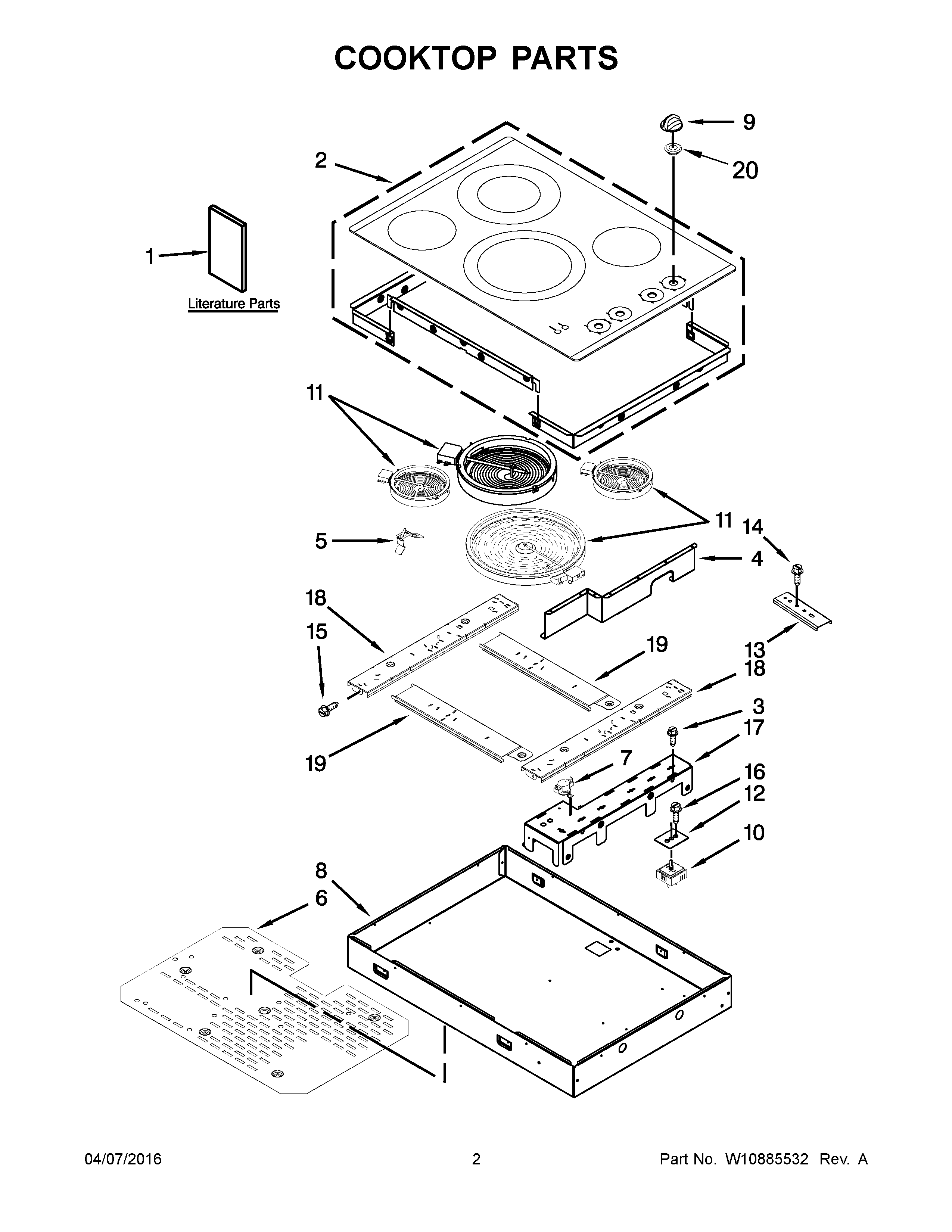

MEC9530BB01 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10742416
NI	MAY 8286642
NI	WIRING HARNESS PARTS, CONDUIT
NI	MAY W10324729
NI	SEAL, LIMITER
NI	MAY 7111P020-60
NI	MAY 8008P068-60
NI	INSULATION, CONTROL KNOB
NI	MAY W10316661
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10574205
1C	TIPS, SAFE COOKING (ENGLISH)
1B	MAY W10622708
1D	TIPS, SAFE COOKING (FRENCH)
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
1E	MAY W10488782
2	MAY W10570702
2A	MAY W10570703
3	SCREW
4	MAY W10311796
5	SPRING, ELEMENT
6	MAY W10422067
7	MAY W10464566
8	BOX-BURNER
9	MAY W10859808
10C	SWITCH, INFINITE (LEFT REAR)
10B	SWITCH, INFINITE (RIGHT REAR)
10	SWITCH, INFINITE (LEFT FRONT)
10A	SWITCH, INFINITE (RIGHT FRONT)
11A	ELEMENT (3000/1400W) (LEFT FRONT)
11	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11B	ELEMENT (LF), 3000W DUAL
12	MAY 3183956
13	MAY 4455917
14	MAY 3400093
15	MAY 7101P426- 60
16	SCREW
17	MAY W10484349
18	MAY W10457917
19	MAY W10311790
20	GROMMET (BLACK)
