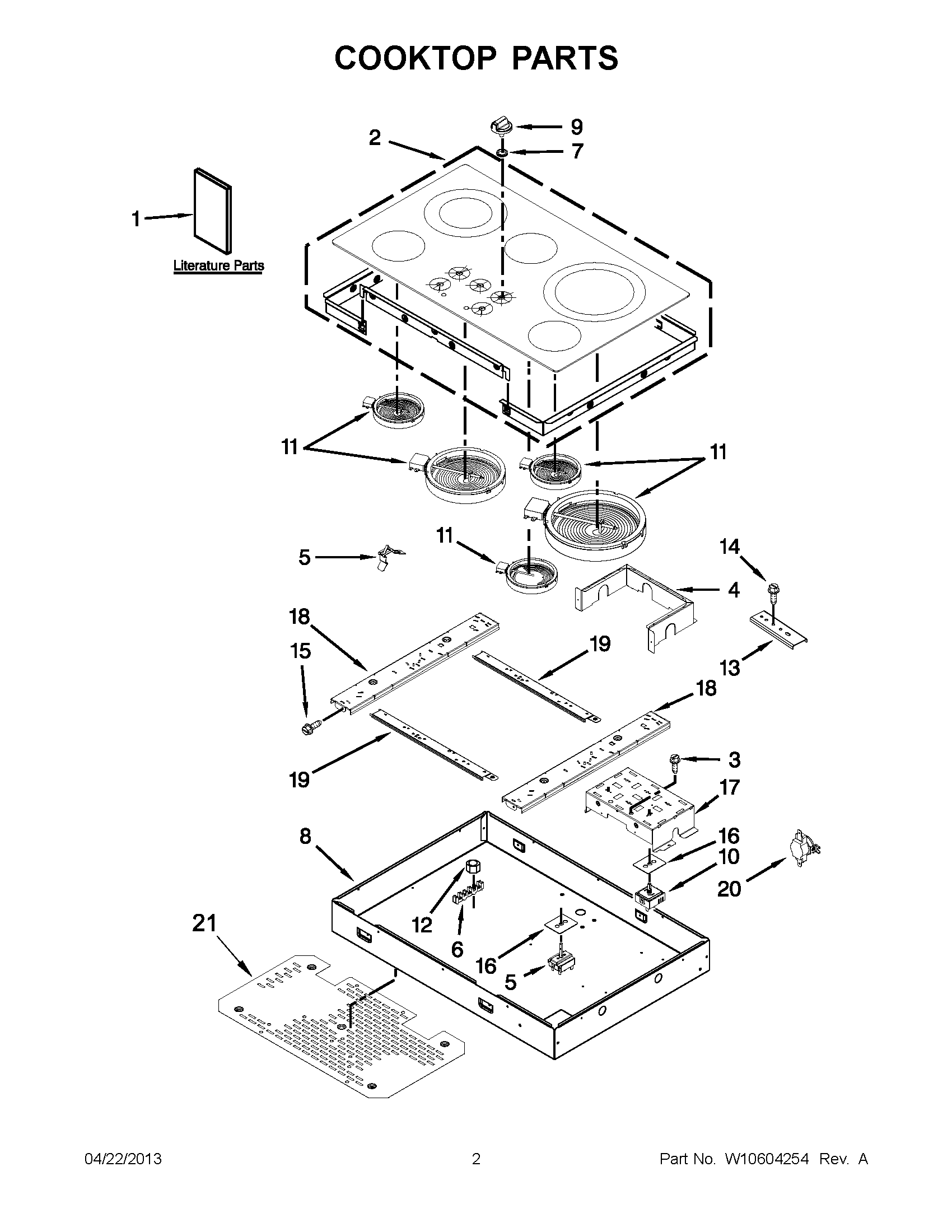

MEC9536BB00 01 – COOKTOP PARTS

MEC9536BB00 01 – COOKTOP PARTS

Written by

in

MEC9536BB00 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10488785
1MAY W10574205
1MAY W10550659
1INSTRUCTIONS, UNDERCOUNTER INSTALL
1TIPS, SAFE COOKING (FRENCH)
2MAY W10570705
2MAY W10570704
3SCREW
4MAY W10480494
5SPRING, ELEMENT
6MAY 7401P038-60
7GROMMET (BLACK)
8LINER (NOT A SERVICEABLE PART)
9KNOB (STAINLESS)
9KNOB (BLACK)
10SWITCH, INFINITE (RIGHT FRONT)
10SWITCH, INFINITE (RIGHT REAR)
10SWITCH, INFINITE (RIGHT FRONT)
11ELEMENT, SURFACE (700W) (RIGHT REAR)
11ELEMENT (LF), 3000W DUAL
11ELEMENT (3000/1400W) (LEFT FRONT)
11ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
12WP7103P027-60 Whirlpool Nut
13MAY 4455917
14MAY 3400093
15MAY 7101P426- 60
16MAY 3183956
17MAY W10291159
18MAY W10311788
19MAY W10311793
20MAY W10464566
21MAY W10422069
