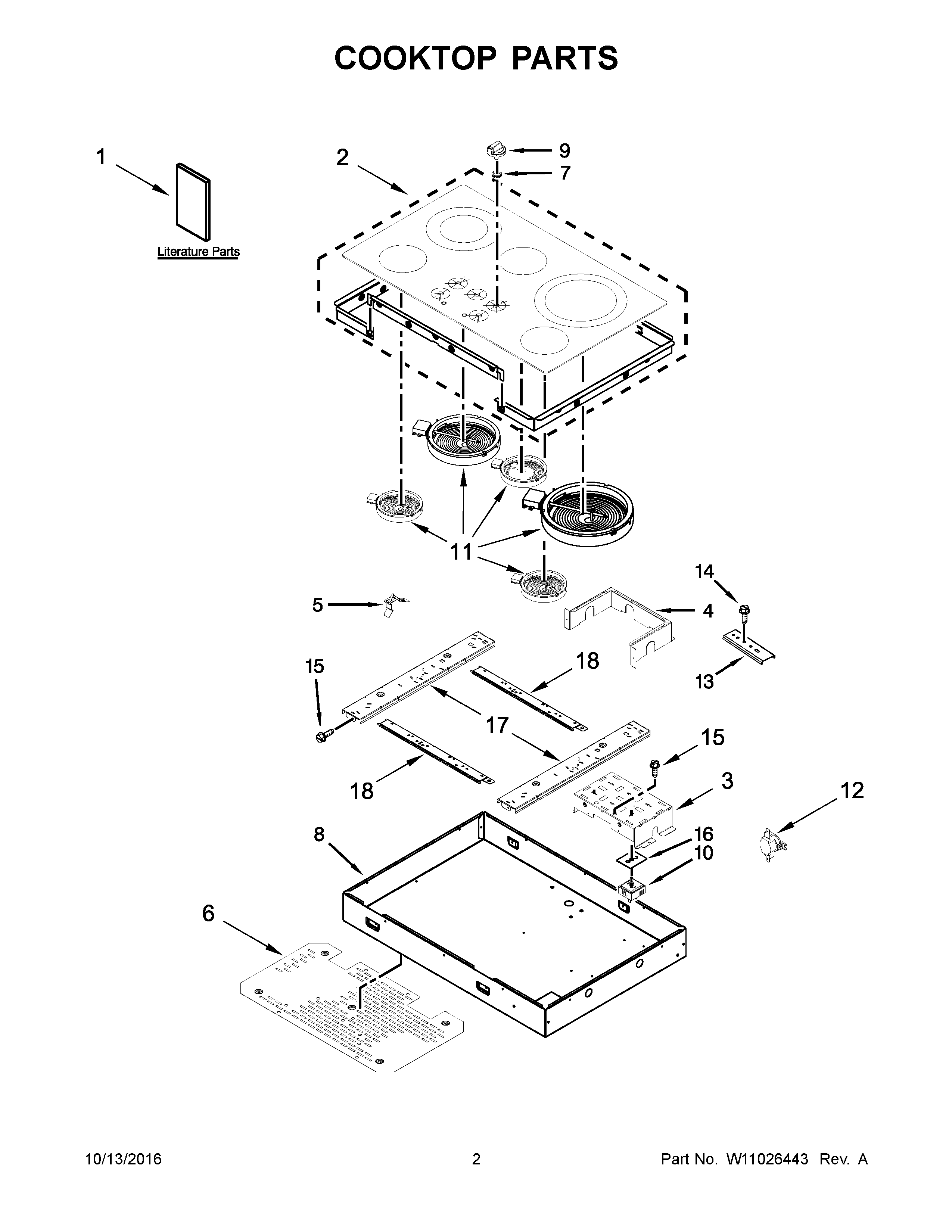

MEC9536BB03 02 – COOKTOP PARTSadmin2025-04-26T09:26:34+00:00MEC9536BB03 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W10316660 |
| NI | MAY 8008P068-60 |
| NI | MAY 8286642 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | SEAL, LIMITER |
| NI | WIRING HARNESS PARTS, CONDUIT |
| NI | MAY W10742417 |
| 1 | MAY W10574205 |
| 1B | MAY W10622708 |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 1D | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY W10570704 |
| 3 | MAY W10291159 |
| 4 | MAY W10480494 |
| 5 | SPRING, ELEMENT |
| 6 | MAY W10422069 |
| 7 | GROMMET (BLACK) |
| 9 | MAY W10895122 |
| 10A | SWITCH, INFINITE (RIGHT FRONT) |
| 10B | SWITCH, INFINITE (RIGHT FRONT) |
| 10 | SWITCH, INFINITE (RIGHT REAR) |
| 11A | ELEMENT (3000/1400W) (LEFT FRONT) |
| 11 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 11B | ELEMENT (3000W) (LEFT FRONT) |
| 11C | ELEMENT, SURFACE (700W) (RIGHT REAR) |
| 12 | MAY W10464566 |
| 13 | MAY 4455917 |
| 14 | MAY 3400093 |
| 15 | MAY 7101P426- 60 |
| 16 | MAY 3183956 |
| 17 | MAY W10311788 |
| 18 | MAY W10311793 |
