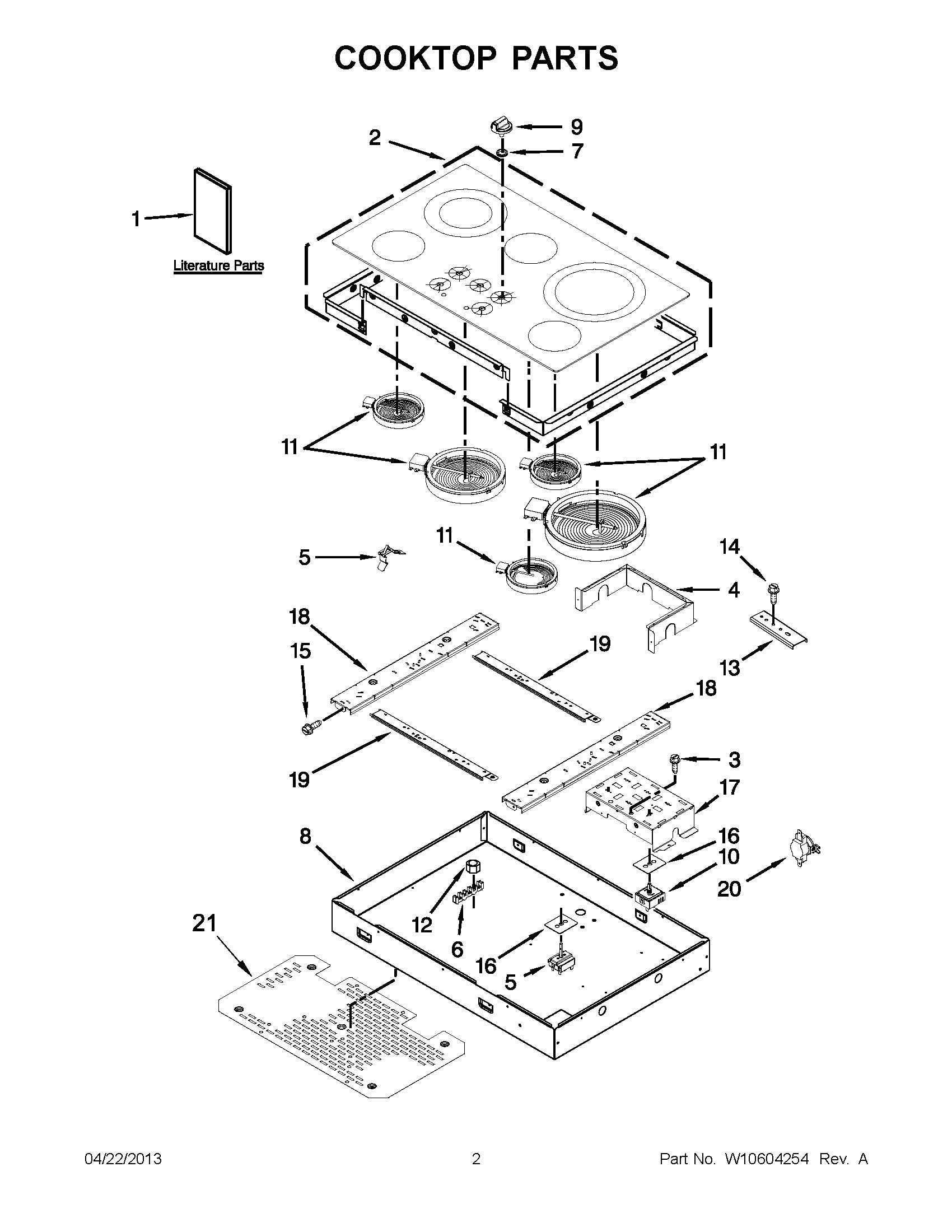

MEC9536BS00 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10488785
1	MAY W10574205
1	MAY W10550659
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	TIPS, SAFE COOKING (FRENCH)
2	MAY W10570705
2	MAY W10570704
3	SCREW
4	MAY W10480494
5	SPRING, ELEMENT
6	MAY 7401P038-60
7	GROMMET (BLACK)
8	LINER (NOT A SERVICEABLE PART)
9	KNOB (STAINLESS)
9	KNOB (BLACK)
10	SWITCH, INFINITE (RIGHT FRONT)
10	SWITCH, INFINITE (RIGHT REAR)
10	SWITCH, INFINITE (RIGHT FRONT)
11	ELEMENT, SURFACE (700W) (RIGHT REAR)
11	ELEMENT (LF), 3000W DUAL
11	ELEMENT (3000/1400W) (LEFT FRONT)
11	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
12	WP7103P027-60 Whirlpool Nut
13	MAY 4455917
14	MAY 3400093
15	MAY 7101P426- 60
16	MAY 3183956
17	MAY W10291159
18	MAY W10311788
19	MAY W10311793
20	MAY W10464566
21	MAY W10422069
