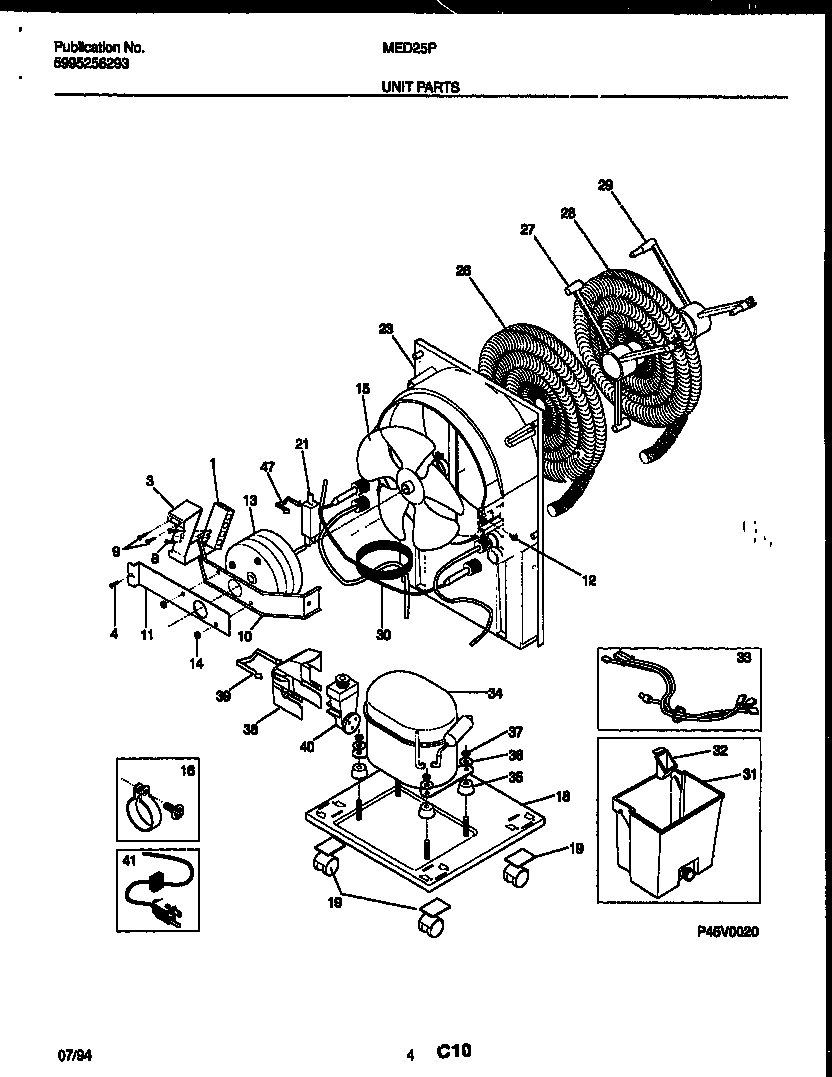

MED25P4 03 – UNIT PARTS

MED25P4 03 – UNIT PARTS

Written by

in

MED25P4 03 – UNIT PARTS

Products

PositionProduct
1WCI 5303296823
3BRACKET-CONTROL
4134178901 Frigidaire Screw
8WCI 5303007620
93201861 Frigidaire Screw
10WCI 5303296828
11WCI 5303296829
12WCI 3002801
13WCI 5303289838
14WCI 08007481
15FAN BLADE
16WCI 5303303699
18WCI 5303303502
19WCI 5303275278
21WCI 5308016437
23WCI 5303303501
26WCI 3017458
27CLAMP-EVAPORATOR INNER
28WCI 3017954
29CLAMP-EVAPORATOR OUTER
30CAPILLARY TUBE-CUT TO 25“
31WCI 08016458
32WCI 5303272520
33WCI 5303289837
34WCI 5303271878
35WCI 5303001777
36WASHER-COMPRESSOR
37NUT-COMPRESSOR
38COVER-TERMINAL
39STRAP-COVER
40WCI 5303003020
41CORD-POWER
47WCI 327100001
