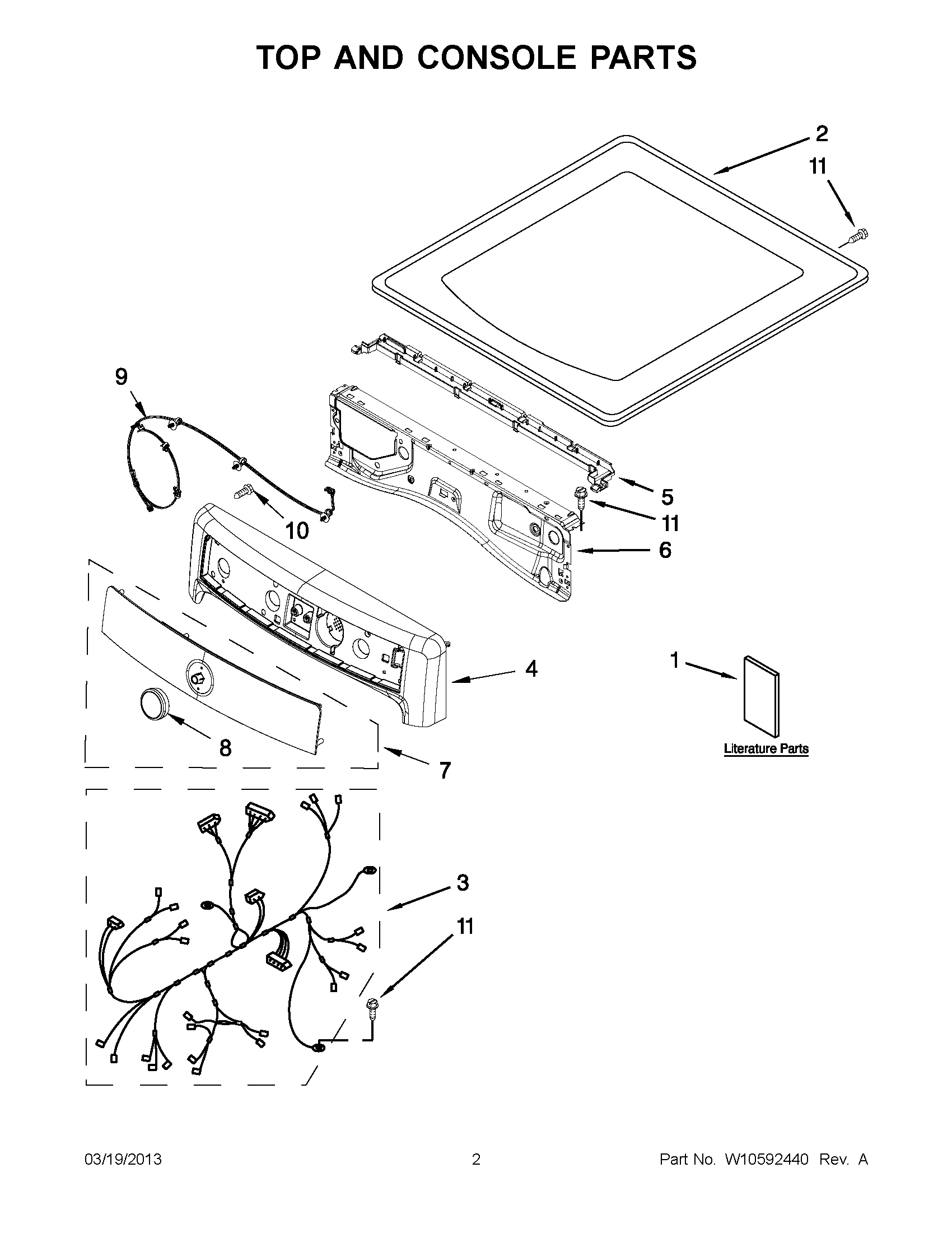

MED3000BW0 01 – TOP AND CONSOLE PARTS

MED3000BW0 01 – TOP AND CONSOLE PARTS

Written by

in

MED3000BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10558997
1MAY W10529646
1MAY W10492242
1MAY W10504444
2MAY W10208383
3HARNESS, WIRING (MAIN)
4MAY W10489583
5MAY W10259210
6MAY W10208198
7MAY W10491032
8MAY W10519048
9MAY W10540654
10MAY W10489172
11Screw
