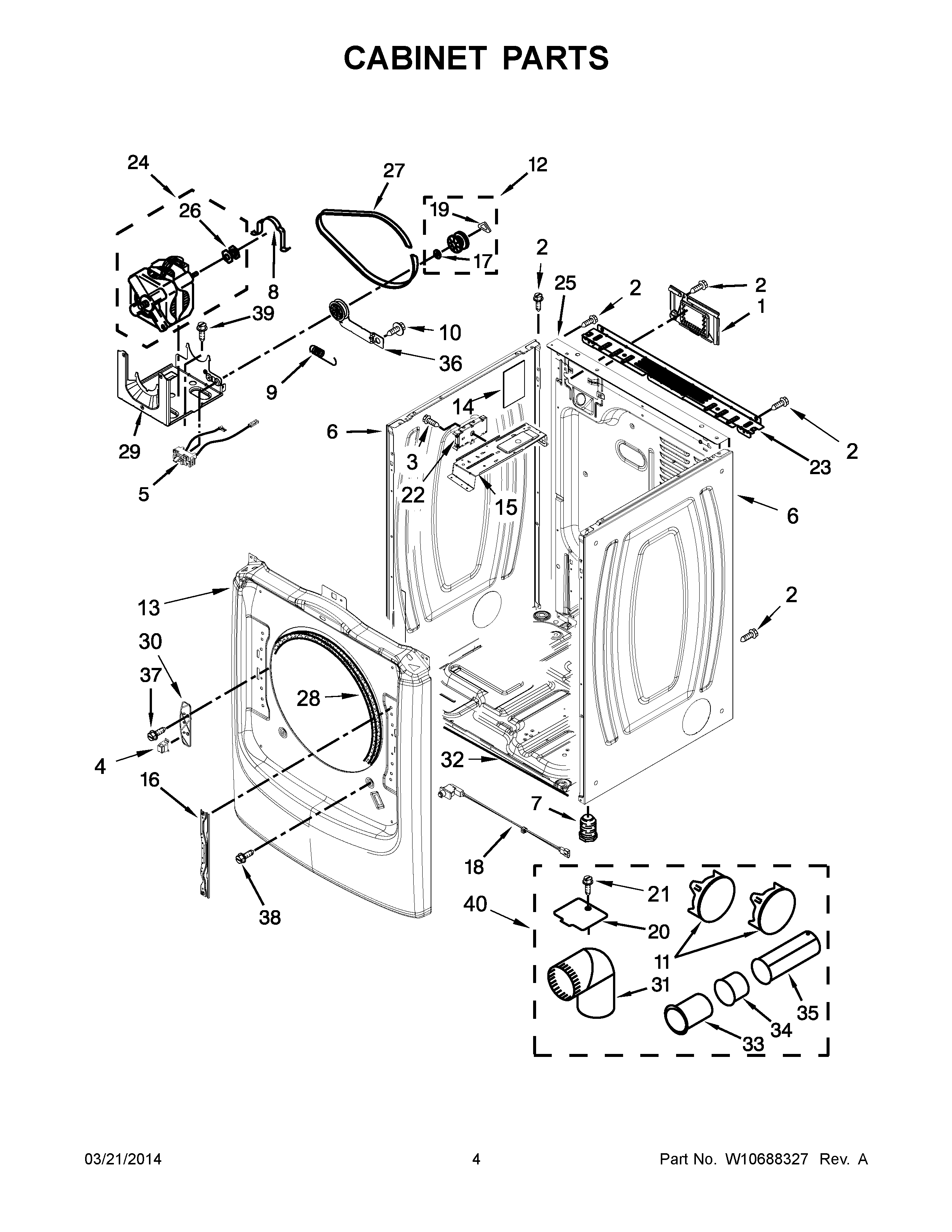

MED3100DW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	Screw
3	SCREW, 10-16 X 1/2
4	MAY W10208401
5	MAY W10411936
6	MAY W10468495
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	PLUG, MULTIVENT (MIDNIGHT GREY)
12	MAY W10468057
13	PANEL, FRONT (WHITE)
14	MAY W10504381
15	MAY W10259611
16	MAY W10315109
17	MAY W10121334
18	MAY W10569114
19	WASHER, TRI RING
20	MAY W10354249
21	SCREW
22	MAY W10249824
23	MAY W10208382
24	MAY W10620757
25	MAY W10487431
26	Pulley, Motor
27	MAY W10112954
28	MAY 3387242
29	MAY W10242878
30	MAY W10208250
31	MAY W10416072
32	MAY 8565046
33	PIPE, EXHAUST (MEDIUM)
34	PIPE, EXHAUST (SHORT)
35	PIPE, EXHAUST (LONG)
36	ASSEMBLY, IDLER
37	MAY W10288126
38	SCREW
39	SCREW
40	KIT, 4-WAY VENT
